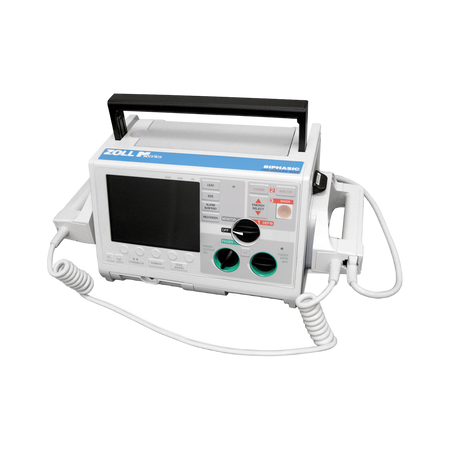

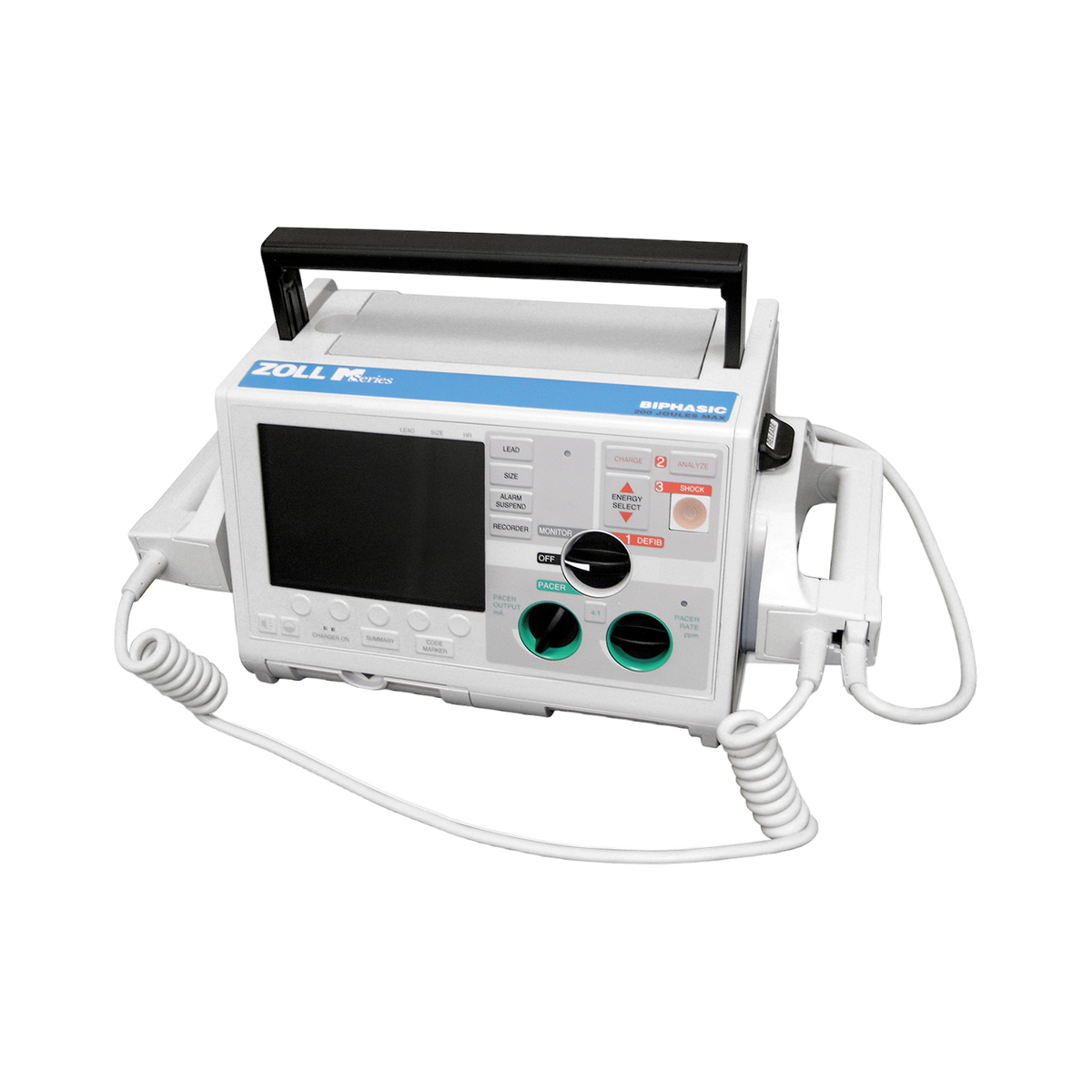

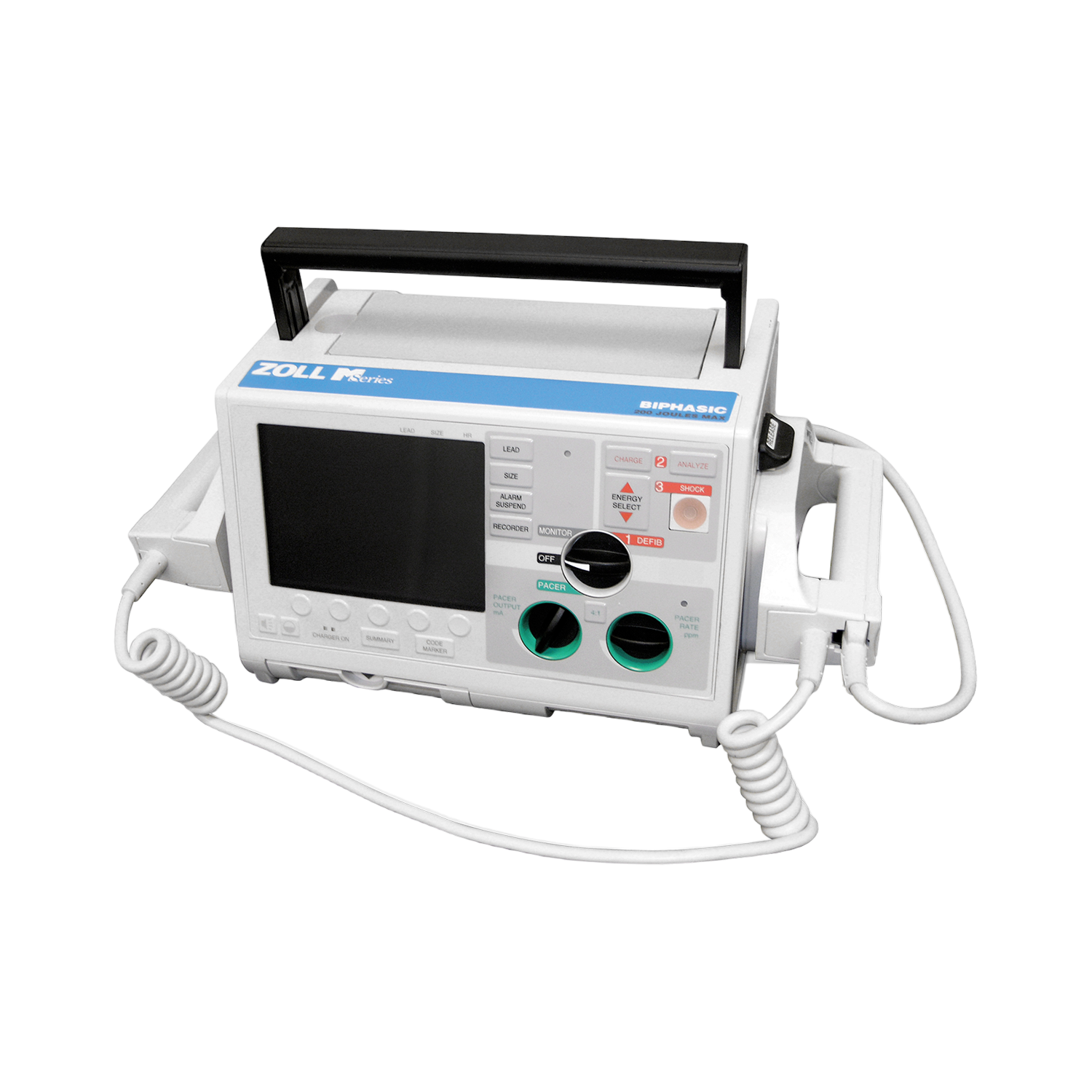

Zoll M Series Defibrillator

The Zoll M Series defibrillator integrates cutting-edge patient monitoring, noninvasive pacing, ECG display, and defibrillation capabilities with the convenience of printing and recording, all within a single device. This versatile Zoll defibrillator proves invaluable in various resuscitation scenarios, whether within a hospital environment or during emergency medical services (EMS) utilization. It offers the flexibility to function in manual, advisory, or semi-automated modes, catering to specific requirements.

The M Series Defibrillator by Zoll seamlessly integrates with the CPR-D-padz, enabling the utilization of Real CPR Help, a feature that provides valuable feedback to rescuers during cardiopulmonary resuscitation (CPR) procedures. To ensure comprehensive data collection, PCMCIA cards can be effortlessly installed to record ECG, voice data, and other essential system information for later review and archiving on a computer.

It is important to note that the Zoll M Series Defibrillator serves as the precursor to the M Series CCT version of Zoll Defibrillators.

FEATURES:

• Capability of delivering 360 joules of energy (200 joules for biphasic units.)
• Can be used in manual and semi-automatic defibrillation modes.
• CPR monitoring that provides visual and audio feedback to maintain compressions at the AHA/ERC recommended rate.
• External pacing with continuously variable current and pulses per minute.
• Vital signs trending including heart rate, SpO2, end-tidal CO2, respiration, and noninvasive systolic, diastolic, and mean blood pressure.
• 3, 5, or 12-lead ECG analysis.


SPECIFICATIONS:

• Manufacturer: ZOLL
• Part Number (OEM):
• Category: Defibrillators/Pacemakers
• Accessories: None

• Functional Condition: Refurbished
• Cosmetic Condition: Good
• Warranty: 90 Days


• Dimensions:
• Height: 6.8” (17.3 cm)
• Width: 10.3” (26.2 cm)
• Depth: 8.2” (20.8 cm)
• Weight: 13.5lb (6.14 kg)


• Power:
• AC Power: 100-120 ~ 50/60 Hz, 220-240 ~ 50 Hz, 220 VA
• DC Input (Optional): 10-29 V. 130 W


• Battery (PD 4410):
• Type: Rechargeable, Sealed Lead Acid
• Weight: 2.2lbs (1 kg)
• Voltage: 2V/cell; 5 cells wired in series
• Recharge Time: 4 hours or less with integral charger
• Operating Time: For a new, fully charged battery pack at 20 °C: 35 defibrillator discharges at maximum energy (360 J), or 2.75 hours of continuous ECG monitoring, or 2.25 hours of continuous ECG monitoring/pacing at 60 mA, 80 beats/min.


• Battery (XL Battery):
• Type: Rechargeable, Sealed Lead Acid
• Weight: 3.7lbs (1.7 kg)
• Voltage: 2V/cell; 5 cells wired in series
• Recharge Time: 7.2 hours or less with integral charger
• Operating Time: For a new, fully charged battery pack at 20 °C: 60 defibrillator discharges at maximum energy (360 J), or 4 hours of continuous ECG monitoring, or 3.25 hours of continuous ECG monitoring/pacing at 60 mA, 80 beats/min.


• Pacemaker:
• Type: VVI demand; asynchronous (fixed rate) when used without ECG leads or in ASYNC pacing mode.
• Pulse Type: Rectilinear, constant current.
• Pulse Shape and Duration: Rectilinear, 40 milliseconds ±2 milliseconds
• Pulse Amplitude: Variable 0 mA to 140 mA ±5% or 5 mA, whichever is greater. Digitally displayed on the monitor (increments or decrements by a value of 2 mA).
• Pacing Rate: Variable from 30 ppm to 180 ppm ±1.5% (increments or decrements by a value of 2 ppm).
• Output protection: Fully defibrillator protected and isolated
• Multi-Function Electrode (MFE) Pads: Specifically designed adult anterior-posterior pre-gelled ZOLL MFE Pads, and Multi-Function Stat-padz packaged in pairs.


• Defibrillator:
• Waveform: Dampened sinusoid.
• Patient Impedance Range: Minimum: 15 oms; Maximum: 250 ohms; Internal paddle range: 7 - 250 ohms
• Synchronized Mode: Synchronizes defibrillator pulse to patient’s R-wave. 60ms maximum time delay between sync pulse and delivery of energy.
• Paddles: Standard anterior/posterior adult and pediatric. Adult paddles slide off to expose pediatric paddles.
• Defibrillation Advisory: Evaluate electrode connection and patient ECG to determine if defibrillation is required.
• Multi-Function Electrode Impedance Measurement Accuracy: 0 ohms - 250 ohms ±10% or 5 ohms, whichever is greater.


• ECG Monitoring:
• Patient Connection: 3, 5, or 12-lead ECG cable, paddles, or MFE Pads.
• ECG Size: 0.5, 1, 1.5, 2, 3 cm/mV - display on monitor
• Heart Rate Range: 30 - 300 bpm
• Heart Rate Accuracy: ±5%
• Input Protection: Fully defibrillator protected. A special circuit prevents distortion of ECG by pacer pulse.
• Vital Signs Trends: Heart rate, SpO2, end-tidal CO2, respiration rate, and noninvasive systolic, diastolic, and mean blood pressure values.


• CPR Monitoring:
• Compression Depth: 0.75 to 3 inches ±0.25 inches (1.9 to 7.6 cm ±0.6 cm)
• Compression Rate: 50 to 150 compressions per minute


• Display:
• Screen Type: High resolution, electroluminescent or liquid crystal display (LCD)
• Screen Size: 5.66 inches (14.4 cm) diagonally (EL Display)
• Sweep Speed: 25 mm/sec, 50 mm/sec (configurable for 12-lead ECG recording)
• Viewing Time: 4 seconds


• Recorder:
• Paper: 80 mm thermal (grid width) 90 mm (paper width)
• Speed: 25 mm/sec (configurable for 12-lead ECG printing at 50 mm/sec)
• Delay: 6 seconds
• Printing Method: High resolution, thermal array printhead.
• Print-out Modes: Manual or automatic — user-configurable.
• On/Off Control: Front panel and paddle.
• Automatic Function: 15-second recording initiated by alarm activation or defibrillator discharge


• PCMCIA Card:
• Capacity: Standard series II flash card - 1 megabyte to 16 megabytes
• Audio Recording: Digital compressed audio data
