Home » Stryker 4701 (LD304) Birthing Bed
Stryker

Stryker 4701 (LD304) Birthing Bed

SKU: EN-STRYKER-4701
(0)
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

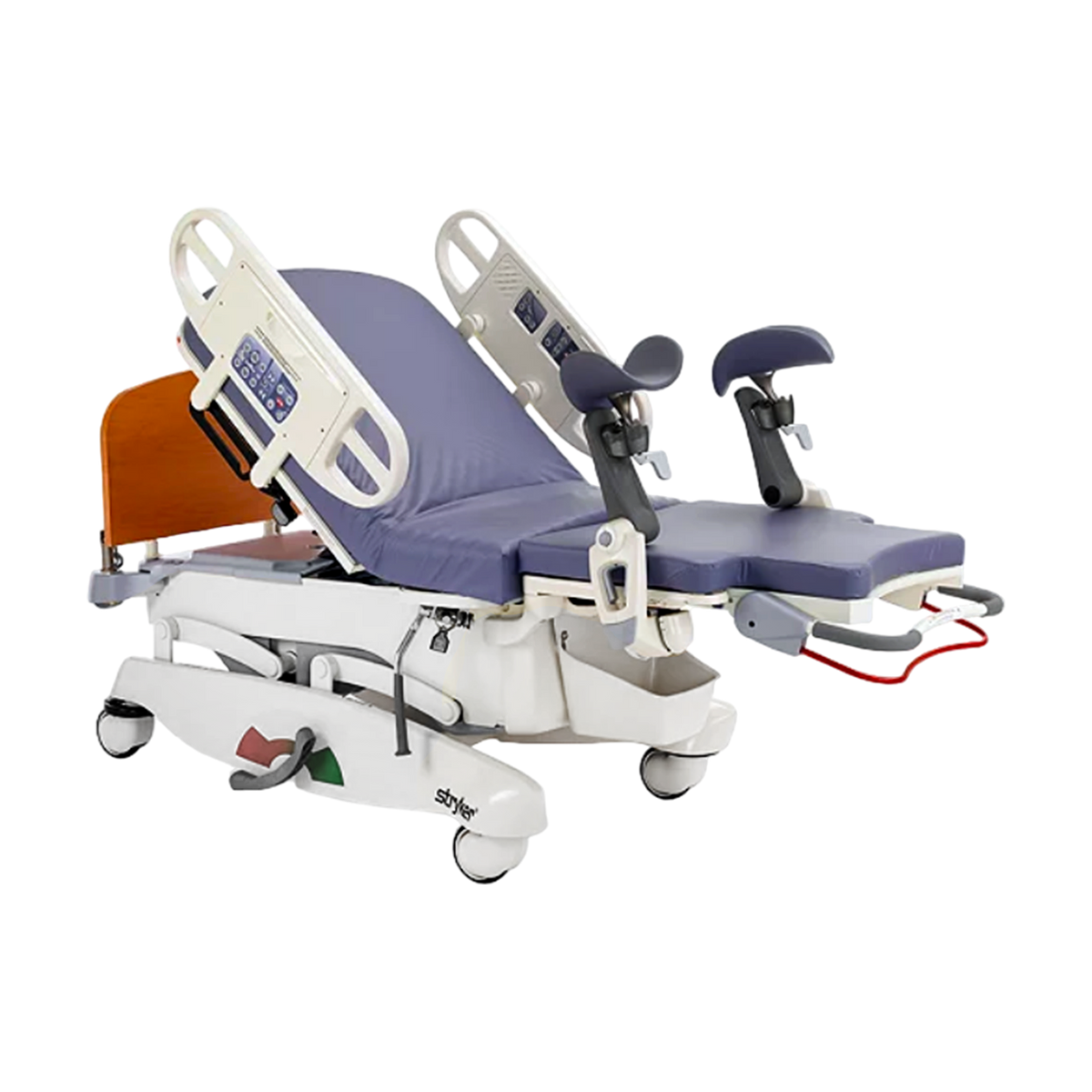

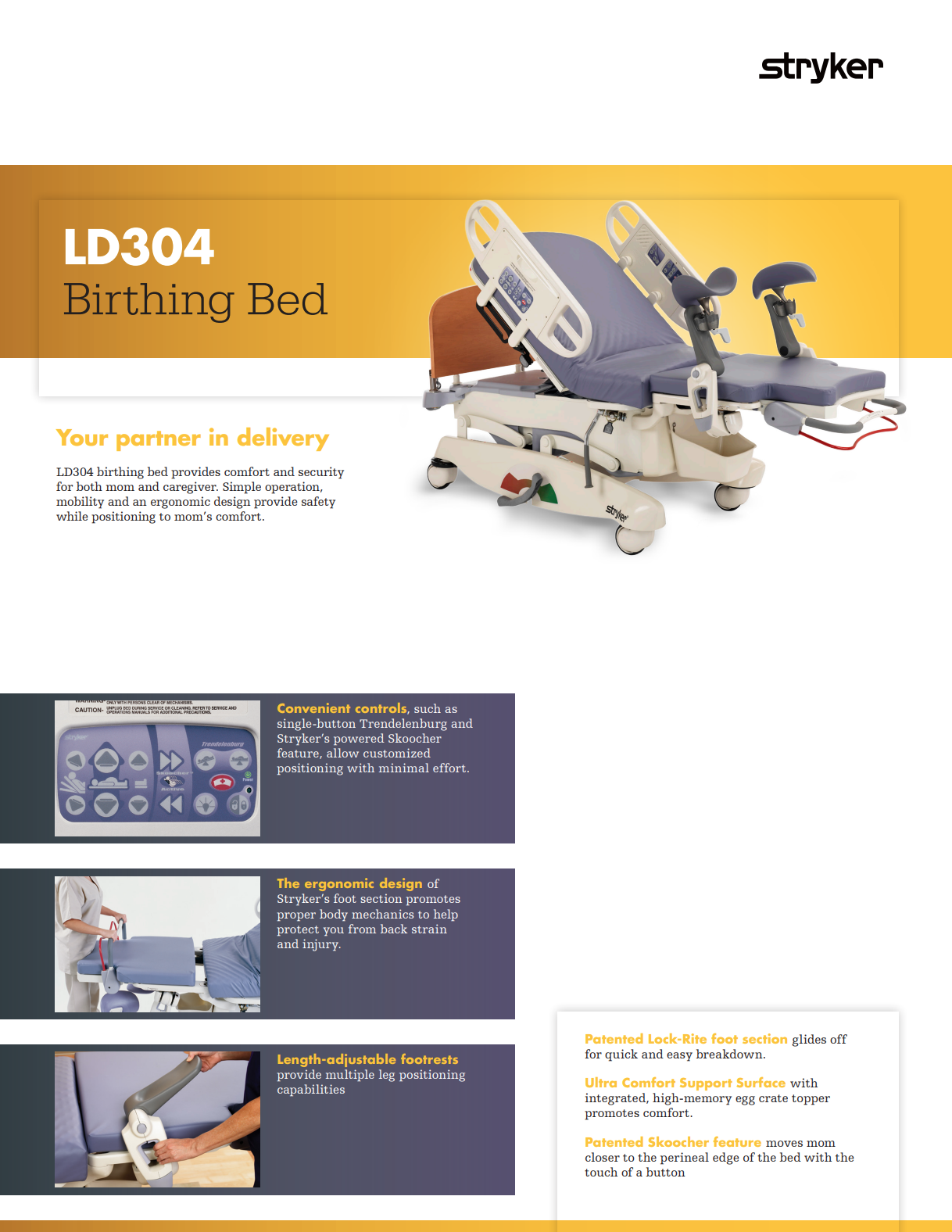

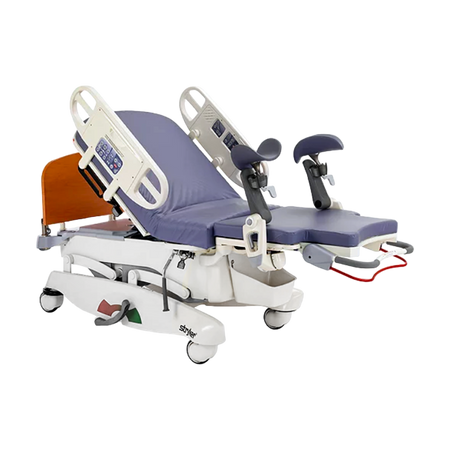

The Stryker LD304 Birthing Bed is designed to provide comfort and security for both the mother and caregivers during labor and delivery. This birthing bed offers several features and benefits:

  • Simple Operation & Mobility: The LD304 is easy to operate and move, ensuring convenience and safety for both the mother and caregivers.
  • Ergonomic Design: The bed's foot section promotes proper body mechanics, helping to prevent caregiver back strain or injury.
  • Patented Skoocher Feature: This feature moves the patient or mother closer to the perineal edge of the bed with the touch of a button, providing optimal positioning during labor.
  • Convenient Controls: Single-button Trendelenburg and the powered Skoocher feature allow for customized positioning with minimal effort.
  • Ultra-Comfort Mattress: The bed features an ultra-comfort mattress with an integrated, high-memory egg crate topper, promoting comfort for the mother.
  • Length-Adjustable Footrests: These footrests provide multiple leg positioning capabilities for the mother.

The Stryker LD304 Birthing Bed is a secure and comfortable option for mothers and caregivers, offering simple operation, mobility, and ergonomic features that cater to the needs of both parties during labor and delivery.

FEATURES:

  • Lock-Rite slide-off foot section
  • Lightweight, self-standing foot section
  • Glideaway foot supports with six-way adjustability
  • Single-button Trend.
  • Three-position side rails
  • In-rail motion controls with lockout
  • 17.5-inch (44 cm) low bed height
  • 5-inch (13 cm) Ultra Comfort head and a seat support surface
  • 3-inch (8 cm) foot mattress
  • 6-inch (15 cm) Omni Surface casters with wheel covers
  • Locking-caster steering
  • Four-wheel, steel-ring brake system with centrally located activation pedal
  • 33-inch (84 cm) mattress width with four motor functions (head, bed, foot, Trend.)
  • Automatic pelvic tilt
  • CPR release
  • Manual backup
  • Self-storing labor grips
  • Plastic fluid basin
  • Under-bed night light
  • Wood headboard
  • Permanent folding three-stage IV pole

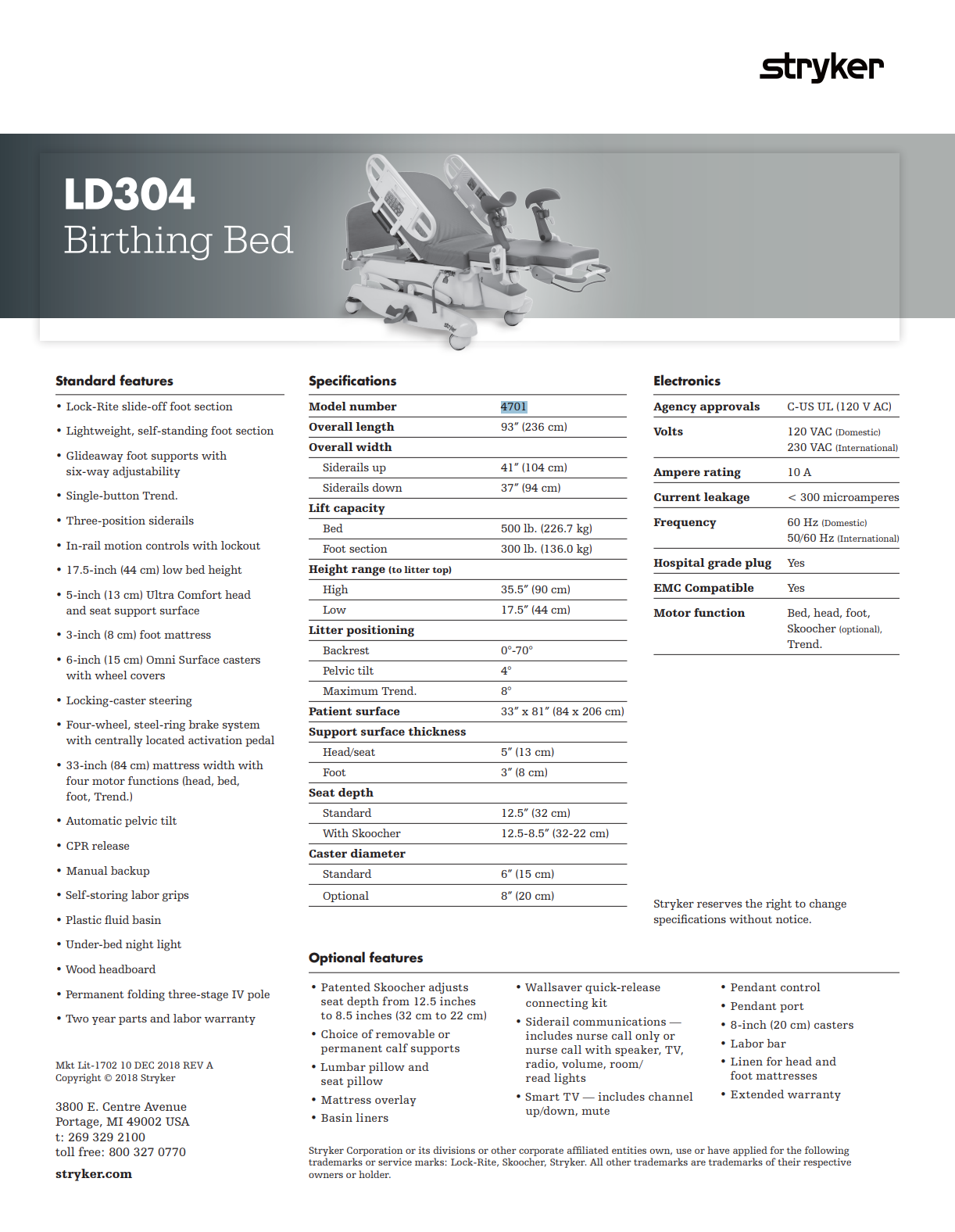

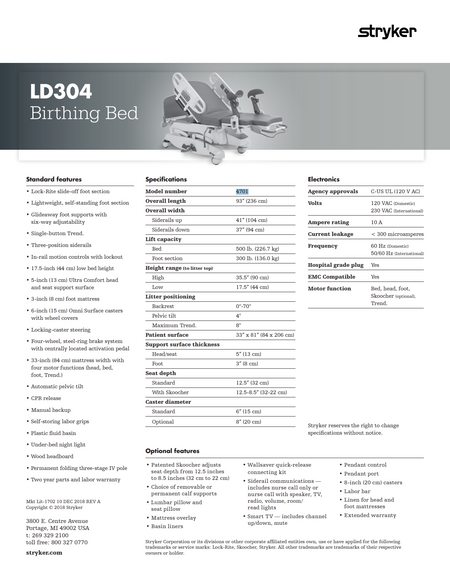

SPECIFICATIONS:

  • Manufacturer: Stryker
  • Part Number (OEM): 4701 (LD304)
  • Category: Birthing Beds
    • Accessories:
      • None
  • Functional Condition: Refurbished
  • Cosmetic Condition: Good
    • Paint Wear
    • Scratches
    • NEW Mattress (INCLUDED)
  • Warranty: 30 Days

  • Dimesions:
    • Overall Length:
      • 93” (236 cm)
    • Overall Width:
      • Siderails: Up 41” (104 cm)
      • Siderails: Down 37” (94 cm)

  • Lift Capacity:
    • Bed: 500 lbs (228 cm)
    • Head Section: 250lbs (114 cm)
    • Foot Section: 300lbs (136 cm)

  • Height Range (To Litter Top):
    • High: 35.5" (90 cm)
    • Low: 17.5" (44 cm)

  • Litter Positioning:
    • Backrest: 0° – 70°
    • Pelvic Tilt: 4°
    • Maximum Trend

  • Patient Surface:
    • 33" x 81" (84cm x 206 cm)

  • Mattress Thickness:
    • Head/Seat: 5" (13 cm)
    • Foot: 3" (8cm)

  • Seat Depth:
    • Standard: 12.5" (32 cm)
    • w/ Skoocher: 2.5" - 8.5" (32 - 22cm)

  • Caster Diameter:
    • Standard: 6" (15 cm)
    • Optional: 18" (20cm)
