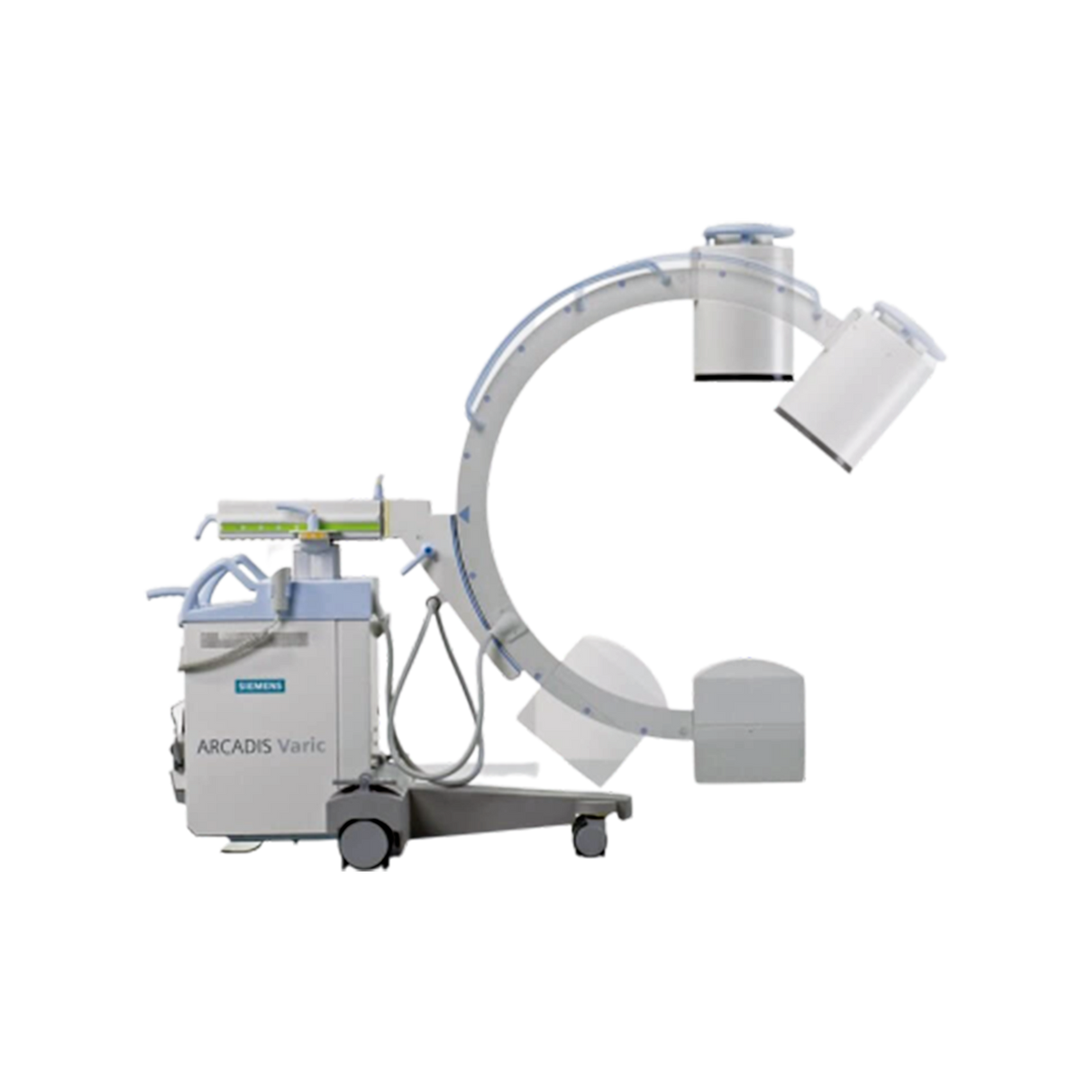

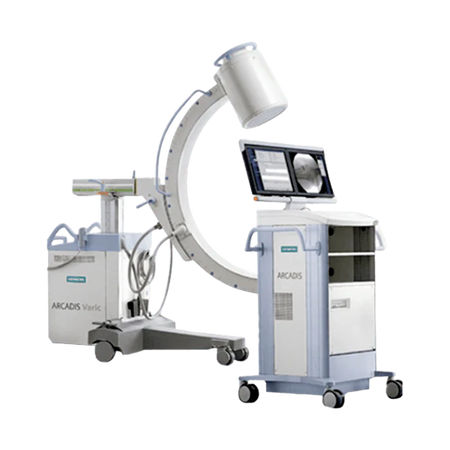

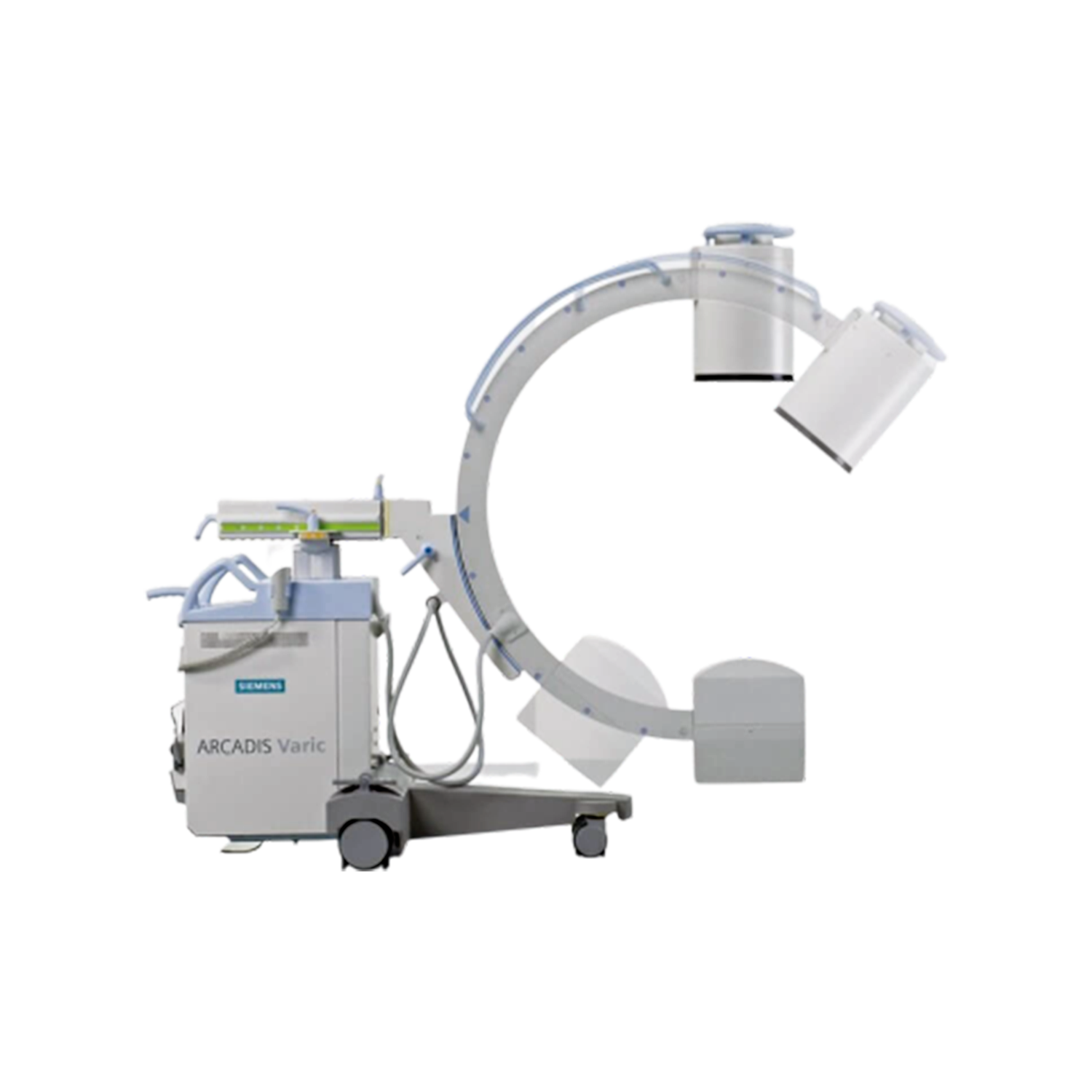

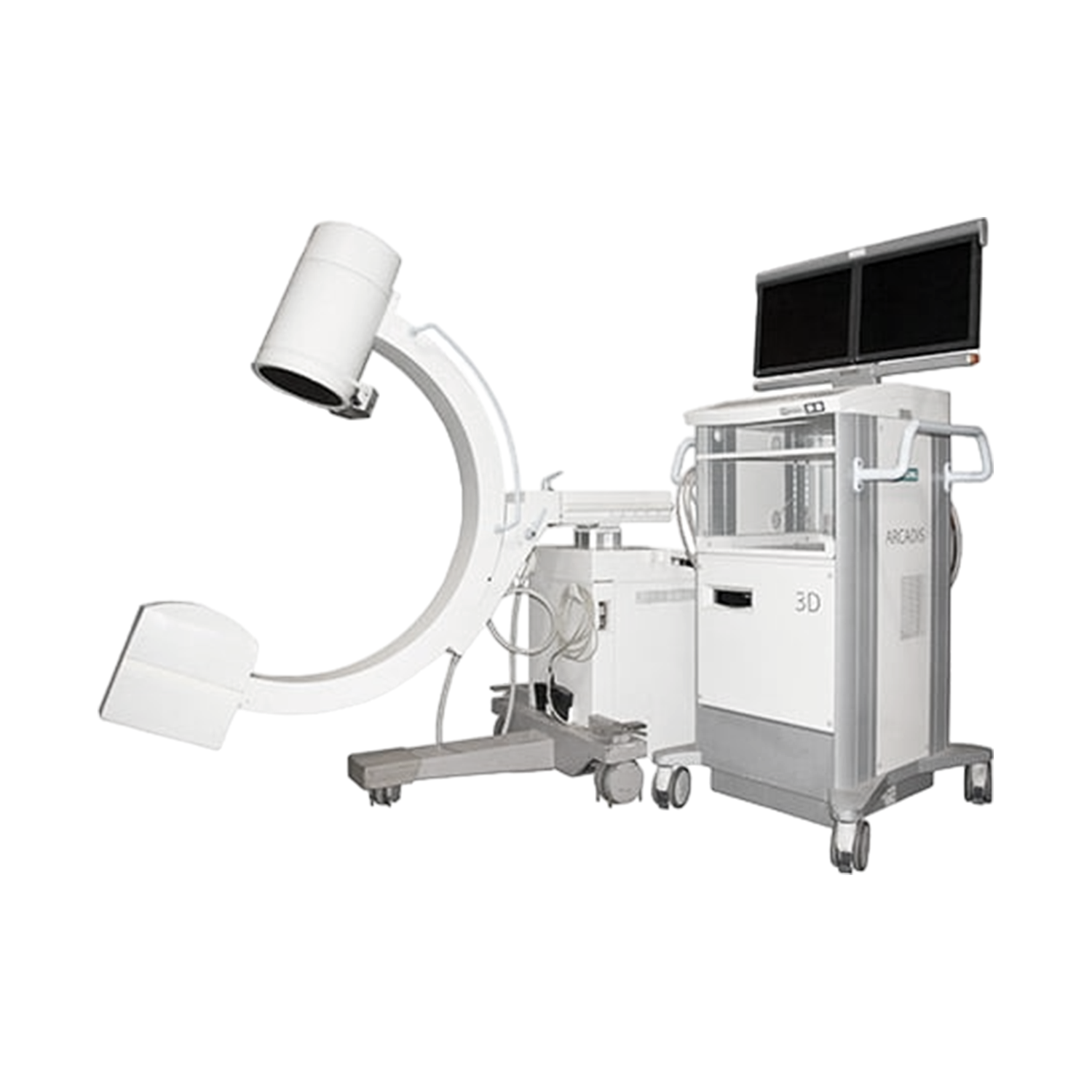

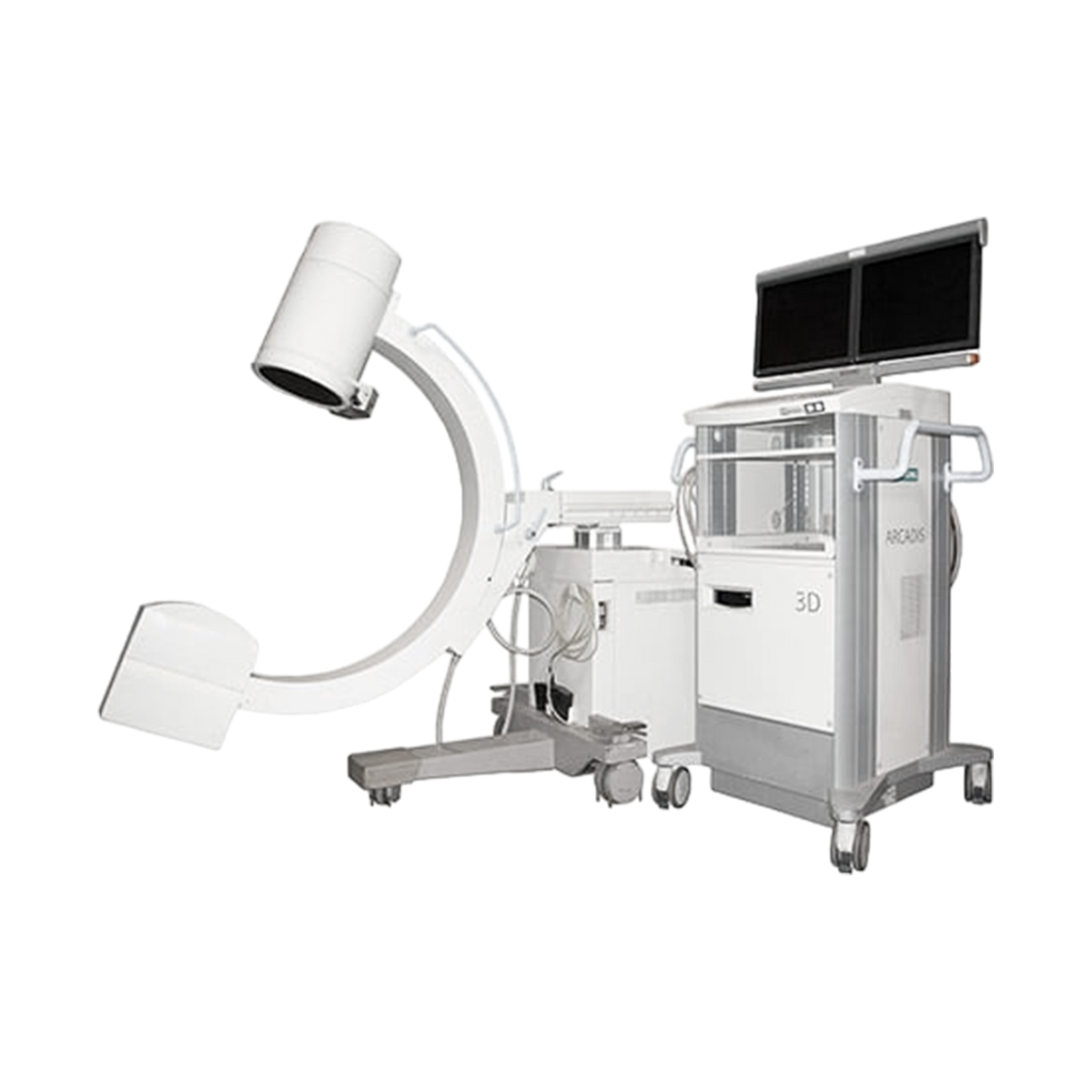

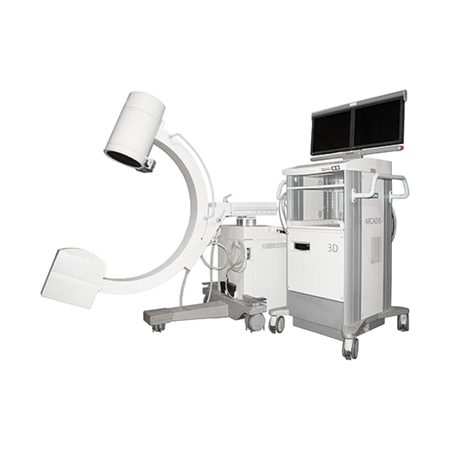

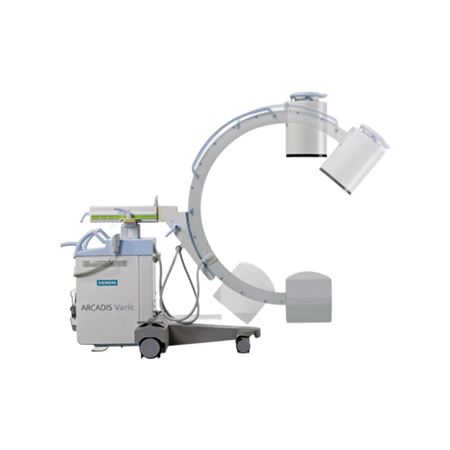

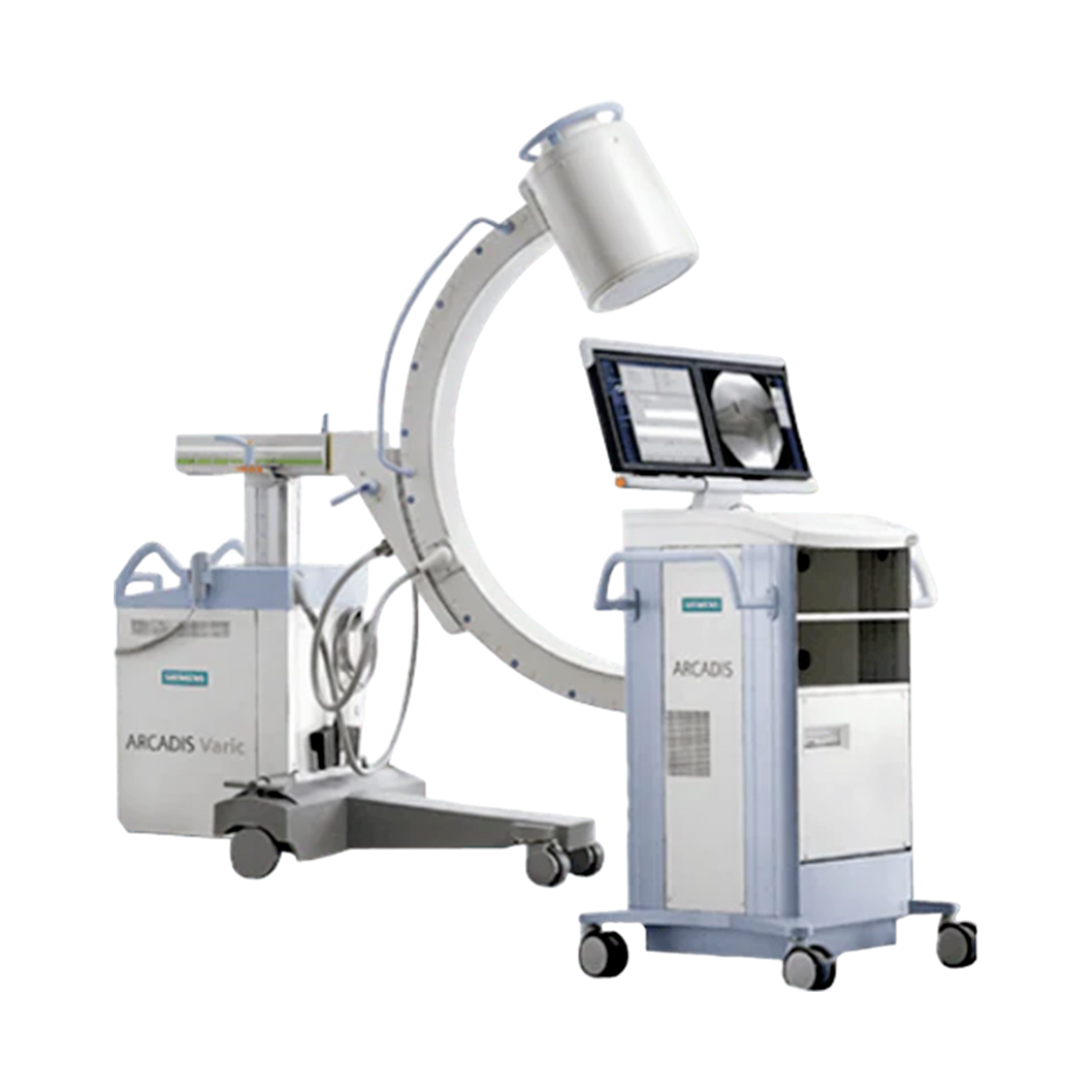

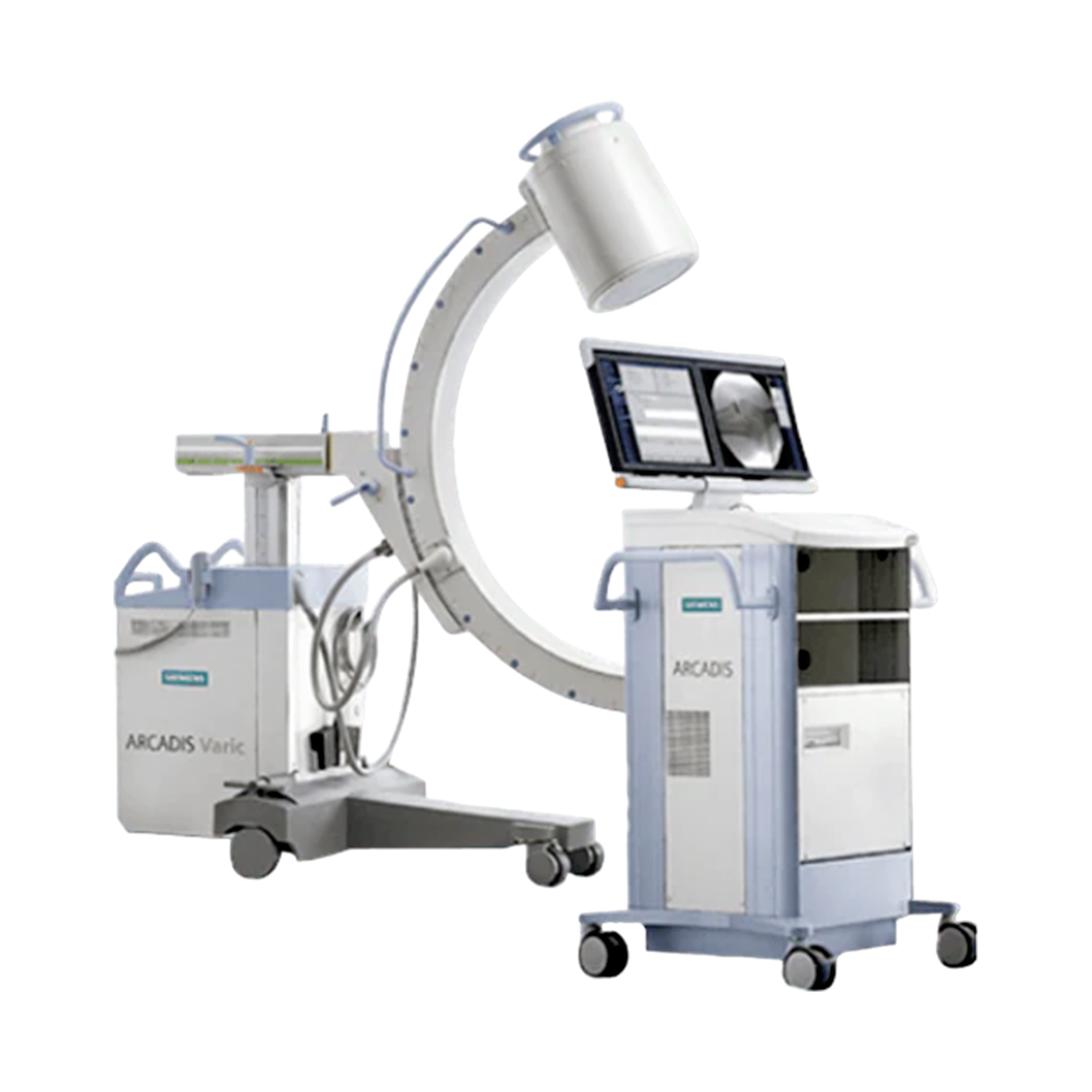

Siemens Arcadis Varic C-Arm System

The Siemens Arcadis Varic C-Arm is a sophisticated medical imaging device renowned for its exceptional image quality and innovative solutions. This C-arm system offers fully digital 1K resolution images, ensuring clear and precise imaging during procedures. Equipped with an Enhanced Acquisition System, it allows for control over dose, contrast, and x-ray brightness.

The system features the Navilink 2D interface for transferring 2D images in high resolution. With a compact design and 180-degree rotation capability, the Arcadis Varic provides flexibility in positioning and patient access. Its user-friendly operation, optimized clinical workflow, and comprehensive connectivity make it a valuable asset in various medical fields such as vascular surgery, trauma surgery, urology, and orthopedics.

Additionally, the C-arm system includes dose-saving features like radiation-free collimation and multi-level dose control for enhanced safety. Overall, the Siemens Arcadis Varic C-Arm stands out for its outstanding image quality, ease of operation, optimized workflow, and advanced features that cater to demanding applications in the medical field.

FEATURES:

The Siemens Arcadis Varic C-Arm is distinguished by several unique features that set it apart in the medical imaging field.

• Precise Imaging and Perfect Visualization:
  • The system offers exceptional image quality and visualization capabilities, ensuring clarity and accuracy in medical imaging procedures.
• Easiest Operation:
  • Designed for user-friendly operation, the Arcadis Varic C-Arm simplifies the imaging process for healthcare professionals.
• Improved Clinical Workflow:
  • The system enhances workflow efficiency, streamlining processes and optimizing clinical practices.
• Maximum Flexibility in Data Handling:
  • It provides flexibility in managing data, allowing for efficient handling and storage of imaging information.
• Truly Digital Navigation with NaviLink 2D:
  • Incorporates advanced digital navigation technology for seamless operation and image transfer.
• High Performance for Demanding Applications:
  • The system delivers high performance suitable for a wide range of demanding medical applications.
• Making Acquisition a Snap with EASY:
  • Features like the Enhanced Acquisition System make acquiring images straightforward and efficient.
• Uncompromising Performance in Visualization:
  • Ensures top-notch visualization quality, crucial for accurate medical assessments.
• Straightforward Operation Right from the Start:
  • Offers ease of use from the initial setup, promoting efficient operation

These unique features collectively make the Siemens Arcadis Varic C-Arm a standout choice for medical professionals seeking advanced imaging solutions with enhanced functionality and performance.

SPECIFICATIONS:

• Manufacturer: SIEMENS
• Part Number (OEM): ARCADIS VARIC
• Category: Imaging
• Accessories: None
• Functional Condition: New/Refurbished
• Cosmetic Condition: Good
• Warranty: 30 Days


• Dimensions:
  • Height: 68 in (173 cm)
  • Width: 32 in (81 cm)
  • Depth: 68 in (173 cm)
  • Weight: 236 (520) chassis, 180 (395) monitor cart
  • Orbital Movement: 130° (-40° to +90°)
  • Angulation: ±190°
  • Horizontal Movement: 20 cm
  • Immersion Depth: 73 cm
  • Swivel Range: ±12.5°
  • Vertical Travel


• C-Arm:
  • Reverse position (C-ARM): Yes
  • Rotation (C-ARM): 130 (+90/-40)
  • Depth, cm (in) (PA GANTRY): 73 (29)
  • Free space, cm (in) (C-ARM): 78 (31)
  • Vertical movement, cm (in) (RADIATION DETECTOR): 40 (15.7) motorized
  • Horizontal travel, cm (in) (C-ARM): 20 (7.9)
  • Panning movement (C-ARM): 12.5
  • Pivot rotation, (C-ARM): 190
  • DICOM COMPATIBLE (Focal spot size, mm): Yes


• Gernerator:
  • Power rating, kw @ 100 kvp (X-RAY GENERATOR): 2.3
  • mAs RANGE (X-RAY TUBE): 1-150 in 23 steps
  • Snapshot function (MONITOR): 0.2-23 mA
  • Kv range (X-RAY GENERATOR): 40
  • Ma range (IMAGING SYSTEM): 0.2-23
  • Kv range (X-RAY GENERATOR): 40
  • EXPOSURE TIME, sec (MICROMANIPULATORS): .5-10
  • Pulsed fluoroscopy (X-RAY GENERATOR): Yes
  • Abs control (MONITOR): Exposure, TV iris, camera gain
  • Aec (X-RAY GENERATOR): mAs
  • Pulses per sec (MONITOR): Up to 15s


• Additional Specifications:
  • Fully digital 1K resolution images for crisp imaging
  • Equipped with an Enhanced Acquisition System for dose, contrast, and brightness control
  • Navilink 2D interface for transferring high-resolution 2D images
  • Compact design with 180-degree rotation and horizontally adjustable monitors

In addition, please acknowledge the following disclaimer:

* IMPORTANT - PLEASE READ BEFORE PURCHASING! * All pictures of items being sold are used for reference purposes and are described as accurately as possible. If there is an error in a listing, we will try and resolve any issues to the best of our abilities that may arise before or after a sale. Complete units all come with a power cord and DO NOT come with any cables, sensors, manuals, accessories etc. unless otherwise noted in the description.

Purchaser agrees that seller is not liable for any injuries or damages of any kind associated in any way with this equipment. Purchaser agrees to indemnify and hold harmless seller and seller's officers, directors, employees, agents, and shareholders against any and all claims, liabilities, obligations, demands, cost and expenses of every kind and nature, including but not limited to attorney's fees and litigation expenses, from or related to the equipment and any use thereof.

* NOTE - FDA Regulation and Certification: "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
