Philips HeartStart FR2+ AED Defibrillator

SKU: EN-PH-HEARTSTART-FR2+
(0)
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

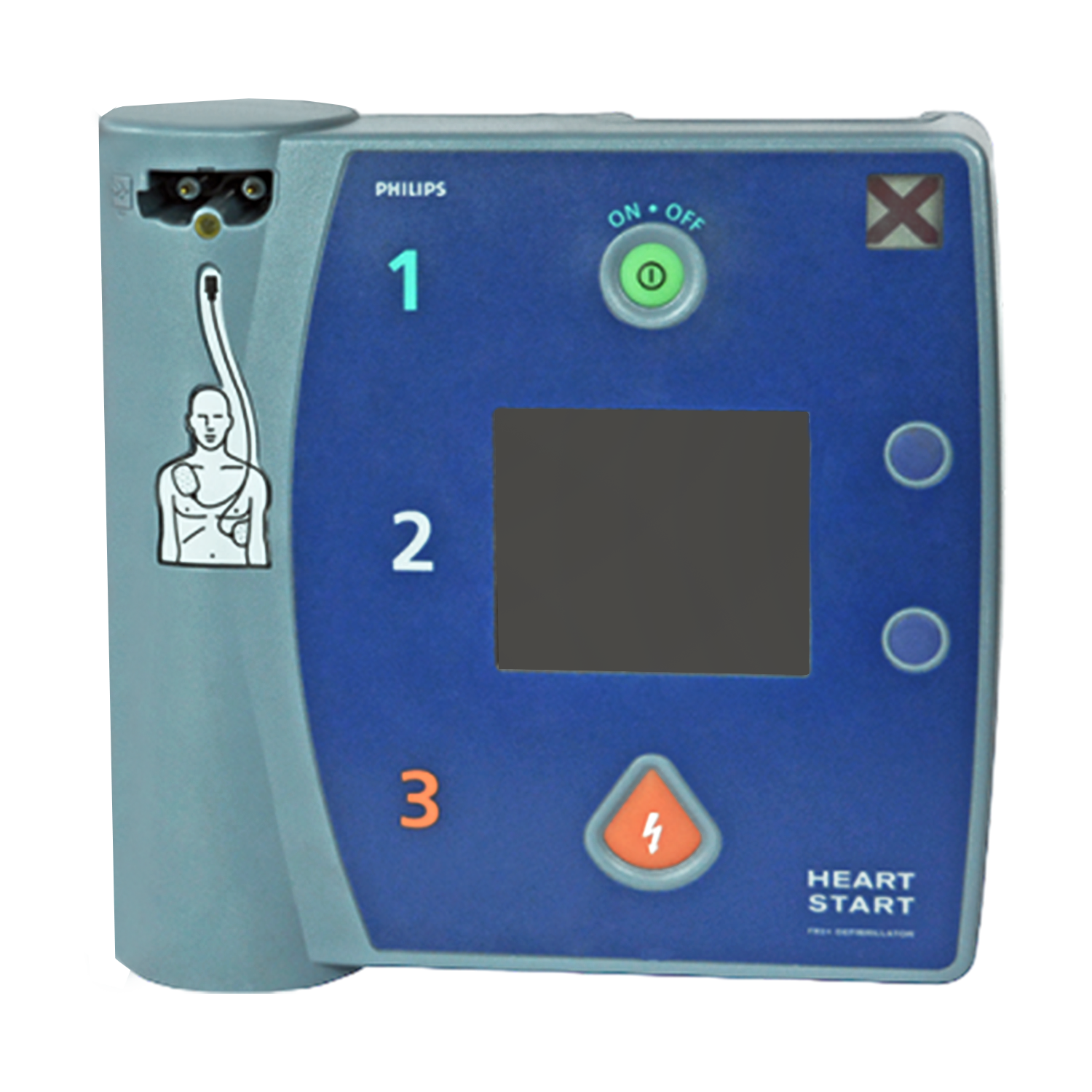

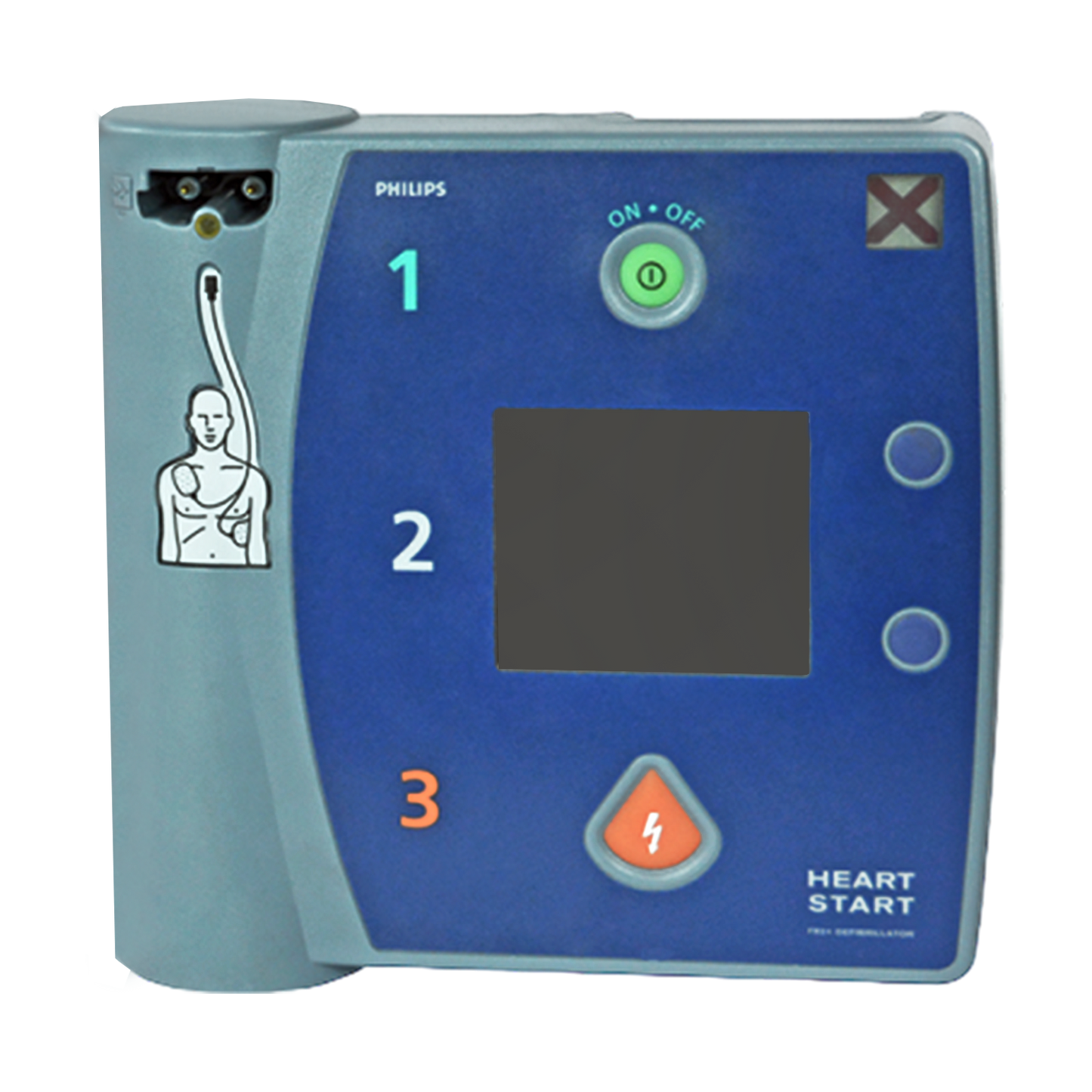

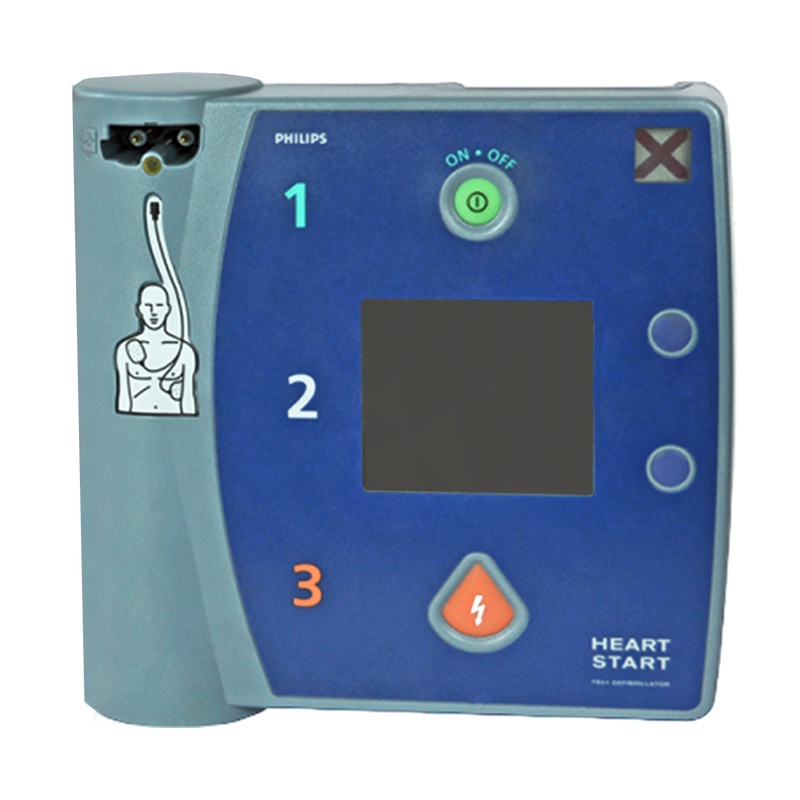

The Philips Heartstart FR2+ is a portable automated external defibrillator (AED) that operates on battery power. Its robust design and advanced life-saving technology ensure user-friendly operation. The HeartStart FR2+ boasts a simplistic layout, featuring only two buttons: an on/off button located at the top and a shock button situated at the bottom. Furthermore, it is equipped with a display screen that provides access to the patient's ECG, textual instructions, and incident details. The Defibrillation system incorporates an intelligent analysis algorithm capable of detecting heart rhythms and determining the necessity of administering a shock. Additionally, the Smart CPR algorithm can assess whether CPR should be administered prior to defibrillation. The Philips Heartstart FR2 Plus is supplied with electrode pads suitable for both adult and pediatric patients. Philips offers a diverse range of AEDs, including the Heartstart FR3 within the Heartstart FR line of products.

    FEATURES:

    • Non-rechargeable long-life lithium battery.
    • Optional rechargeable battery (M3860A only).
    • Adult and infant/child pads.
    • Small and light design.
    • SMART biphasic waveform.

    SPECIFICATIONS:

    • Manufacturer: Philips
    • Part Number (OEM):
    • Category: Defibrillators/Pacemakers
    • Accessories: None
    • Functional Condition: Refurbished
    • Cosmetic Condition: Good
    • Warranty: 90 Days

    • Dimensions:
      • Height: 2.6 in. (6.6 cm)
      • Width: 8.6 in. (21.8 cm)
      • Depth: 8.6 in. (21.8 cm)
      • Weight (With standard battery): 4.7lbs (2.1 kg)
      • Weight (With rechargeable battery): 4.5lbs (2 kg)

    • Standard Battery:
      • 12 VDC 4.2 Ah, lithium manganese dioxide
      • Disposable, recyclable, long-life, primary cell
      • Capacity: 300 shocks or 12 hours of operating time
      • Shelf-Life: 5 Years

    • Display:
      • Type: High-resolution backlight liquid crystal display (LCD)
      • Height: 2.3 in. (5.8 cm)
      • Width: 2.8 in. (7 cm)
      • Display Range: Differential: ±2 mV full scale, nominal. (M3860A only)
      • Sweep Speed: 23 mm/s nominal. (M3860A only)
      • ECG Display: 3-second segments displayed. (M3860A only)
      • Frequency Response (Bandwidth): Nondiagnostic rhythm monitor 1 Hz to 20 Hz (-3 dB), nominal.
      • Sensitivity: 1.16 cm/mV, nominal.
      • Heart Rate Displayed: 30 to 300 bpm, updated each analysis period. Displayed (M3860A only) during monitoring and advanced modes.

    • Defibrillator:
      • Waveform: Biphasic truncated exponential. Waveform parameters are automatically adjusted as a function of patient defibrillation impedance.
      • Energy: Using adult defibrillator pads: 150 J nominal (±15%) into a 50-ohm load. Using infant/child reduced-energy defibrillator pads: 50 J nominal (±15%) into a 50-ohm load.
      • Charge Control: Controlled by Patient Analysis System for automated operation.
      • Charge Time: Typically less than 10 seconds. Charge time increases at the end of battery life.

    • Data Card:
      • Capacity: 8 hours of an event and ECG data, or 60 minutes with voice recording.
