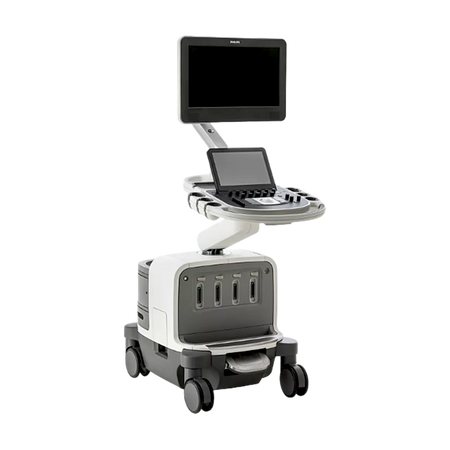

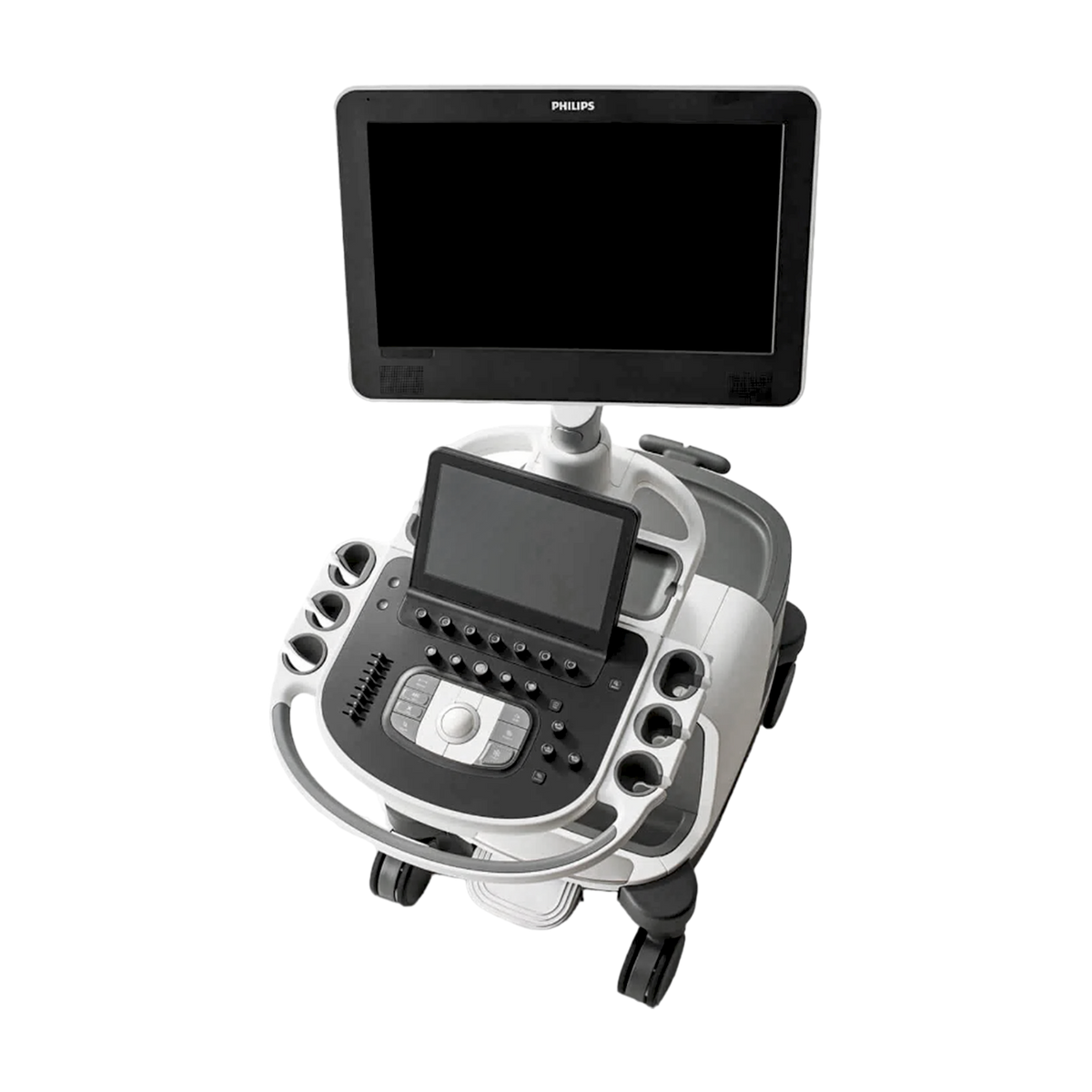

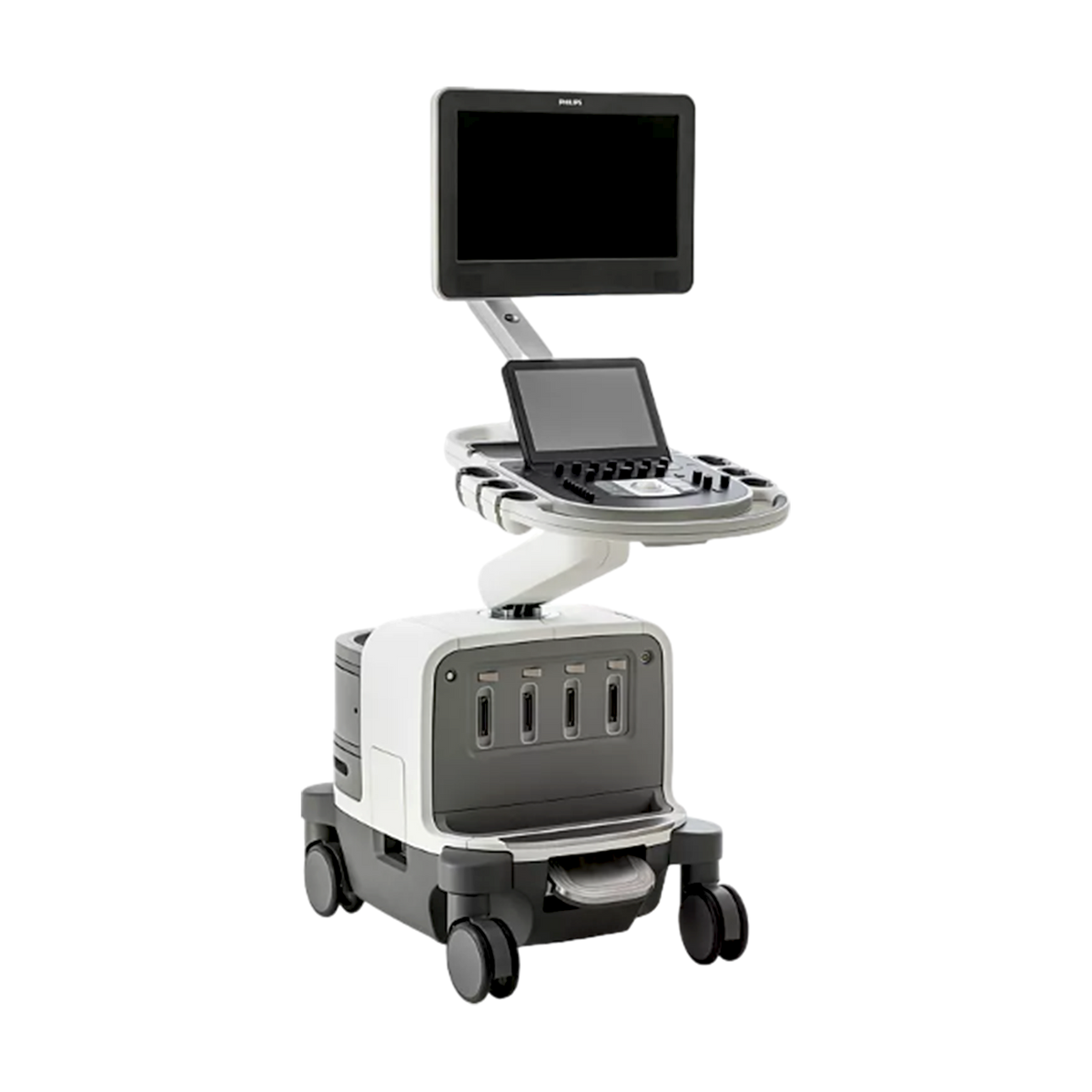

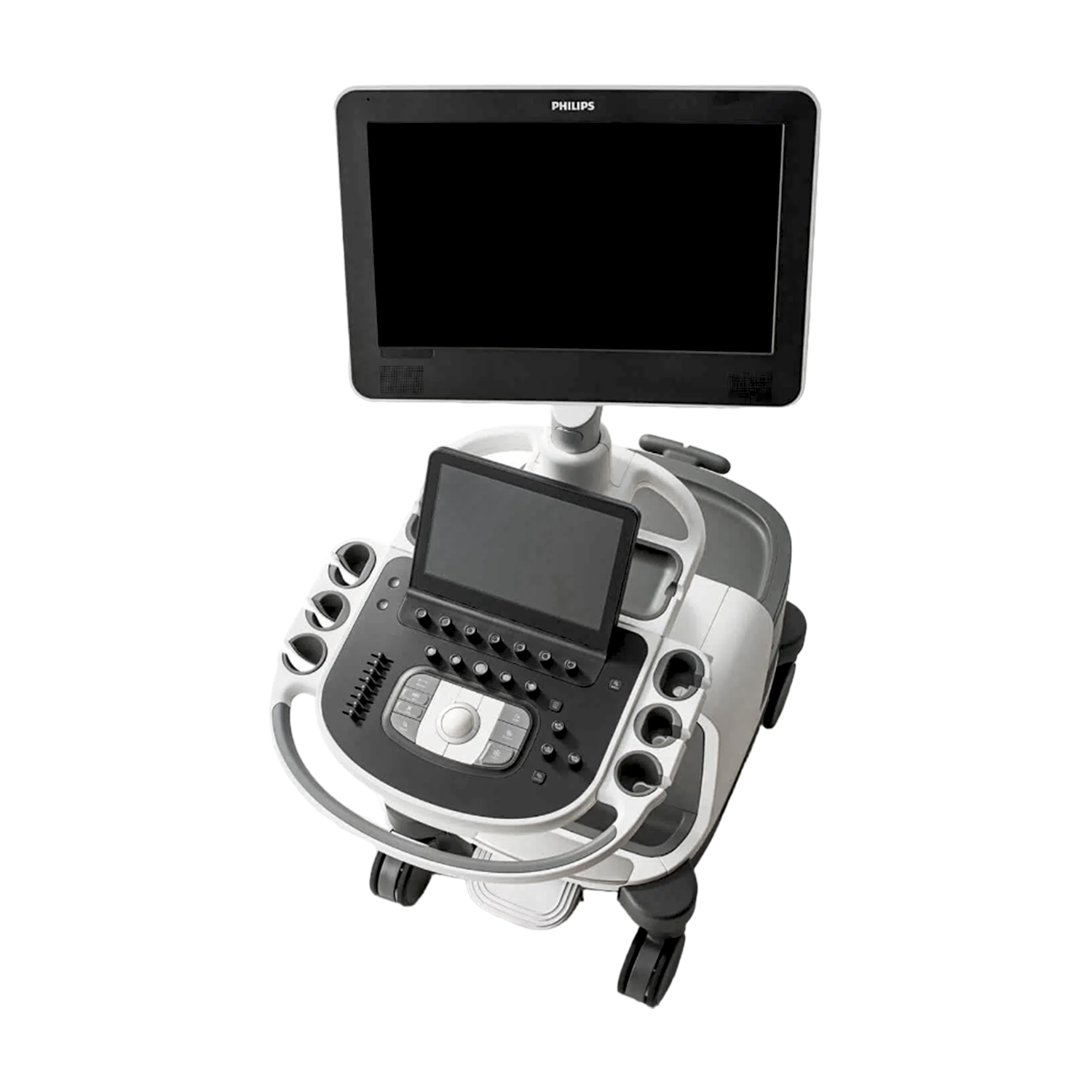

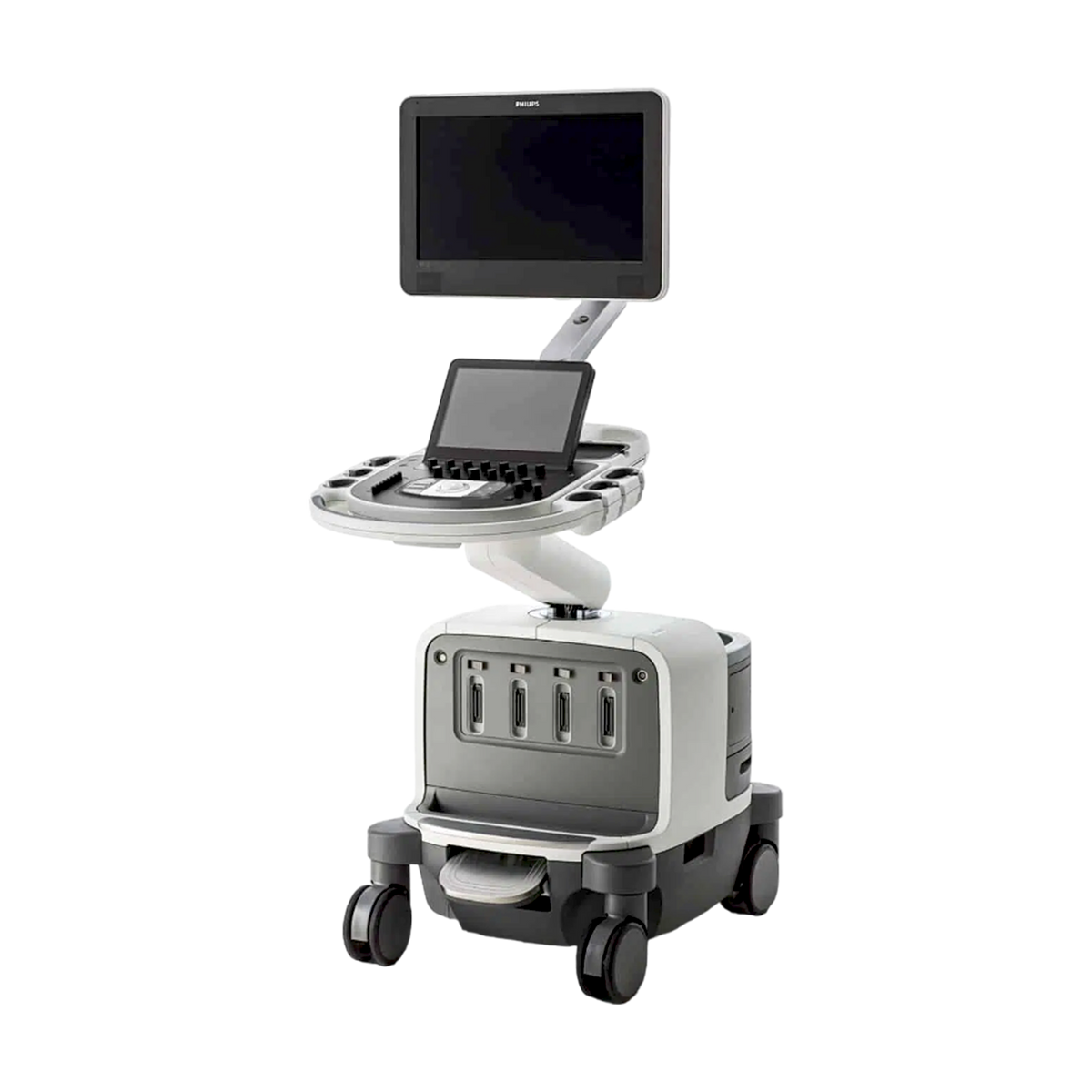

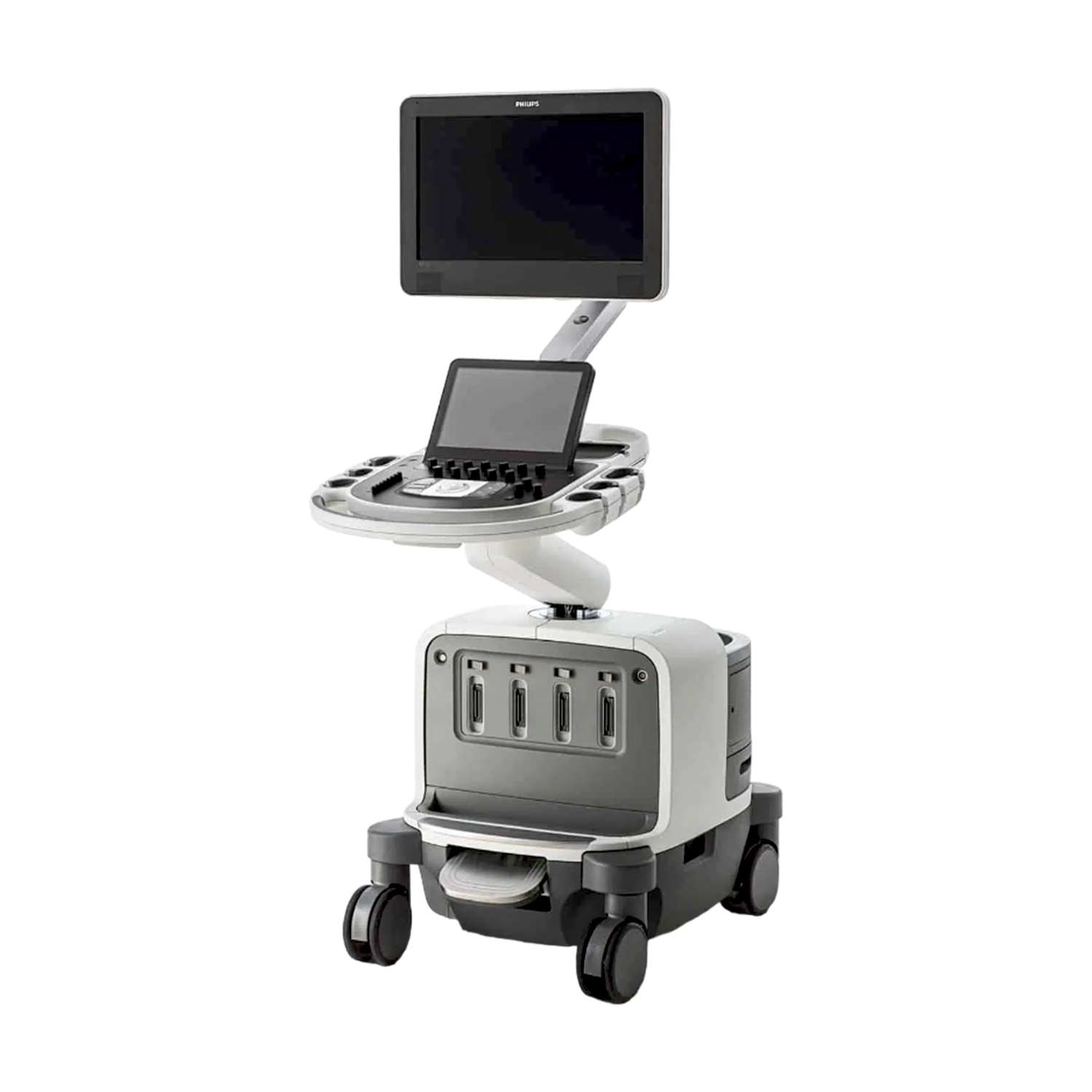

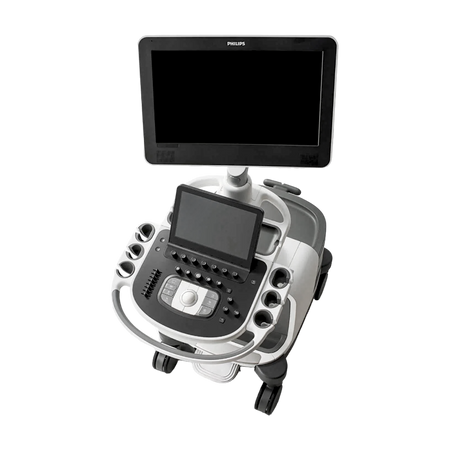

Philips Epiq 7C Ultrasound Machine/System

The Philips Epiq 7c represents the pinnacle of shared service ultrasound machines from Philips, boasting state-of-the-art xMatrix and Purewave single crystal probe technology. Its design is both compact and lightweight, enhancing ergonomics and streamlining workflow. The Epiq and Affiniti ultrasound machines share a similar visual design, utilizing the same large monitor and tablet-like touchscreen for user-friendly navigation.

This system is acclaimed for its shared-service capabilities, featuring Philips' latest imaging architecture, nSIGHT. nSIGHT is a novel beamforming and processing technology that significantly enhances spatial, temporal, and contrast resolution. The Epiq 7c sets itself apart from the Epiq 5 with its ability to support Philips' premium xMATRIX ultrasound transducers, which offer superior imaging in 2D, 3D, and real-time 3D (4D). Alongside nSIGHT and xMATRIX probes, the Epiq 7c incorporates Philips' established high-end imaging technologies such as PureWave transducers, MicroCPA for enhanced low-flow angiography, ShearWave elastography, SonoCT compound imaging, and XRES speckle reduction imaging.

As a shared service ultrasound system, the Epiq 7c is adept at producing ultrasound images for a diverse range of applications, including abdominal, small parts, cardiac, vascular, OB-GYN, musculoskeletal, stress echo, transcranial, and urological imaging. It is compatible with over 15 different ultrasound transducer types, highlighting the system's adaptability for various medical scenarios.

FEATURES: *(Not ALL May Be INCLUDED)

• XMATRIX transducer technology
• Stress Echo with automatic modes
• AutoDoppler
• High-resolution 21.5" LCD wide screen monitor
• PureWave-Crystal-Technology
• nSIGHT: clear, precise imaging throughout the image while keeping higher framerates
• SmartExam & Real Time iSCAN (Autoscan)
• PureWave transducers
• 4D TEE
• Shear Wave and strain-based elastography
• 2D LV quantification


SPECIFICATIONS:

• Manufacturer: Philips
• Part Number (OEM): EPIQ 7C
• Category: Imaging
• Accessories: None
• Functional Condition: New/Refurbished
• Cosmetic Condition: Good
• Warranty: 30 Days


• Dimensions:
• Height: Minimum 57.5 in (146 cm)
• Height: Maximum 67.5 in (171.5 cm)
• Width: 24 in (60.6 cm)
• Depth: 43 in (109.2 cm)
• Weight: 230lbs (104.3 kg)

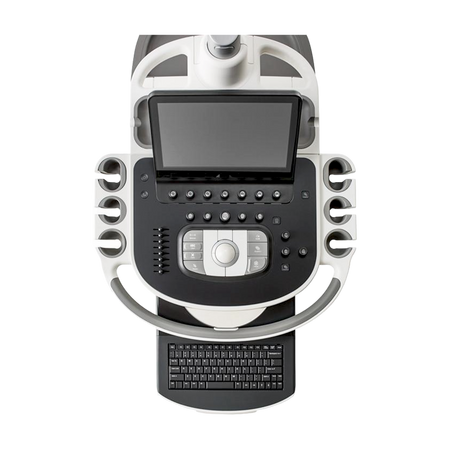

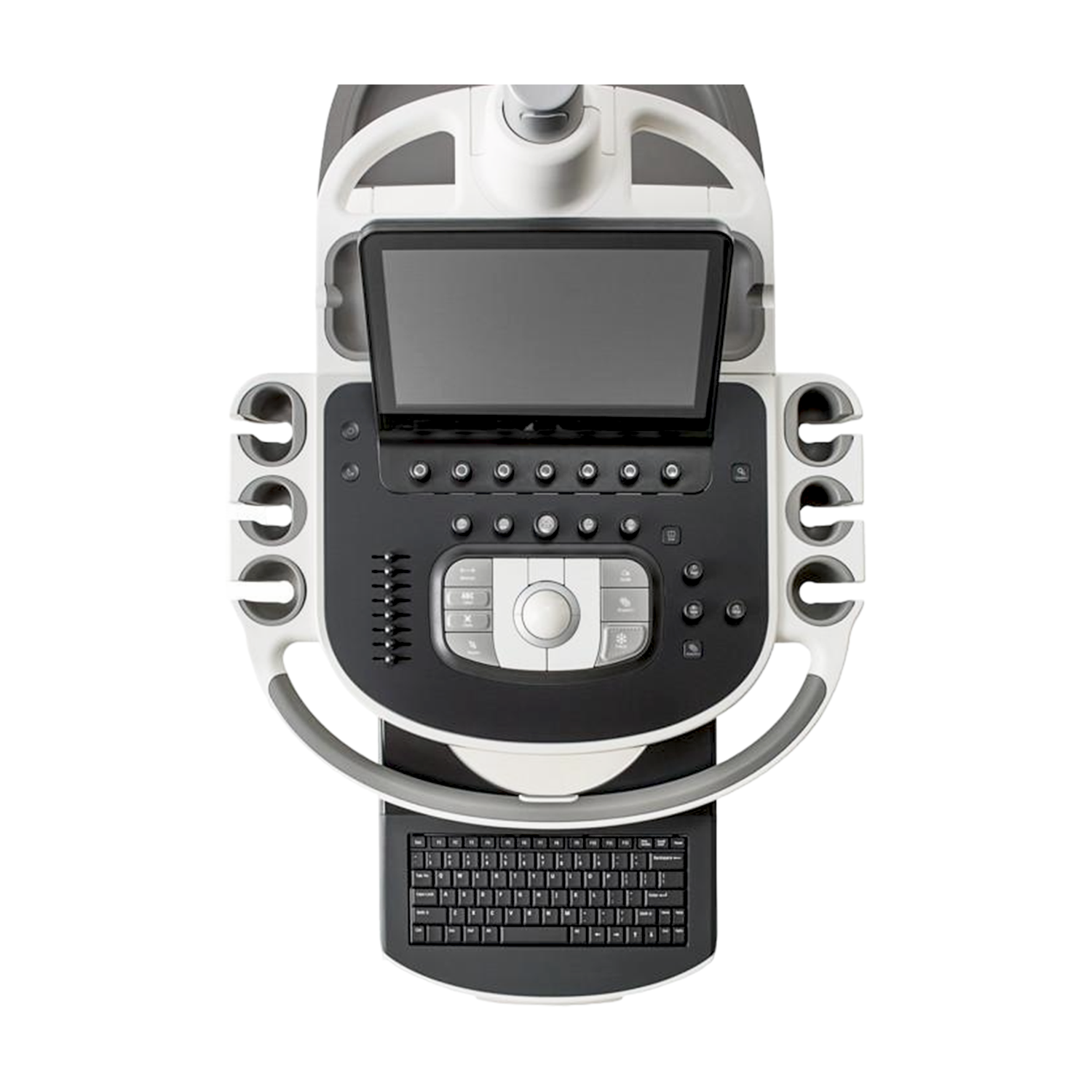

• Control Panel:
• Monitor size: 21.5 in (54.6 cm)
• Touch Screen: 12 in (30.5 cm)
• Height Adjustment: 10 in (25.4 cm)
• Degrees of Monition: 180 degrees


• Output Signal:

• External printer
• USB serial data
• Video: S-Video, and digital display port
• Physio analog signal


• Electrical:

• AC Voltage 100-240V~
• 50 – 60 Hz
• 600 VA


• General:
• CP Back-Lighting: Yes (3 steps)
• Probe ports: 4
• Battery: 45 minutes
• Boot-up Time: 110 Sec
• Sleep Mode (Quick Start): Yes
• Maximum Depth of Field: 30 cm
• Minimum Depth of Field: 2 cm
• Cart (HCU): No
• Independent Steer & lockable Wheels: Yes


• General Imaging Q-Apps:
• Intima Media Thickness (IMT)
• General Imaging 3D Quantification (GI 3DQ)
• Region of Interest (ROI)
• MicroVascular Imaging (MVI)
• Vascular Plaque Quantification (VPQ)


• Cardiology Q-Apps:
• Strain Quantification (SQ)
• Cardiac 3D Quantification (3DQ)
• Cardiac 3D Advanced Quantification (3DQ Advanced)
• CMQ Stress
• Mitral Valve NavigationA.I. (MVNA.I.)
• Automated 2D Cardiac QuantificationA.I. (a2DQA.I.)
• Automated Cardiac Motion QuantificationA.I. (aCMQA.I.)

COMPATIBLE PROBES/TRANSDUCERS:

• Endocavitary Probes:

• Philips C10-4ec


• Convex/Curved Array Probes:
• Philips C5-1
• Philips C8-5
• Philips C9-2


• Linear Array Probes:
• Philips L12-3
• Philips L12-5
• Philips L18-5


• Cardiac Sector Array Probes:
• Philips S12-4
• Philips S5-1
• Philips S8-3


• Vector Array Probes:
• Philips V6-2e
• Philips VL13-5


• Matrix TEE Probe:
• Philips  X7-2t


• Matrix Array Probes:
• Philips X5-1
• Philips X6-1
• Philips X7-2


• Hockey Stick Probes:
• Philips L15-7io


• CW Probes:
• Philips D2cwc CW
