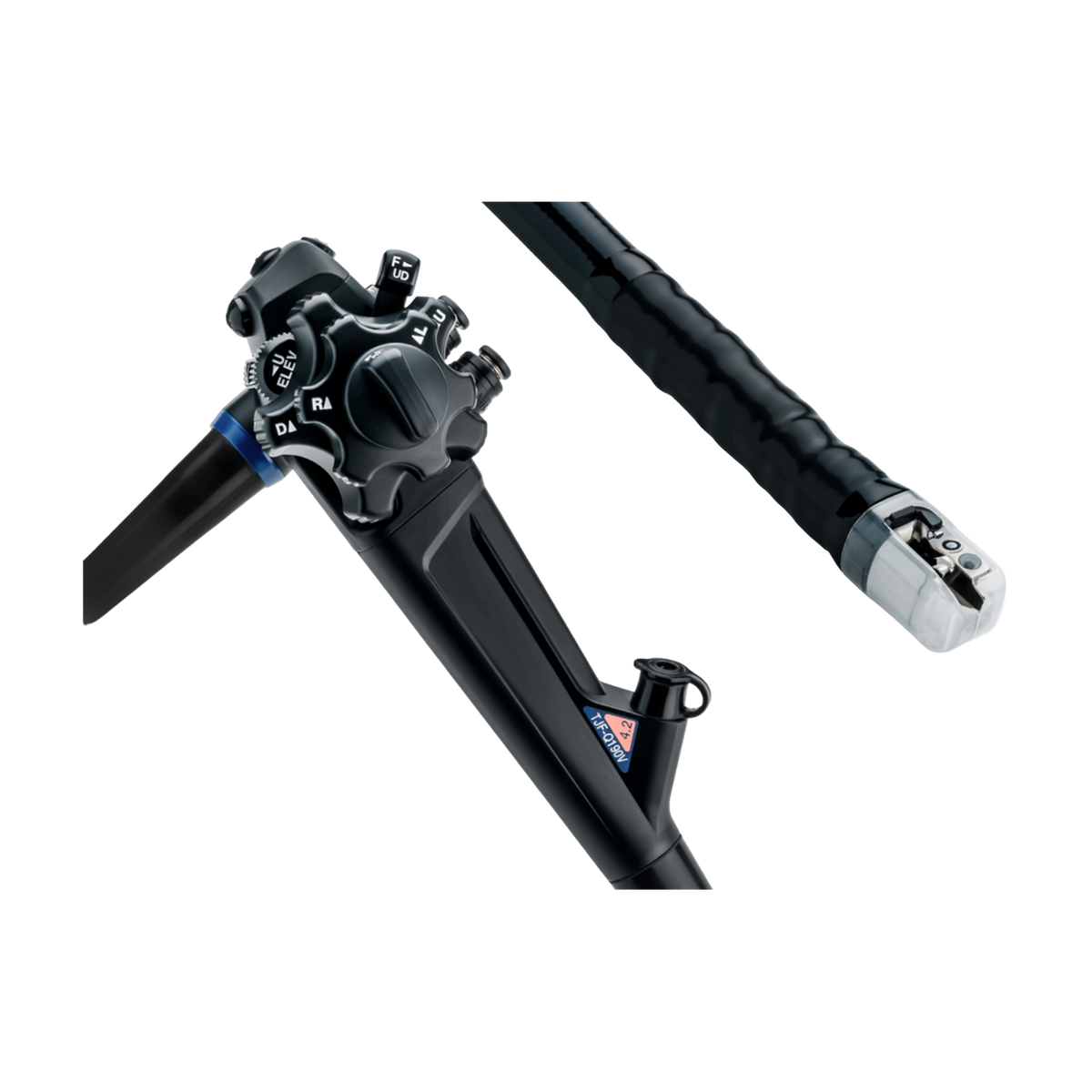

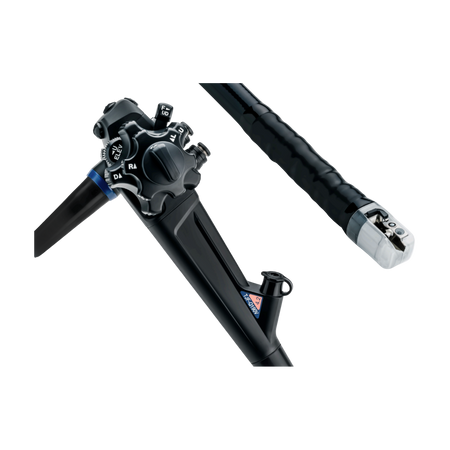

Olympus TJF-Q190V EVIS EXERA II Therapeutic Video Duodenoscope

SKU: EN-TJF-Q190V
(0)
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The Olympus TJF-Q190V is a therapeutic video duodenoscope designed for medical procedures such as endoscopic retrograde cholangiopancreatography (ERCP).

It features several advanced capabilities to enhance clinical performance and improve reprocessing efficiency.

FEATURES:

  • Single-Use Distal Cover:
    • This feature allows for improved visualization and access to the distal end during reprocessing, reducing the risk of contamination by being disposable after each use.
  • Distal-End Flushing Adaptor:
    • A proprietary adaptor designed for directed flushing during manual cleaning, enhancing the cleaning and reprocessing of the duodenoscope.
  • Guidewire Locking Capability:
    • Facilitates short guidewire locking with a dual system at the distal end, accommodating both 0.035 inch and 0.025 inch guidewires.
  • Improved Cannulation Efficiency:
    • Features a square image shape and 15° backward viewing, which expand the vertical field of view and enhance cannulation efficiency.
  • High Force Transmission (HFT):
    • This technology improves the scope's responsiveness and ergonomics, enhancing handling during procedures.
  • Waterproof One-Touch Connector:
    • Allows a one-step connection to the video system, minimizing the risk of fluid ingress.

SPECIFICATIONS:

  • Manufacturer: Olympus
  • Part Number: (OEM): TJF-Q190V
  • Category: Endoscopes Flexible - Duodenoscope
  • Condition: Refurbished
  • Weight: 2.0lbs.
  • Warranty: 3 Months
  • Optical System:
    • Field of View: 100°
    • Direction of View: Backward side viewing at 15°
    • Depth of Field: 5 – 60 mm
  • Insertion Section:
    • Distal End Outer Diameter: 13.5 mm with MAJ-2315
    • Insertion Tube Outer Diameter: 11.3 mm
    • Working Length: 1,240 mm
  • Instrument Channel:
    • Channel Inner Diameter: 4.2 mm
    • Minimum Visible Distance: 10 mm from the distal end
  • Bending Section:
    • Angulation Range:
      • Up 120°
      • Down 90°
      • Right 110°
      • Left 90°
  • Total Length: 1,560 mm

COMPATIBILITY:

  • The Olympus TJF-Q190V duodenoscope is compatible with several systems and accessories, enhancing its functionality in clinical settings:
    • EVIS EXERA Systems:
      • It is compatible with the EVIS EXERA III (CV-190) video system center, which provides high-quality imaging and advanced features for endoscopic procedures.
    • Light Source:
      • The duodenoscope works with the OLYMPUS CLV-190 xenon light source, ensuring optimal illumination during procedures.
    • EndoTherapy Accessories:
      • The instrument channel is designed to accommodate various endotherapy accessories, facilitating a wide range of therapeutic interventions.
    • Single-Use Accessories:
      • The TJF-Q190V utilizes specific single-use accessories such as the MAJ-2315 distal cover and the MAJ-2319 distal-end flushing adapter, which are designed to improve reprocessing and patient safety.
