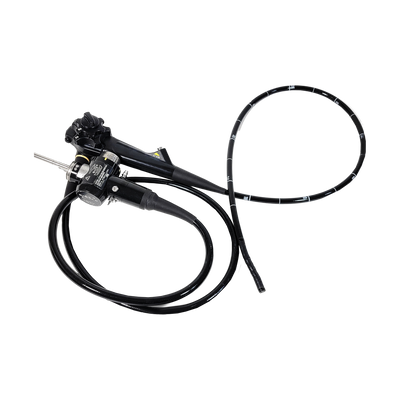

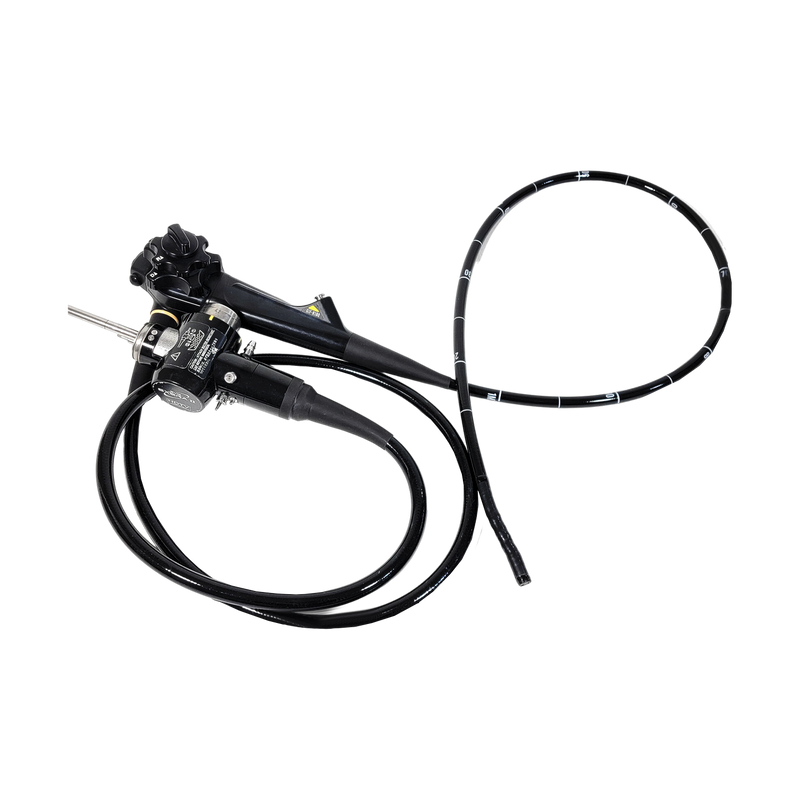

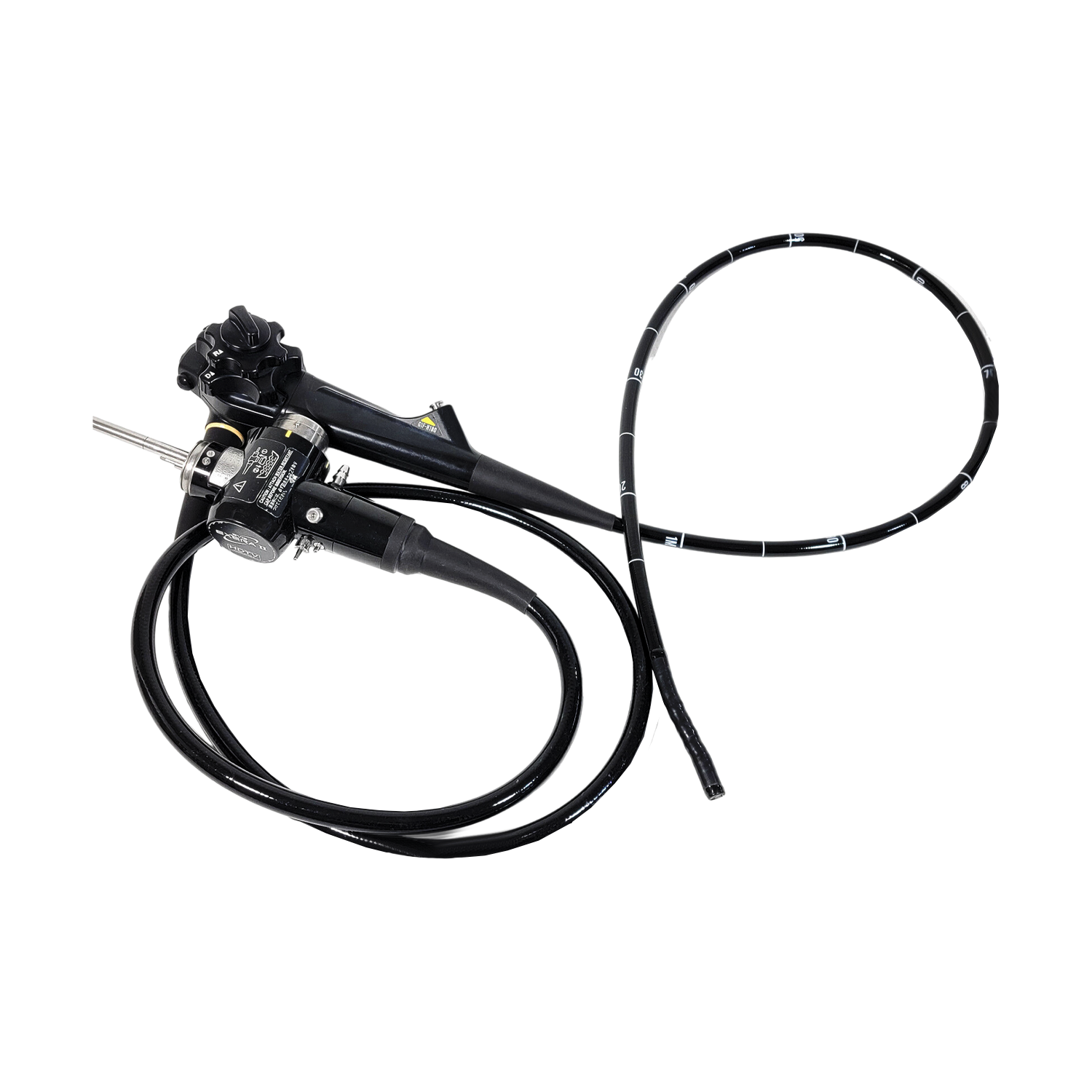

Olympus GIF-H180 EVIS EXERA II Gastrointestinal Videoscope
Couldn't load pickup availability
Listing Terms & Conditions
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
The Olympus GIF-H180 EVIS EXERA II gastroscope sets a new standard for high-definition image quality. With resolutions that significantly surpass conventional video technology, this device incorporates Narrow Band Imaging to enable enhanced visualization of capillaries and mucosal tissue. This results in remarkably detailed and clear images for improved diagnostic capabilities in gastroscopy procedures.
DESCRIPTION:
- The Olympus GIF-H180 EVIS EXERA II is a high-definition gastrointestinal videoscope designed for upper gastrointestinal endoscopy. It features an HDTV-compatible CCD that captures clear, life-like images with precise details and accurate color.
FEATURES:
- High-definition imaging:
- HDTV-compatible CCD for sharp, detailed images
- Narrow Band Imaging (NBI):
- Enhances visualization of capillaries and mucosal structures
- Close Focus optical system:
- Allows detailed observation without electronic magnification
- Wide field of view:
- 140° for observing a large area
- Slim design:
- 9.8 mm outer diameter for excellent insertion capability
- Generous instrument channel:
- 2.8 mm diameter to accommodate various endoscopic devices
SPECIFICATIONS:
- Optical System:
- Field of view: 140°
- Direction of view: Forward viewing (0°)
- Depth of field: 2 to 100 mm
- Physical Dimensions:
- Distal end outer diameter: 9.8 mm
- Insertion tube outer diameter: 9.8 mm
- Working length: 1030 mm (103 cm)
- Total length: 1345 mm
- Instrument Channel:
- Inner diameter: 2.8 mm
- Minimum visible distance: 3 mm from the distal end
- Bending Section:
- Angulation range:
- Up: 210°
- Down: 90°
- Right: 100°
- Left: 100°
- Angulation range:
- Imaging Technology:
- HDTV-compatible CCD
- Narrow Band Imaging (NBI) capability
- Close Focus optical system
COMPATIBILITY:
- CV-180 processor
- CLV-180 light source
- CV-190 Video Endoscopy Processor System
