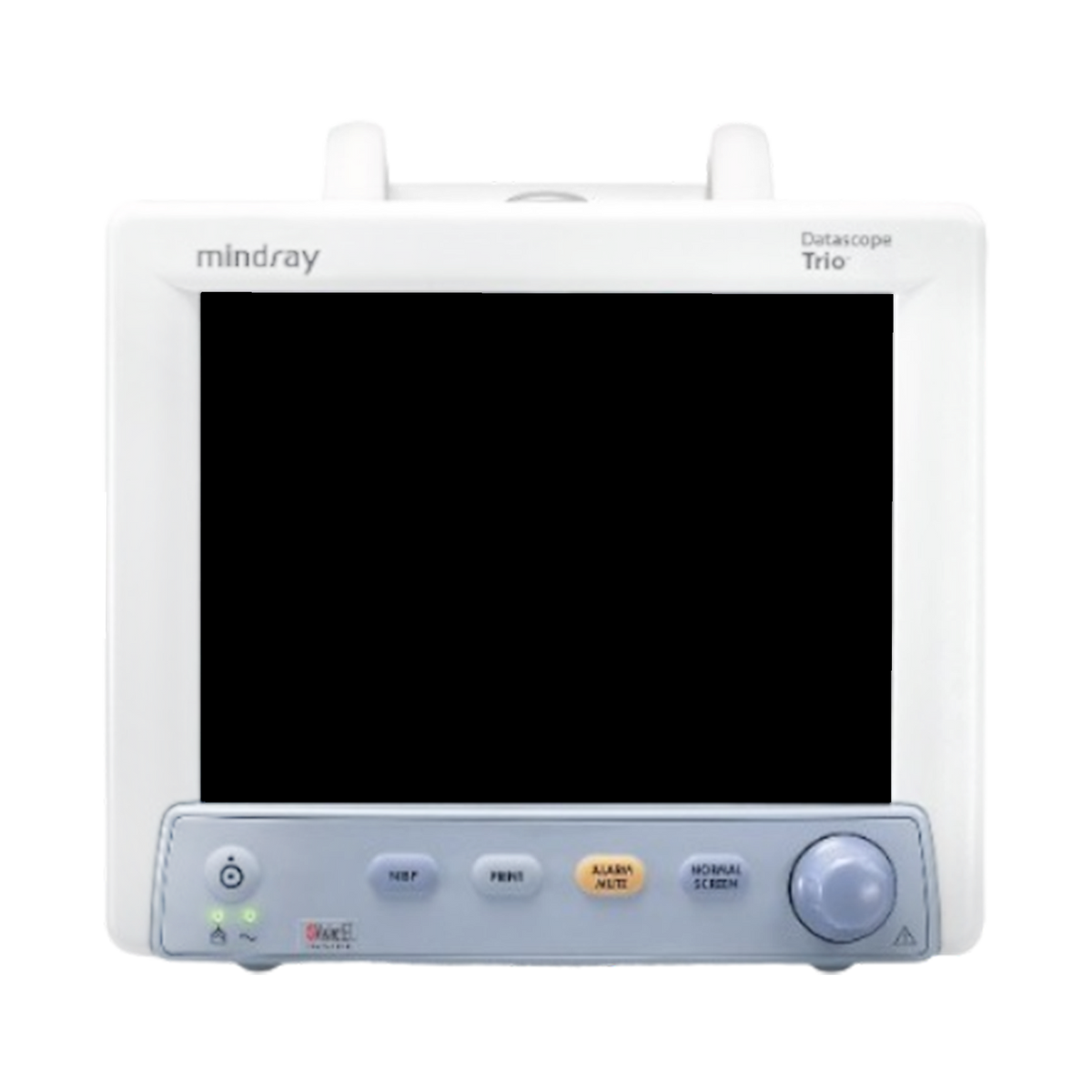

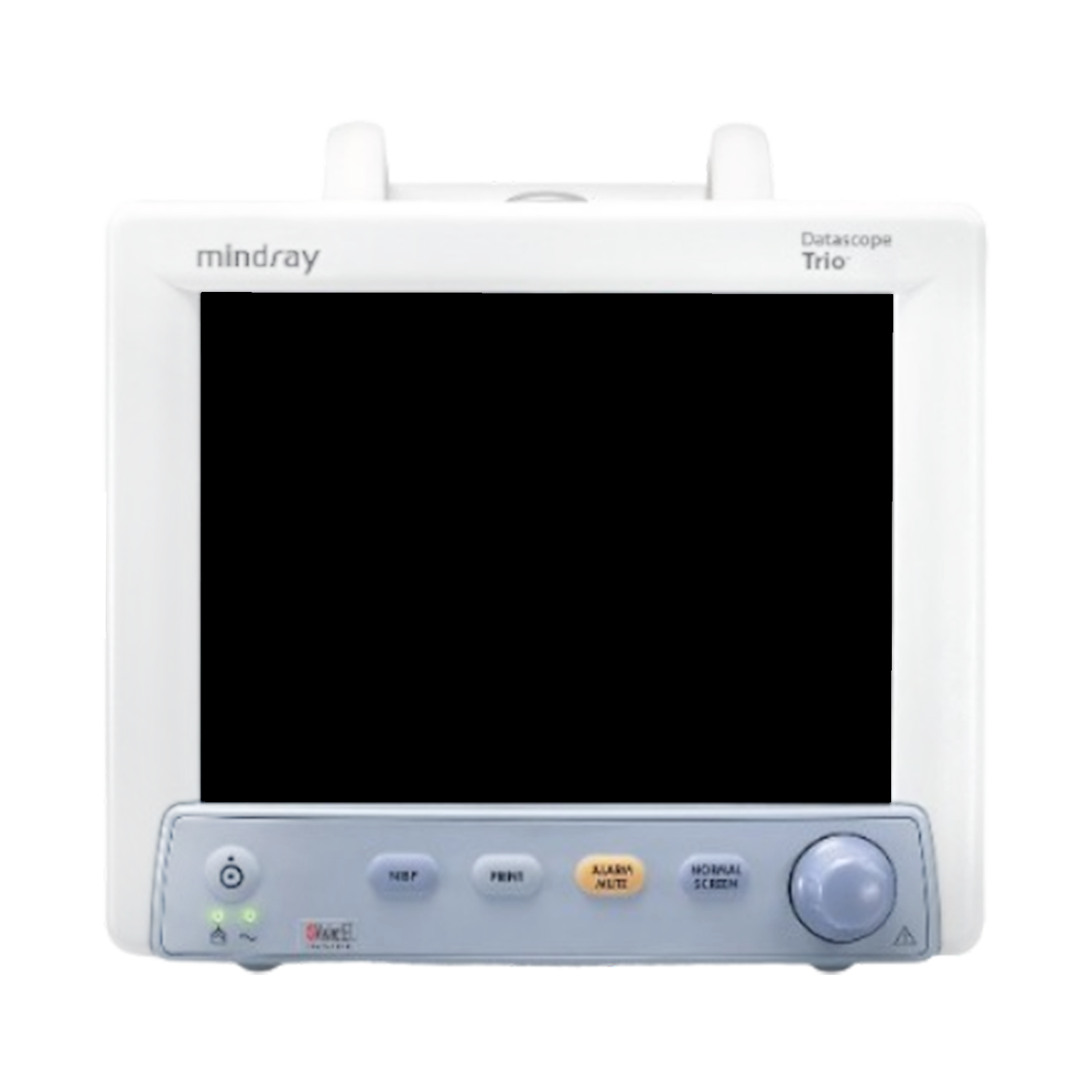

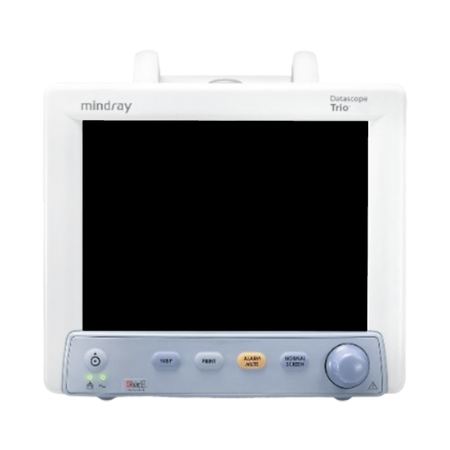

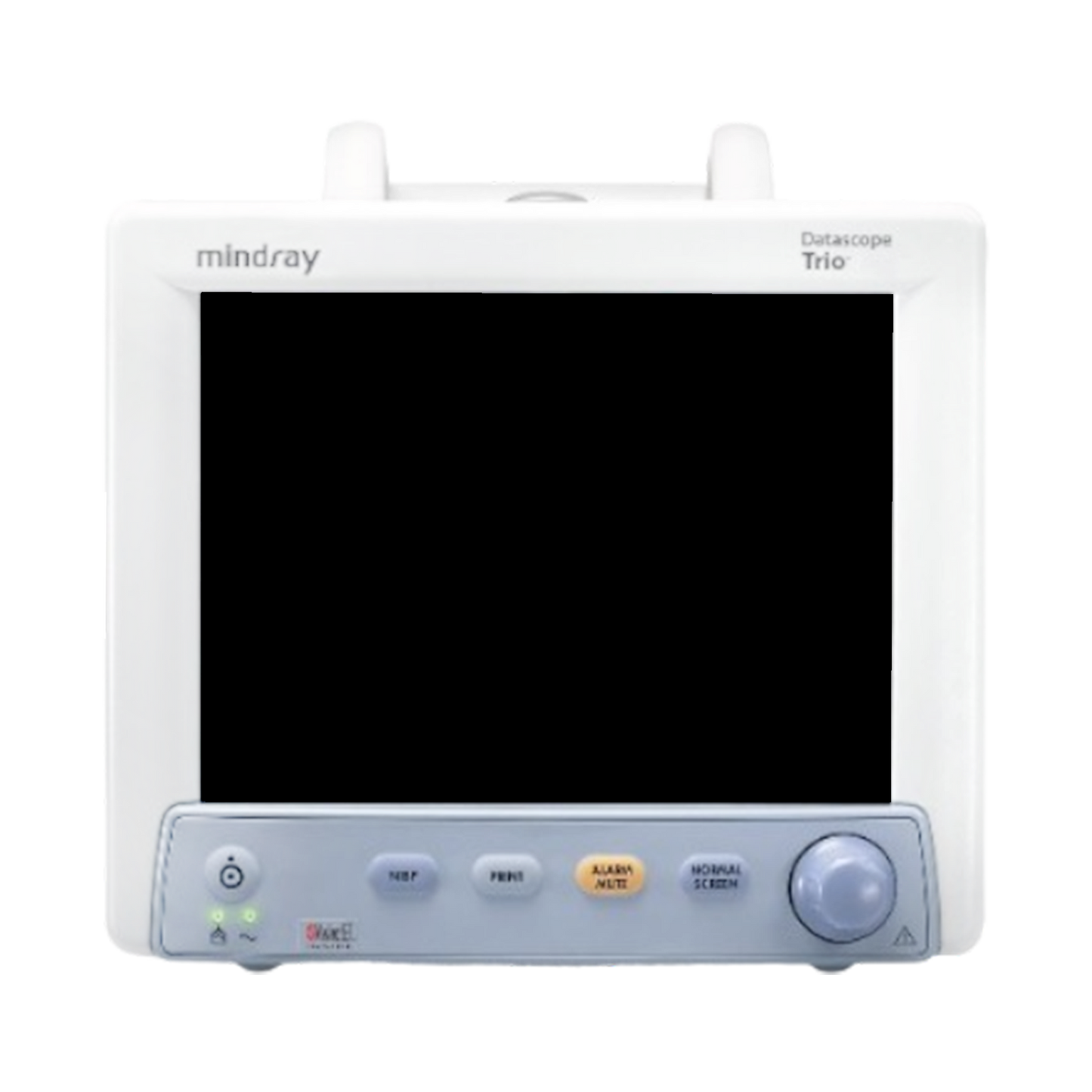

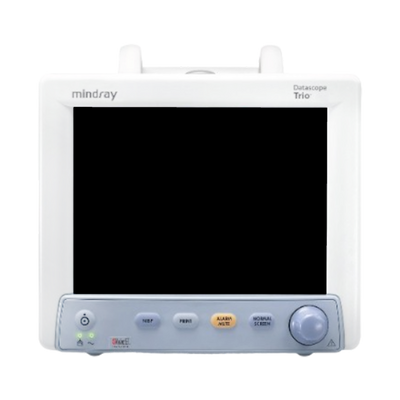

Mindray/Datascope Trio Patient Monitor

The Mindray/Datascope Trio is a portable patient monitor that utilizes a parameter module to collect patient data. With its high-resolution color display, the Mindray/Datascope Trio provides a clear and detailed view of ECG, SPO2, NIBP, and Temperature readings. Its lightweight design, integrated bedrail hook and handle, built-in power supply, and recorder make it a versatile monitor suitable for various departments.

STANDARD FEATURES:
(Some may be optional, inquire on your specific requirements.)

• 8.4” color TFT display.
• 800 x 600 resolution.
• Standard features include 4 waveforms, 3 or 5 lead ECG, SPO2, NIBP, temperature, and respiration.
• Built-in power supply for direct AC connection.
• Quick and easy recognition of patient information.
• Fold-away handle with built-in bed rail hook.

SPECIFICATIONS:

• Manufacturer: Mindray/Datascope
• Part Number: (OEM): Trio
• Category: Patient Monitor
• Condition: Refurbished
• Weight: 11lbs.
• Warranty: 12-Months

CONFIGURATION:
(There are many configurations, so price will vary, please contact us for additional information)

• Dimensions:
• Height: 8.98” (22.8 cm)
• Width: 9.49” (24.1 cm)
• Depth: 6.85” (17.4 cm)
• Weight: 10.61lbs (4.81 kg)


• Battery:
• Sealed Lead Acid Battery
• Minimum Run Time: ~75 Minutes
• Recharge Time: 8 hours
• Lithium Ion Battery
• Minimum Run Time: ~3.25 hours
• Recharge Time: 6.5 hours


• ECG:
• Type: 3 or 5-Lead ECG
• Gain Selection: x0.25, x0.5, x1, x2
• Sweep Speed: 12.5 mm/s, 25 mm/s, 50 mm/s
• Resolution: 1 bpm
• Accuracy: ± 1 bpm or ± 1% whichever is greater
• Trigger Threshold Level: 200 μV (Lead II)


• NiBP:
• Pulse Range: 40 to 240 bpm
• Pulse Rate Accuracy: ±2 bpm or 2%, whichever is greater
• Systolic Pressure Range: Adult: 40 to 255 mmHg, Pediatric: 40 to 200 mmHg
• Diastolic Pressure Range: Adult: 10 to 210 mmHg, Pediatric: 10 to 150 mmHg
• Static Pressure Range: 0 to 325 mmHg


• IBP:
• 1 IBP Channel reading systolic, diastolic, and mean pressures
• Accuracy: ± 1 mmHg ro 2% which ever is greater
• Excitation: 5 Volts DC, ±2% Minimum load resistance is 300 ohms per transducer
• Resolution: 1 mmHg
• Linear Input Rnage: -50 to +300 mmHg, after zeroing
• Noise: 0.5 mmHg RTI, DC to 15 Hz, 300 Ω source impedance.


• Temperature:
• Scale: Celsius or Fahrenheit
• Range: 0°C to 50°C, 32°F to 122°F


• Resolution: 0.1°C, 0.1°F
• Accuracy: ± 0.1°C (0°C to 50°C), ± 0.2°F (32°F to 122°F)


• SpO2:
• Type: Masimo SET or Nellcor
• Masimo
• Sensor Compatibility: LNOP or LNCS Series
• SpO2 Display Range: 1 to 100%
• SpO2 Resolution: 1%
• Nellcor
• Sensor Compatibility: OxiMax Series, MAX-A, MAX-AL, MAX-N, MAX-P, MAX-I, MAX-FAST, MAX-R, OxiCliq A, OxiCliq N, OxiCliq P, OxiCliq I, D-YS, D-YSE, D-YSPD, DS-100A, OXI-A/N, and OXI-P/I
• SpO2 Display Range: 1 to 100%
• SpO2 Resolution: 1%


• Recorder / Printer:
• The integrated printer is a maximum 2-trace thermal array strip chart printer
• Type: Plain white thermal paper 50.0 ± 0.1 mm wide
• Speed: 2 speeds, 25 and 50 mm/sec.
• Scaling: ±5% of the scale set on the display for a single trace and 50% scale set on the display for dual trace
• Modes: 6, Manual, on alarm, on an interval, frozen waveforms, list trend, and graphic trend
