Home » Mindray/Datascope Passport 12M Patient Monitor
Mindray / Datascope

Mindray/Datascope Passport 12M Patient Monitor

(0)
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

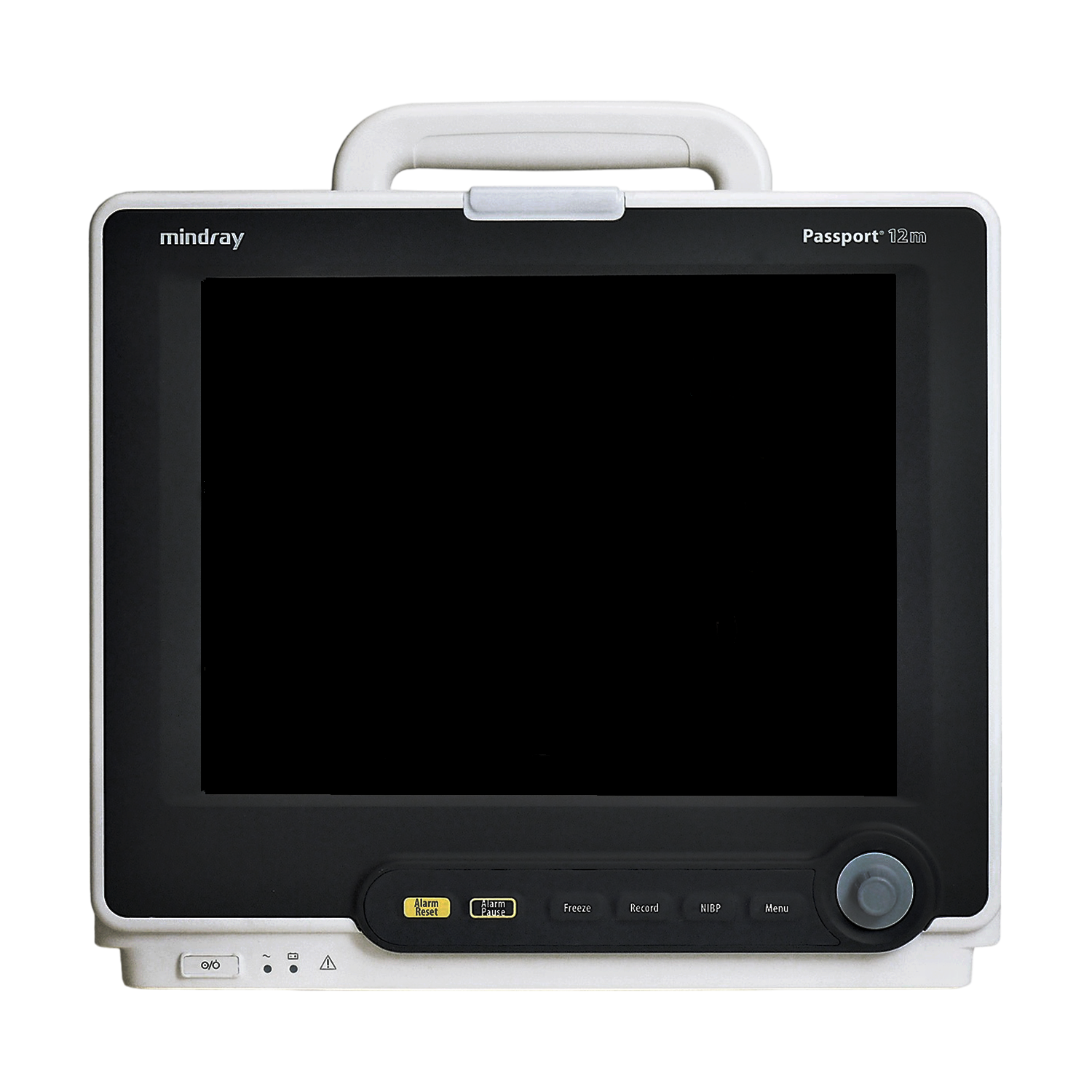

The Mindray Passport 12m is an advanced and highly customizable patient monitor suitable for mid to high-acuity patient care and operating room environments. It is equipped with a 12.1” color touchscreen display, providing excellent visibility and quick access menus. Additionally, it offers multiple trend capabilities, allowing for comprehensive patient monitoring and analysis. The monitor's features include a familiar and intuitive interface across the Passport family, customizable screen views, and quick keys for diverse patient and clinical needs.

The ePM 10M and 12M monitors, which are part of the Passport legacy, also offer similar features such as multi-gesture, capacitive touchscreen displays, standard waveforms, and integrated parameters for enhanced usability and patient care.

FEATURES:

  • 12.1″ high-resolution touchscreen display.
  • Familiar intuitive interface across the Passport family.
  • Customizable screen views and quick keys for diverse patient and clinical settings.
  • Robust measurement set for intermediate to critical care environments.
  • Supports T1 Transport Monitor/Module as a multi-parameter module.
  • Extensive data storage capability for trend data, alarms, events, and 48 hours of full disclosure.

      SPECIFICATIONS:

      • Manufacturer: Mindray/Datascope
      • Part Number (OEM): Passport 12M
      • Category: Patient Monitors
      • Parameter Options: (Requires MPM Module)
      • Accessories: None
      • Functional Condition: Refurbished
      • Cosmetic Condition: Good
      • Warranty: 3 Months

      • Dimensions:
        • Height: 11.7 in (29.7 cm)
        • Width: 13.2 in (33.6 cm)
        • Depth: 7.4 in (18.7 cm)
        • Weight: 16.5 lbs (7.5 kg) (Without modules, batteries, accessories, and recorder)

      • Display:
        • Type: Color TFT Display
        • Size (Diagonal): 12 in (30.5 cm)
        • Resolution: 800 x 600

      • Battery:
        • Type: Rechargeable Lithium-ion
        • Voltage: 11.1 VDC
        • Capacity: 4500 mAh
        • Run Time (Average): About 330 minutes when powered by two new fully-charged batteries
        • Charge Time: Less than 6 hours to 100%

      • ECG:
        • Lead Set: 3, 5, and 12-lead
        • Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
        • Mindray Resolution: 1 bpm
        • Mindray Accuracy: ±1 bpm or ±1%, whichever is greater

      • Resp:
        • Technique: Trans-thoracic impedance
        • Lead: Options are lead I and II
        • Measurement Range: Adult: 0 to 120 rpm; Pediatric/Neonate: 0 to 150 rpm
        • Resolution: 1 rpm
        • Accuracy: 7 to 150: ±2 rpm or ±2%, whichever is greater

      • Masimo SpO2:
        • Measurement Range: 1 to 100%
        • Resolution: 1%
        • Response Time: = 20 s (PR 75 bpm, average time 8 s, SpO2 value rises from 60% to 95%)
        • Refreshing Rate: = 2 s
        • SpO2 Averaging Time: 2-4 s, 4-6 s, 8 s, 10 s, 12 s, 14 s, 16 s
        • Accuracy: 70 to 100%: ±2-3%

      • Nellcor SpO2:
        • Measurement Range: 1 to 100%
        • Resolution: 1%
        • Response Time: = 30 s (PI > 0.3, no disturbance, SpO2 value sudden change within 70% – 100%)
        • Refreshing Rate: = 2 s
        • Accuracy: 70 to 100%: ±2-3%

      • NiBP:
        • Technique: Oscillometry
        • Mode of Operation: Manual, Auto, and STAT
        • Heart Rate Range: 40 to 240 bpm
        • Resolution: 1 mmHg
        • Accuracy: Max mean error ±5 mmHg

      • Temperature:
        • Technique: Thermal resistance
        • Operating Mode: Direct mode
        • Measurement Range: 32 to 122°F (0 to 50 °C)
        • Resolution: 0.1 °C
        • Accuracy: ±0.1 °C or ±0.2 °F (without probe)

      • IBP:
        • Measurement Range: -50 to 300 mmHg
        • Resolution: 1 mmHg
        • Accuracy: ±2% or ±1 mmHg, whichever is greater (without sensor)
