Home » Hillrom P3700 Affinity 4 Birthing Bed
Baxter/Hillrom

Hillrom P3700 Affinity 4 Birthing Bed

SKU: EN-HR-AFFINITY4
(0)
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

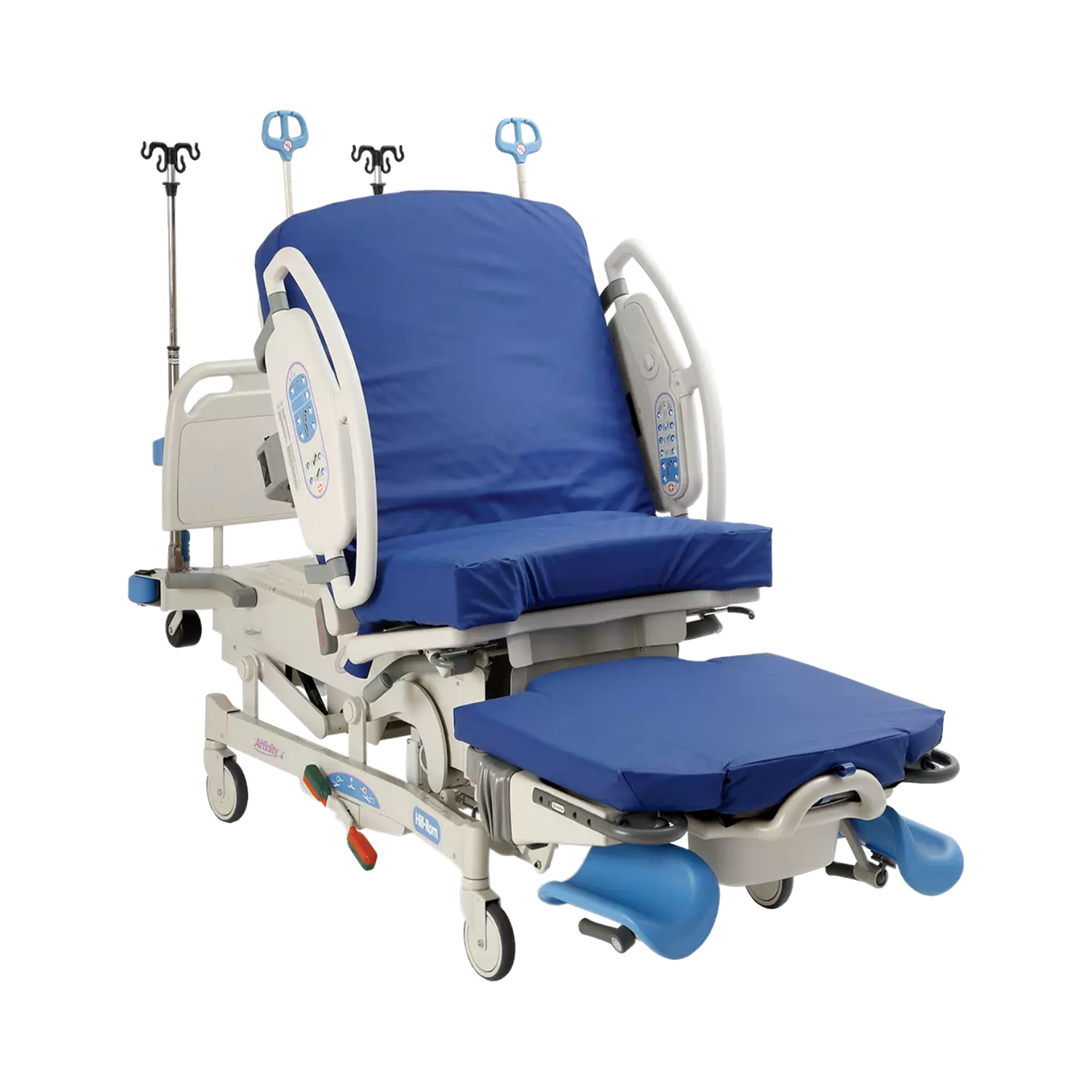

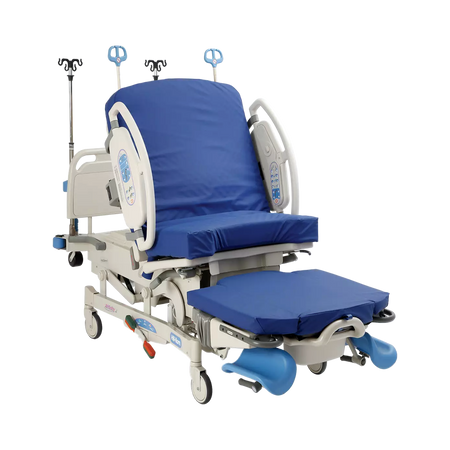

The Hillrom Affinity 4 Birthing Bed (Model P3700) is designed for use in acute care Labor and Delivery Units. Key features of the Hillrom Affinity 4 include:

The Hillrom Affinity 4 is designed to adapt and deliver for various patient positioning needs during labor and birth. It is intended for use as a birthing bed for women of childbearing age in an LDR (Labor, Delivery, Recovery) setting. The bed can be easily transported with the Central Brake and Steer system, and it features a battery backup for temporary adjustments when the bed is not near a power outlet.

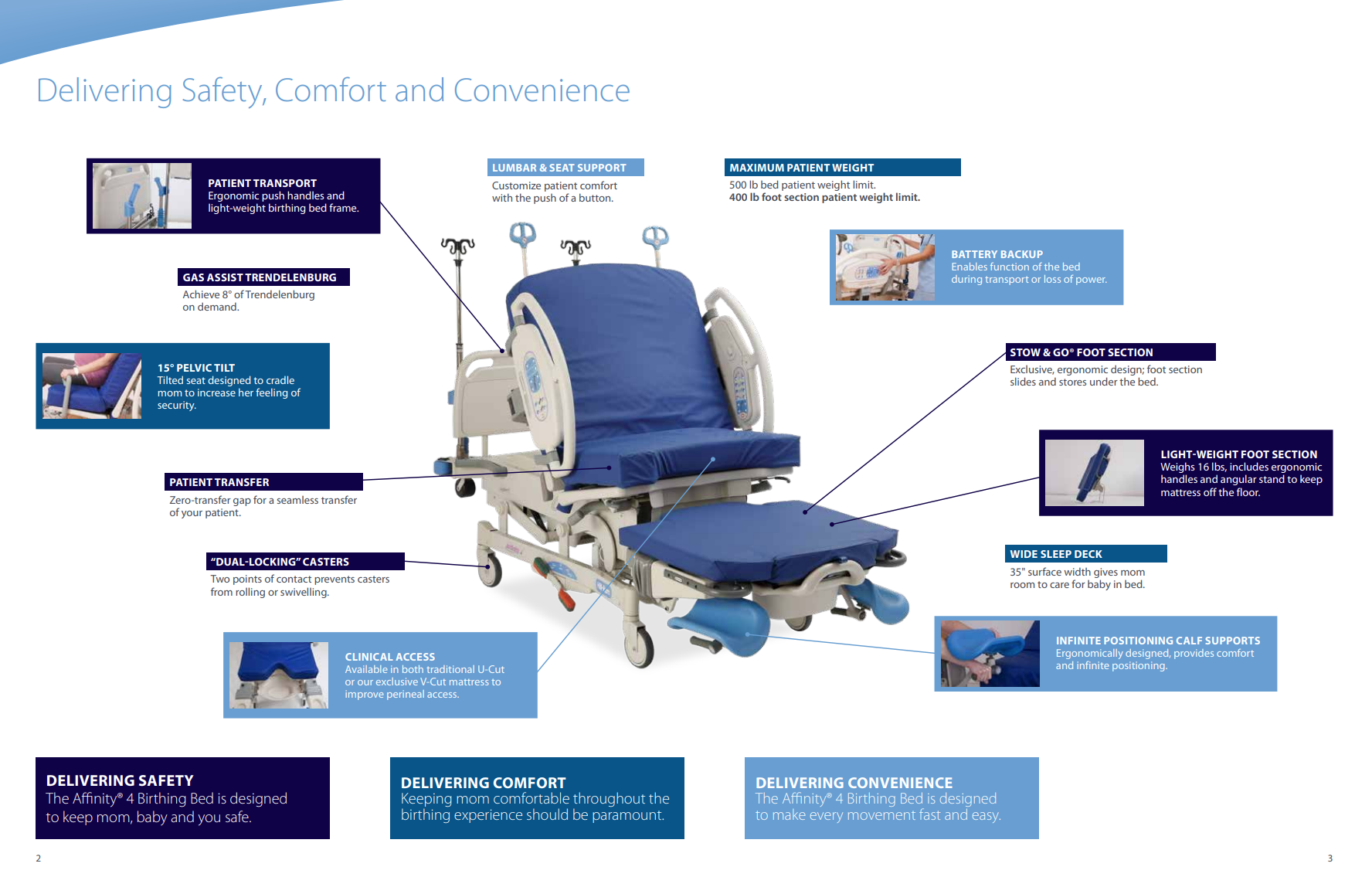

FEATURES:

  • Multiple articulation features for various patient positioning needs
  • Ergonomic hand grips for easy maneuvering
  • Motorized bed positioning with caregiver and patient Point-of-Care® controls on side rails for bed hi/lo, backrest up/down, and leg up/down positioning
  • Manually adjustable foot stirrups and calf supports
  • Lightweight lift-off foot section for caregiver access
  • Fluid basin for patient comfort
  • Two-piece head and foot section mattress or optional adjustable air mattress system
  • Trendelenburg operation manually operated through gas-assist dual ergonomic hand grips
  • Optional SideComm® communications package, which includes nurse call,
  • TV/radio, speaker, and adjustable volume controls
  • Central Brake and Steer system with 4-wheel braking, 1 locking steer caster, and integrated headboard handles for steering control
  • Battery backup for temporary adjustments when the bed is not near a power outlet

ADDITIONAL FEATURES:

  • Battery Backup
  • Automatic Night Light
  • Lift-off or Stow and Go
  • Foot Section
  • Automatic Seat Tilt
  • V-cut or Straight Edge Surface
  • 4 Locking Castors
  • Fluid Basin
  • Central Brake and Steer
  • Instant CPR Release
  • Lockout Control and Indicator
  • Labour Grips
  • OneStep Siderail Release
  • Trendelenburg Positioning
  • Foot Supports

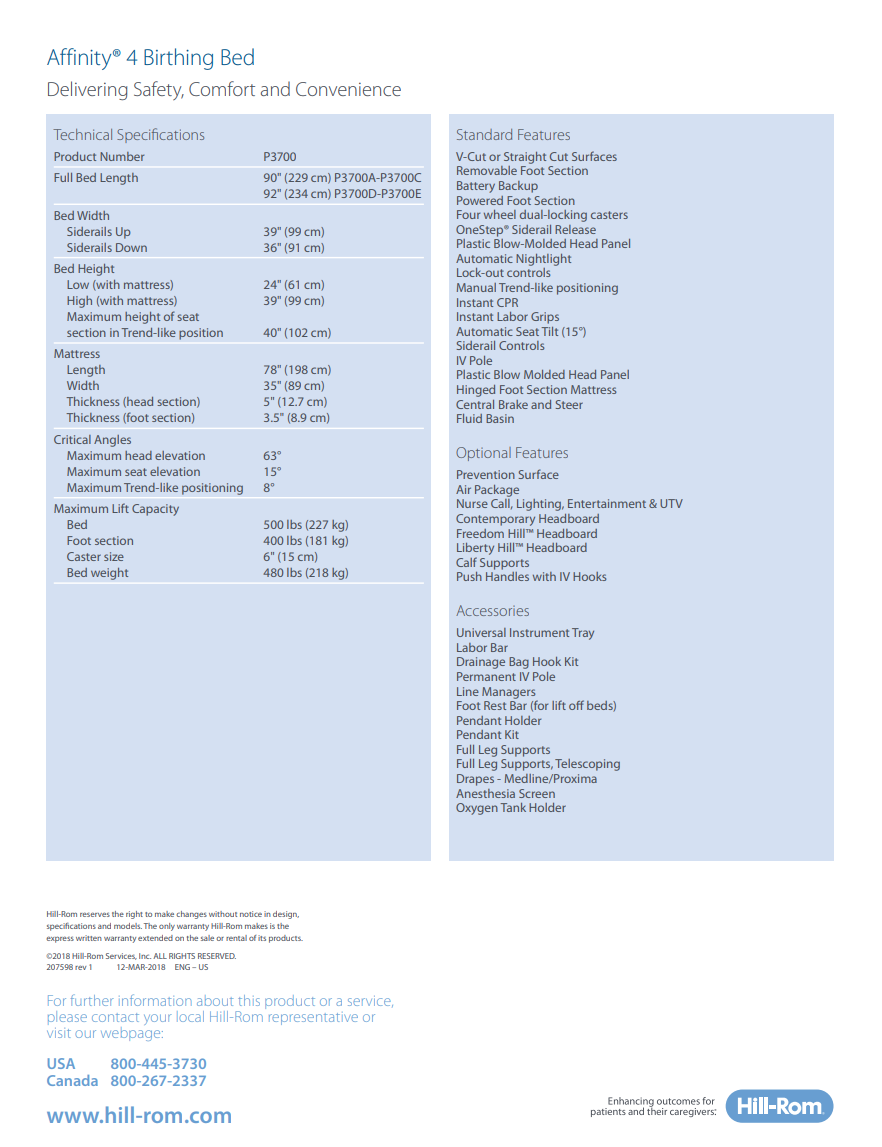

SPECIFICATIONS:
  • Manufacturer: Hillrom
  • Part Number (OEM): P3700
  • Category: Birthing Beds
  • Accessories: None
  • Functional Condition: Refurbished
  • Cosmetic Condition: Good
    • Paint Wear
    • Scratches
  • Warranty: 30 Days

  • General:
    • Safe Working Load Weight: 500lbs (227 kg)
    • Maximum Patient Weight: 470lbs (213 kg)
    • Castors: 6 in (15 cm)
    • Bed Weight: Lift-off: 478.4 lbs. (217 kg)
    • Stow and Go Weight: 511.4 lbs. (232 kg)

  • Maximum Lift Capacity:
    • Bed: 500lbs. (227 kg)
    • Foot Section: 400lbs. (181 kg)

  • Bed Length:
    • Length: 92.125 in (234 cm)

  • Bed Height:
    • Low (With mattress): 22 in (56 cm)
    • High (With mattress): 38.2 in (97 cm)
    • Maximum Height of Seat in Trendelenburg: 40.2 in (102 cm)

  • Bed Width:
    • Siderails Up: 470lbs (99 cm)
    • Siderails Down: 470lbs (91 cm)

  • Mattress:
    • Length: 78 in (198 cm)
    • Width: 35 in (89 cm)
    • Thickness (Head section): 5 in (12.7 cm)
    • Thickness (Foot section): 3.5 in (8.9 cm)

  • Critical Angles:
    • Maximum Head Elevation: 63°
    • Maximum Seat Elevation: 15°
    • Maximum Trendelenburg Positioning: 8°

ACCESSORIES:

  • Anaesthesia Screen
  • ISS System
  • Labour Bar
  • Calf Supports – Attached
  • Oxygen Tank Holder
  • Calf Supports – Telescoping
  • Pendant Control
  • Disposable Drapes
  • Permanent IV Pole
  • Foley Hook Kit
  • Sheets
  • Full Leg Supports – Attached
  • Slip Cover – Foot Section
  • Full Leg Supports – Telescoping
  • Slip Cover – Head Section

OPTIONS:

  • Air Support System
  • Variety of Wooden Headboards
  • Sidecom™ Communication Controls
  • Pressure redistribution foam mattress
  • Ergonomic push handles with integrated IV pole cradle
  • Integrated line managers
  • Integrated permanent IV poles
