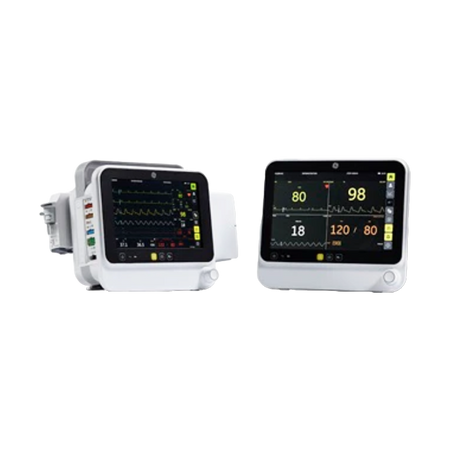

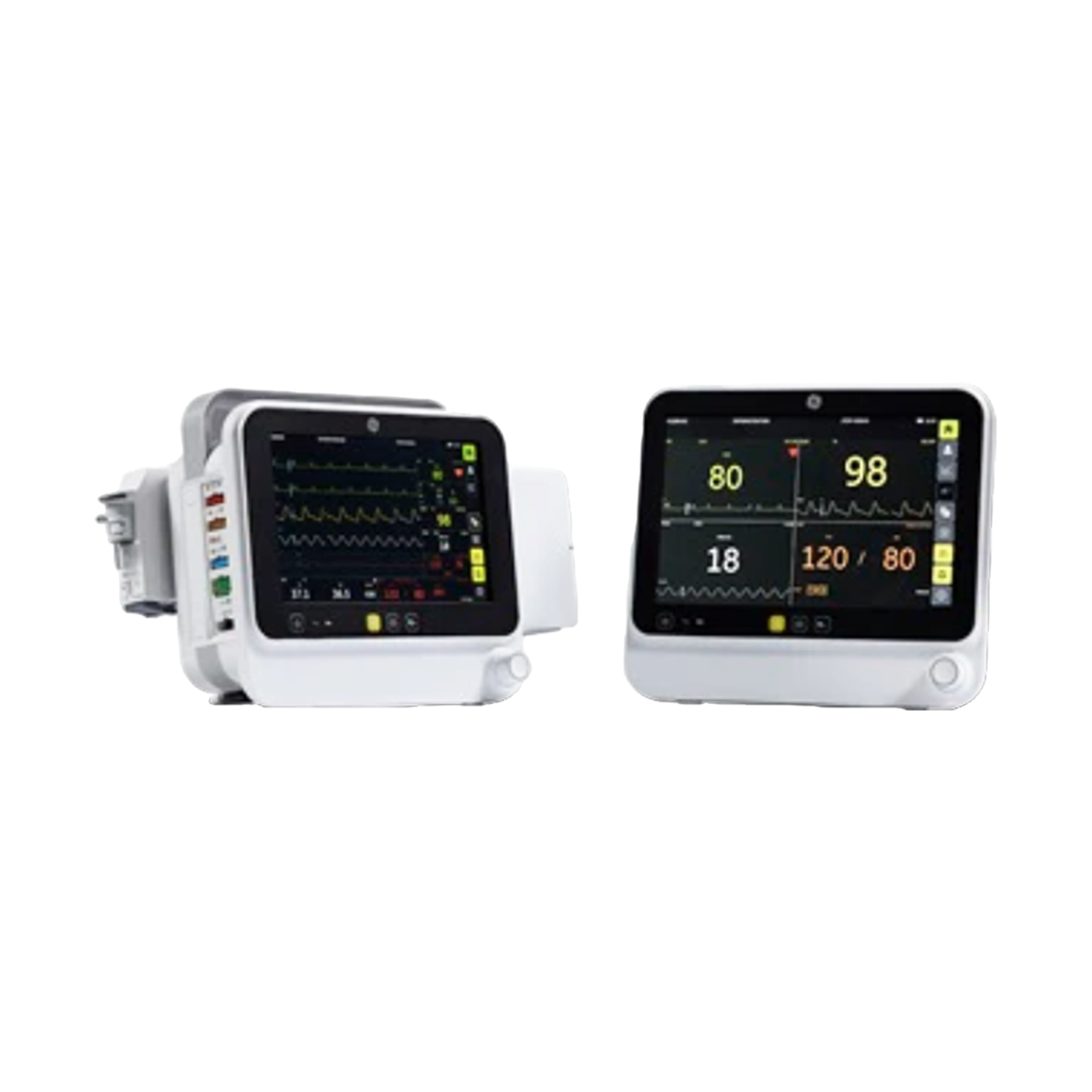

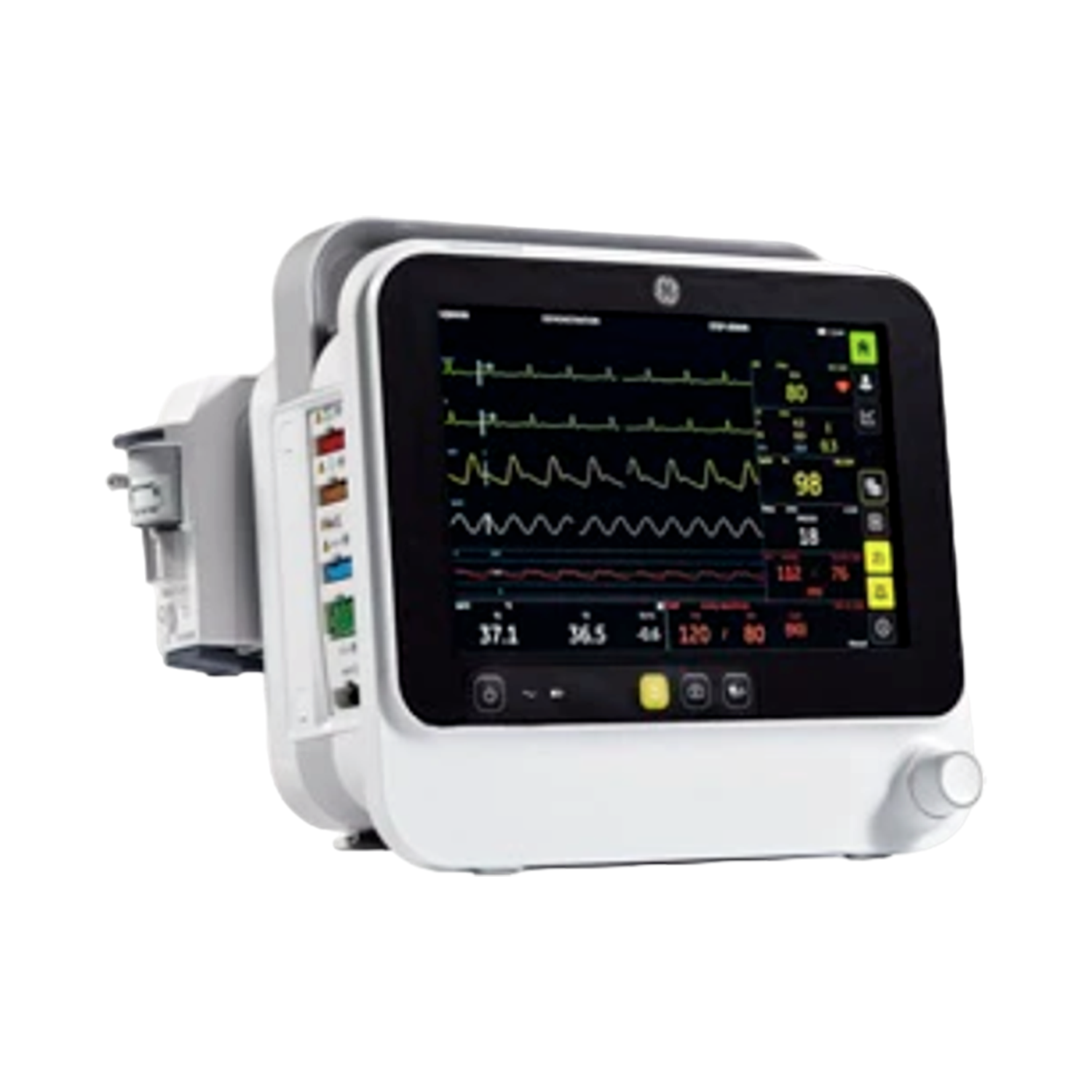

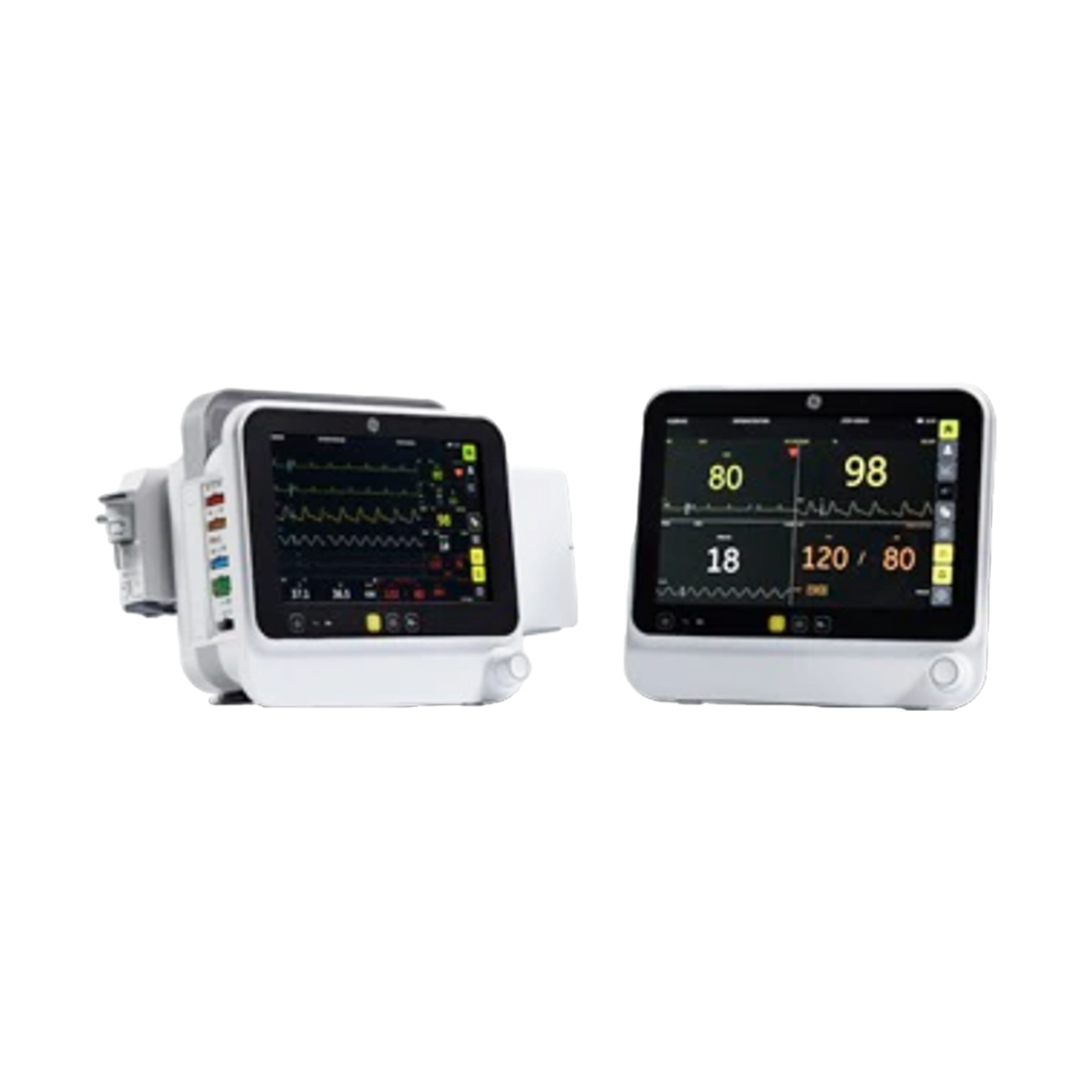

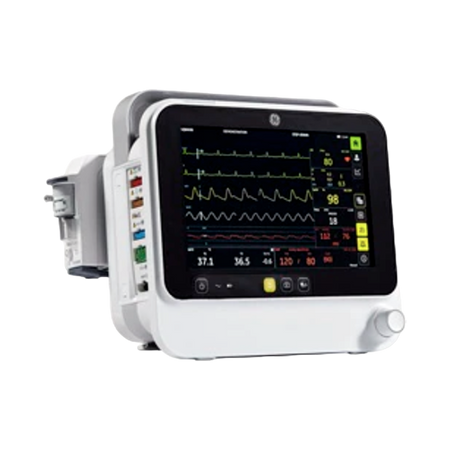

GE B125 Patient Monitor w/ Masimo SpO2

The GE B125 stands as one of GE's latest additions to patient monitors. This monitor is highly regarded for its straightforward design, featuring a spacious 12-inch captive touch screen. This design enhances the ability of caregivers to swiftly interpret and adjust patient data as needed. The large, easy-to-read numerical values and continuous waveforms are visible from various angles, facilitating efficient monitoring.

The monitor comes equipped with advanced parameter monitoring, including ST-segment analysis, full arrhythmia analysis, TruSignal SpO2, SuperSTAT NIBP, IBP, respiratory rate, 3 or 5 Lead ECG, and EtCO2 measurements. Notably, the GE B125 can function both as a stand-alone monitor and as part of a network when used in conjunction with other devices, offering flexibility and adaptability to varying clinical needs.

FEATURES:

• ST-Segment and full Arrhythmia analysis, SpO2, NIBP, IBP, RR, ECG, and EtCO2.
• Records and stores up to 168 hours of monitoring activities across all parameters.
• Analyses up to 16 types of arrhythmia including AFib.
• Three-hour battery life for optimal uninterrupted monitoring.
• A large numeric mode that enables critical parameter visibility even up to 13-feet away.
• 12.1" Display

SPECIFICATIONS:

• Manufacturer: GE
• Part Number: (OEM): B125
• Category: Patient Monitor
• Condition: New/Refurbished
• Weight: 9.6lbs.
• Warranty: 3 Months


• Dimensions
  • Height: 11 in (280 mm)
  • Width: 12.5 in (317 mm)
  • Depth: 5.9 in (150 mm)
  • Weight: 9.5lbs (4.3kg) (with battery)


• Display:

• Size: 12.1 in (diagonal)
• Resolution: 1280 x 800 pixels
• Number of waveforms: Up to 6
• Display layout and Color: User-configurable
• Controls: Capactive Touch Screen & trim knob control and hand keys


• ECG:

• Leads available:
  • 3 lead configuration: I, II, III
  • 5 Lead configuraton: I, II, III, aVR, aVf and V
• Sweep speed: 12.5, 25 or 50 mm/s
• Gain range: 0.5x, 1x, 2x and 4x
• Heart rate accuracy 30 to 300 bpm, ± 5% or ±5 bpm, whichever is greater
• Bandwith: 50/60 Hz power supply
  • Monitor: 0.5 to 40 Hz
  • ST: 0.05 to 40 Hz
  • Diagnostic: 0.05 to 145 Hz
• Pacemaker detection
  • Range: 2 to 700 mV
  • Pulse width: 0.5 to 2 ms
• ST-Aaegment Analysis
  • Numeric Range:-9 to +9 mm (-0.9 to +0.9 mV)
  • Accuracy: ± 0.2mm or ±10%, whichever is greater
  • ST Trend: up to 168 h
• Impedance respiration: range adult - pediatric: 4 to 120 respiratory/min
• Impedance respiration: range neonate: 4 to 180 resp/min


• SpO2:

• GE Ohmeda SpO2
  • Measurement range, Pulse Oximetry: 1 to 100%
  • Pulse rate: 30 to 250 bpm
  • Measurement accuracy - saturation
    • Without Motion-Adult/Pediatric Finger sensor: 70 to 100% ± 2%
    • Without Motion-Neonate: 70 to 100% ± 3%
    • With Motion-Adult/Pediatric/Neonate: 70 to 100% ± 3%
    • Low Perfusion-Adult/Pediatric: 70 to 100% ±3% (1~69% unspecified)
  • Pulse rate: without motion: ± 2 bpm ( Adult/ Pediatric/ Neonate)
• Nellcor Oximax
  • Measurement Range - Pulse Oximetry: 1 to 100%
  • Pulse Rate: 20 to 250 bpm
  • Measurement accuracy - saturation:
    • Adult: 70 to 100% ±2%
    • Neonatal: 70 to 100% ±3%
    • Low Perfusion: 70 to 100% ±2% (0~69% unspecified)
  • Pulse rate: 20 to 250 bpm
• Masimo
  • Measurement Range - Pulse Oximetry: 1 to 100%
  • Pulse Rate: 20 to 250 bpm
  • Measurement accuracy - Saturation
    • Without Motion-Adult/Pediatric: 70 to 100% ±2%
    • Without Motion-Neonate: 70 to 100% ±3%
    • With Motion-Adult/Pediatric/Neonate: 70 to 100% ±3%
    • Low Perfusion: 70 to 100% ±2%(0~69% unspecified)
  • Pulse Rate without motion: ±3 bpm
  • Pulse rate with motion: ±5bpm


• NiBP:

• Measurement Technique: Oscillometric with step deflation
• Modes: Manual, automatic, and slat
• NIBP Measurement Range:
  • Systolic Adult / Pediatric: 30 to 290 mmHg
  • Systolic Neonates: 3 to 140 mmHg
  • MAP Adult / Pediatric: 20 to 250 mmHg
  • Diastolic adult / pediatric: 1o to 22 mmHg
  • Diastolic neonate: 10 to 11o mmHg
  • Defat initial inflation pressure
    • Adult / Pediatric: 135 ±15 mmHg
    • Neonate: 100 ±15 mmHg
  • Maximum Determination Time
    • Adult/ Pediatric : 2m
    • Neonate: 85 s
  • Over Pressure Monitor
    • Adult /Pediatric: 294 ±6 to 330 mmHg
    • Neonate: 147 ±3 to 165 mmHg
• Paper Recorder: (Optional)

• Method: Thermal dot array
• Horizontal Resolutions: 24 dots/mm (600 dpi)
• Vertical Resolution: 8 dots/mm (200 dpi)
• Waveforms Selectable: 1, 2, or 3 waveforms
• Numerics: HR, SpO2, NIBP, IBP1, IBP2, EtCO2/FiCO2, T1, T2, Resp
• Graphical Trend Printout: HR, ST, IBP1, IBP2, NIBP, SpO2, Pleth, CO2, Resp, T1+T2
• Paper width: 50 mm, printing width 48 mm
• Paper Speed: 6.25, 12.5, 25 mm/s


• Operating Conditions:

• Temperature: 5 to 40°C (41 to 104°F)
• Relative Humidity: 20 to 90% noncondensing
• Atmospheric Pressure: 700 to 1060 hPa (525 to 795 mmHg)


• Storage and Transport Conditions:

• Temperature: -20 to 60°C (-4 to 140°F)
• Relative Humidity: 10 to 90% noncondensing
• Atmospheric Pressure: 700 to 1060 hPa (525 to 795 mmHg)


• Power Specifications:

• AC Input: 100 to 240V ±10%, 50/60 Hz, 150VA
• Protection: Class I
• Battery: Exchangeable lithium-ion, 1 pcs max
• Charging Time: < 4 h to 90% capacity
• Run Time: > 3 h
