Home » Covidien/Valleylab FX8 Electrosurgical Generator
Covidien / Valleylab

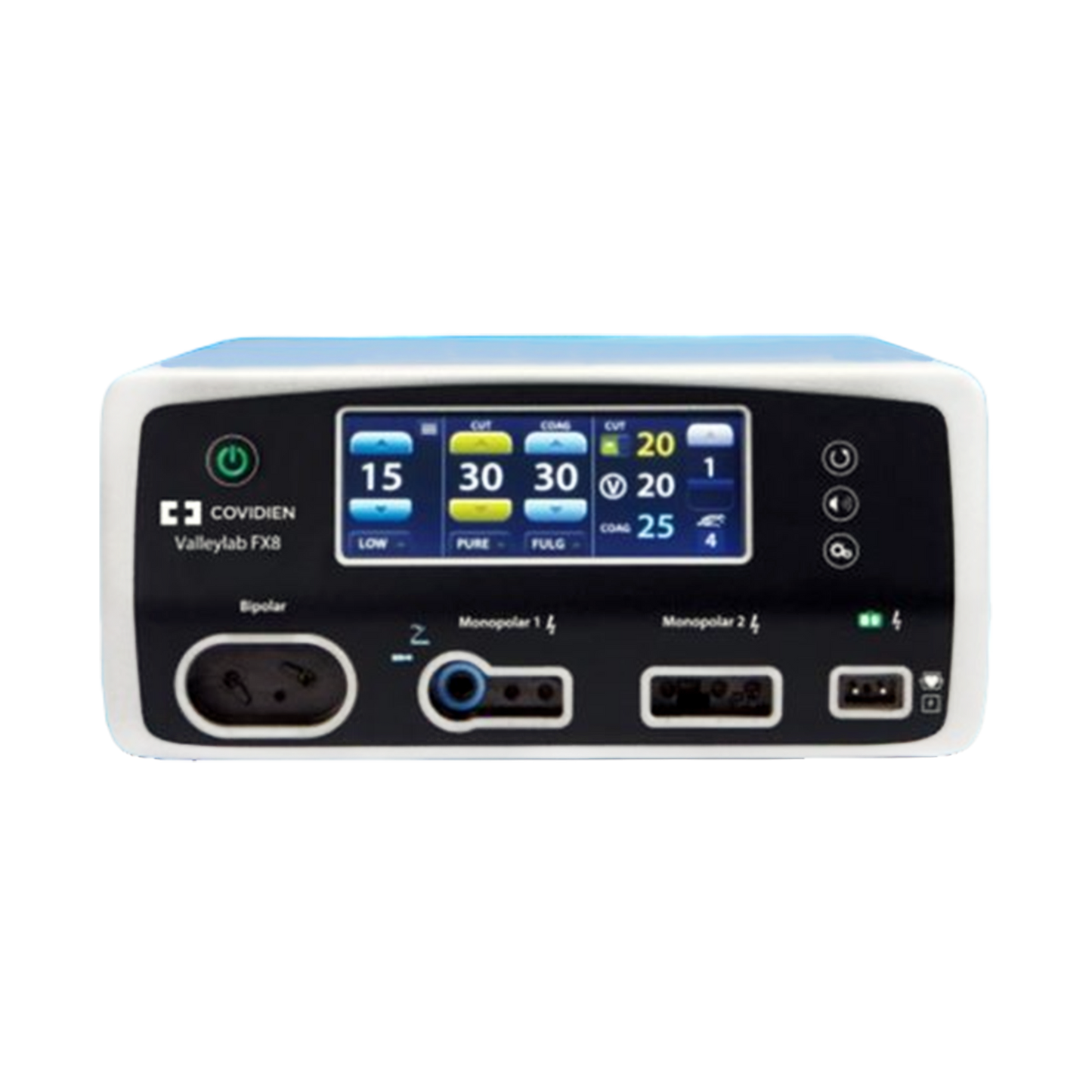

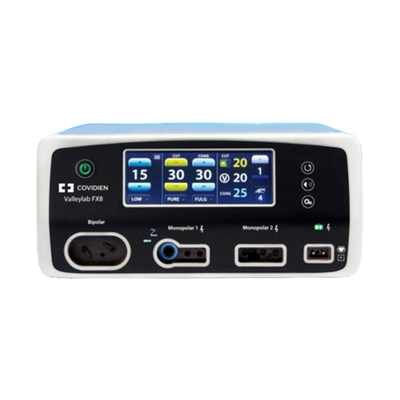

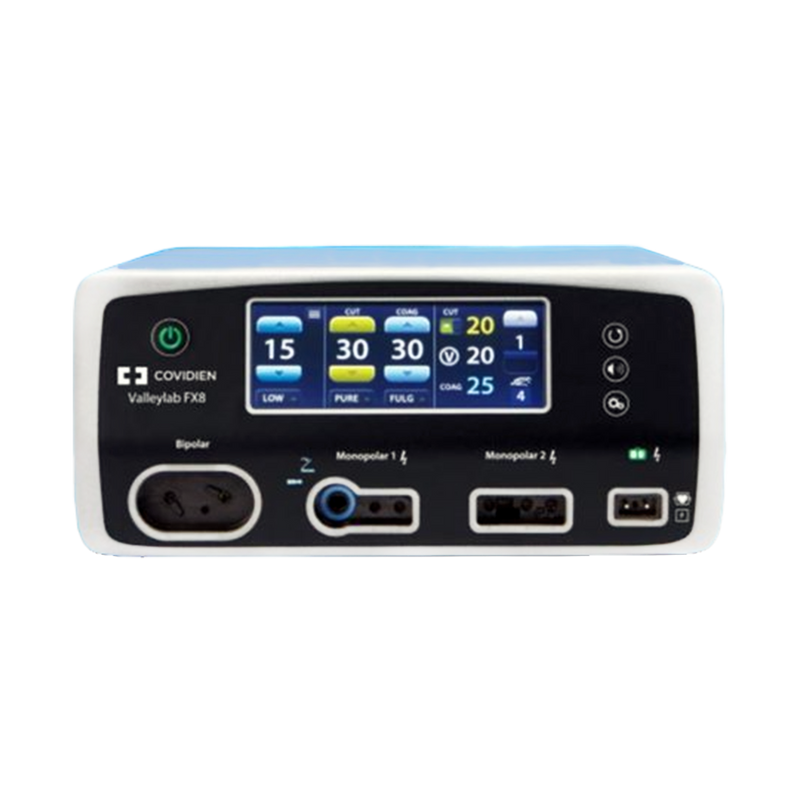

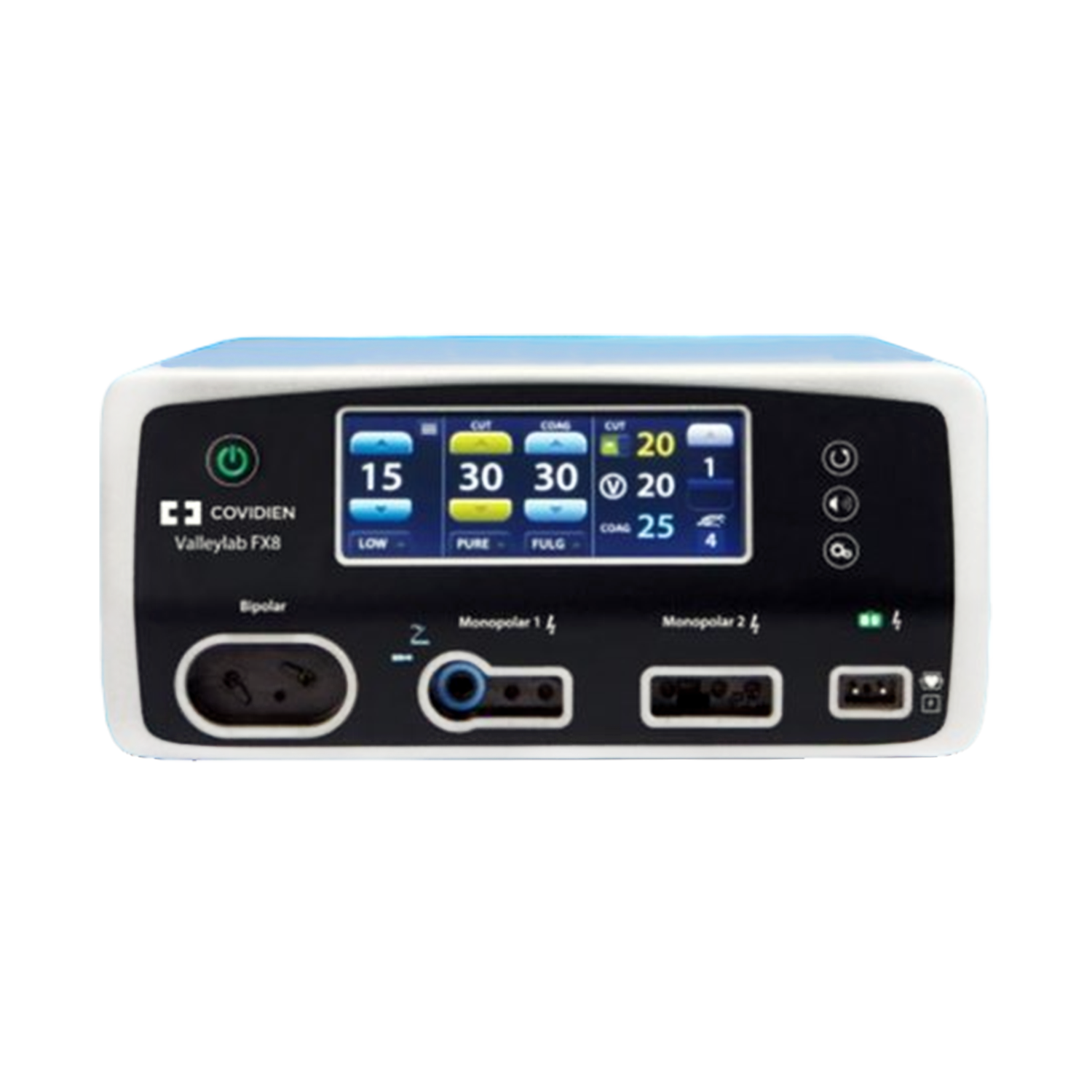

Covidien/Valleylab FX8 Electrosurgical Generator

SKU: EN-VL-FORCEFX8
(0)
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 12 Months
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The Covidien Valleylab FX8 represents a source of energy that is managed by an electrosurgical unit. This energy platform, known as the Valleylab FX8, utilizes TissueTect, an innovative technology that detects and adapts to different types of tissue. The FX8 serves as the predecessor to the Medtronic Valleylab FT10 Energy Platform. Within the Valleylab energy source, users have access to various modes including cutting, coagulation, and soft coagulation. Moreover, this energy source facilitates shared coagulation, enabling two surgeons to operate simultaneously on a single patient.

FEATURES:

  • Valleylab mode provides a unique combination of monopolar hemostasis and division
  • TissueFect technology to ensure the precise energy is delivered for the correct type of tissue
  • Shared coag mode allows for two surgeons to work at once on a patient
  • Precise delivery of monopolar and bipolar energy
  • Power control during monopolar energy delivery that’s five times better than the
  • Force Triad Energy Platform
  • Tissue monitoring that’s 2600 times faster than the Force FX Electrosurgical Generator

    SPECIFICATIONS:

    • Manufacturer: Covidien/Valleylab
    • Part Number: (OEM): VALLEYLAB FX8
    • Category: Electrosurgical Units
    • Condition: Refurbished
    • Weight: 19.5lbs.
    • Warranty: 3 Months

    • Dimensions:
      • Height: 14.6 cm (5.73 in)
      • Width: 33.5 cm (13.18in)
      • Length: 43.6cm (17.15in)
      • Weight: 8.8kg (19.5lb)

    • General:
      • Output configuration: Isolated output
      • Cooling: Natural convection and fan
      • Display: 15.7 cm (6.2 in) LCD touchscreen
      • Enclosure: Magnesium
      • Mounting
        • Valleylab™ universal generator cart (VLFTCRT)
        • Operating room boom systems
        • Any stable, flat surface such as a table or cart top

    • Operating Parameters:
      • Ambient temperature range: 10°C to 40°C (50°F to 104°F)
      • Relative humidity: 15% to 85% non-condensing
      • Atmospheric pressure: 700 to 1060 millibars

    • Temperature & Storage:
      • Ambient temperature range: -10°C to 60°C (14°F to 140°F)
      • Relative humidity: 15% to 90% non-condensing
      • Atmospheric pressure: 500 to 1060 millibars

    • Input Power 100-127 VACe:
      • Line Ranges
        • Line Voltage Full Regulation Range: 90–140 VAC
        • Line Frequency: 47–63 Hz
      • Max VA Nominal Line Voltage: 660 VA
      • Max Mains Current: 6.6 ARMS
      • Max Heat Dissipation 180 W
      • Fuses
        • 10 A
        • Fuses (2) – 5 mm x 20 mm
        • 10 A, 250 V fast blow

    • Input Power 220-240 VAC:
      • Line Ranges
        • Line Voltage Full Regulation Range: 198-264 VAC
        • Line Frequency: 47–63 Hz
      • Max VA Nominal Line Voltage: 660 VA
      • Max Mains Current: 3.0 ARMS
      • Max Heat Dissipation 180 W
      • Fuses
        • 6.3 A
        • Fuses (2) – 5 mm x 20 mm
        • 6.3 A, 250 V fast blow
