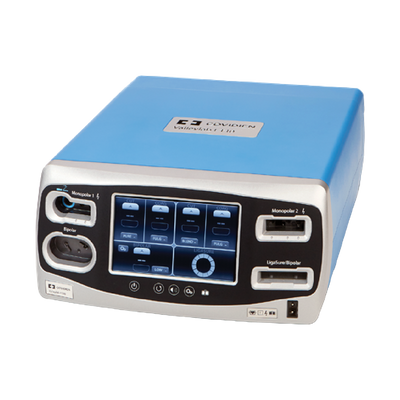

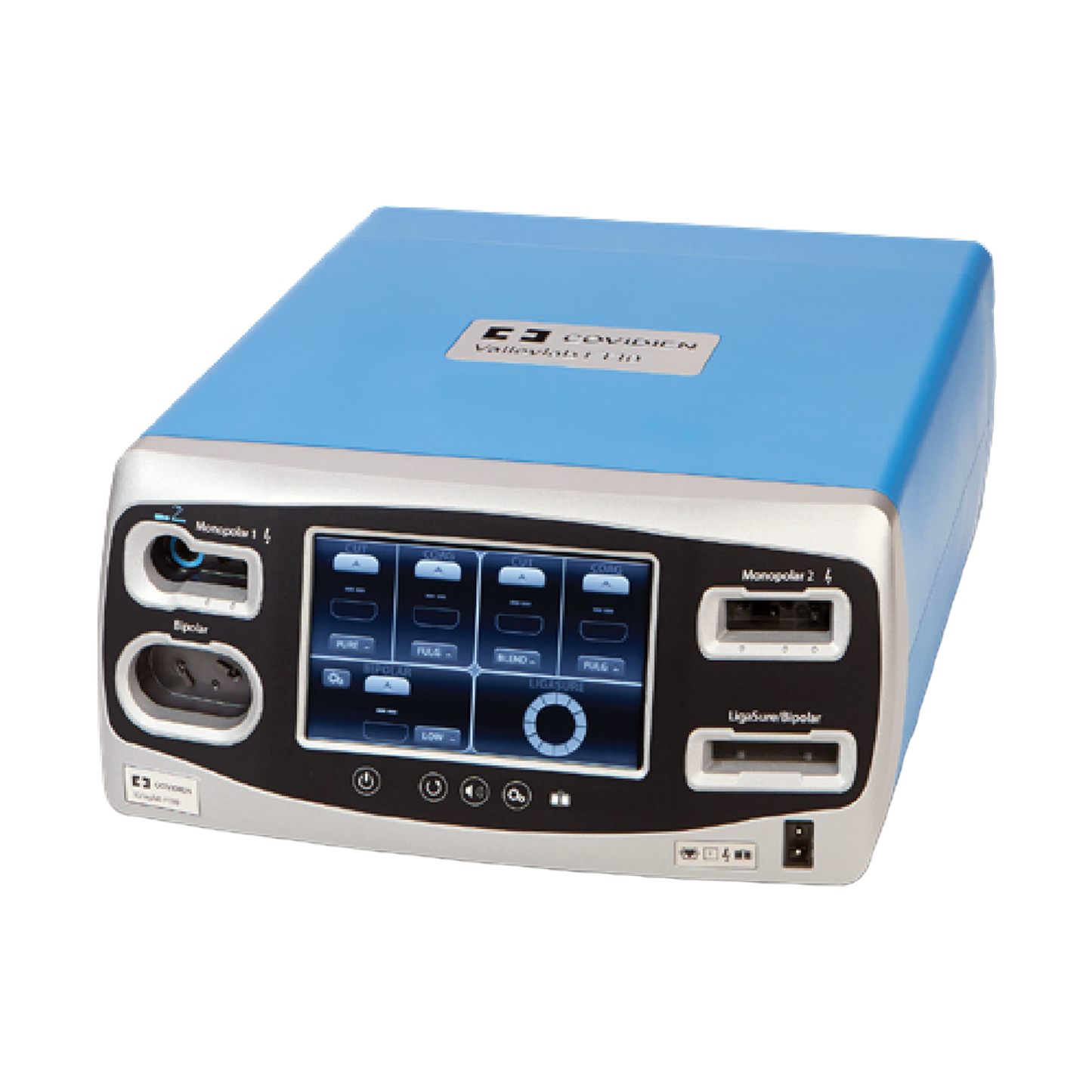

Covidien/Valleylab FT10 Platform Electrosurgical Generator

The Covidien Valleylab FT10 Energy Platform is an advanced electrosurgical generator designed to enhance surgical efficiency and precision. It incorporates cutting-edge technology and features that cater to both monopolar and bipolar applications.

The Valleylab FT10 is suitable for a wide range of surgical procedures, including laparoscopic and open surgeries. Its ability to deliver precise RF energy enhances both tissue cutting and vessel sealing, making it a versatile tool in modern surgical practice.

FEATURES:

• 7-Inch LCD Touchscreen:
  • The user-friendly interface is divided into four sections, allowing for easy navigation and real-time monitoring of surgical parameters.
• Smart TissueFect Technology:
  • This innovative tissue sensing technology reads tissue composition in real time at a rate of 434,000 times per second, optimizing energy delivery based on tissue impedance. This capability enhances both cutting and coagulation performance.
• Faster Sealing Times:
  • The FT10 can achieve sealing times that are up to 50% faster than previous models, significantly improving surgical efficiency. For example, when paired with LigaSure devices, sealing times can be reduced from 2-4 seconds to just 1-2 seconds.
• Enhanced Performance for Monopolar and Bipolar Applications:
  • The platform supports both monopolar and bipolar surgical techniques, offering improved performance across various modes.
• Autobipolar Activation:
  • This feature allows for quicker activation times in bipolar applications, streamlining the surgical process.
• Choice of Surgical Modes:
  • Soft Coagulation Mode:
    • Slower desiccation with deeper thermal penetration.
  • Valleylab Mode:
    • A combination of monopolar hemostasis and division that minimizes thermal spread.
  • Shared Coagulation Mode:
    • Allows two surgeons to operate simultaneously on a patient using a single energy platform.
• Automatic Detection of Handsets:
  • The generator automatically detects coded handsets and configures itself, accordingly, ensuring optimal performance with minimal setup.
• Improved Monopolar Performance:
  • Enhanced capabilities for cutting and coagulation provide greater control during procedures.


SPECIFICATIONS:

• Physical Specifications:
  • Height:
    • 7.0 in (17.78 cm)
  • Width:
    • 14.5 in (35.8 cm)
  • Depth:
    • 18.2 in (46.2 cm)
  • Weight:
    • 22.3lb (10.1 kg)
• Performance Specifications:
  • Monopolar Modes:
    • Cut, Pure Mode:
      • Power Range:
        • Off, 1–300 W
      • Peak Voltage:
        • 1287 V
    • Cut, Blend Mode:
      • Power Range:
        • Off, 1–200 W
      • Peak Voltage:
        • 2178 V
    • Valleylab Mode:
      • Power Range:
        • 5–85 W
      • Peak Voltage:
        • 2783 V
    • Coagulation Modes:
      • Soft Coagulation:
        • Off, 1–120 W (Peak Voltage: 264 V)
        • Fulgurate Mode:
          • Off, 1–120 W (Peak Voltage: 3449 V)
        • Spray Mode:
          • Off, 1–120 W (Peak Voltage: 3933 V)
    • Bipolar Modes:
      • Low:
        • Power Range:
          • Off, 1–15 W
        • Peak Voltage:
          • 133 V
      • Medium:
        • Power Range:
          • 16–40 W
        • Peak Voltage:
          • 214 V
      • High:
        • Power Range:
          • 45–95 W
        • Peak Voltage:
          • 462 V
    • Ligasure Tissue Fusion:
      • Peak Voltage:
        • 244 V
    • Bipolar Resection Effect:
      • Cut Power Range:
        • 1–6 (Peak Voltage: 742 V)
      • Coag Power Range:
        • 1–6 (Peak Voltage: 318 V)
• Electrical Specifications:
  • Input Power:
    • 100-127 VAC:
      • Line Voltage Full Regulation Range:
        • 90–140 VAC
      • Line Frequency:
        • 47-63 Hz
      • Max VA Nominal Line Voltage:
        • 950 VA
      • Max Mains Current:
        • 9.5 ARMS
      • Max Heat Dissipation:
        • 180 W
    • 220-240 VAC:
      • Line Voltage Full Regulation Range:
        • 198-264 VAC
      • Line Frequency:
        • 47-63 Hz
      • Max VA Nominal Line Voltage:
        • 950 VA
      • Max Mains Current:
        • 4.8 ARMS
      • Max Heat Dissipation:
        • 180 W
• Environmental Parameters:
  • Operating Temperature:
    • Range of 50 to 104 °F (10 to 40 °C)
  • Operating Humidity:
    • Range of 30% to 75% non-condensing
  • Transport and Storage Temperature:
    • Range of 14 to140 °F (-10 to +60 °C)
  • Transport and Storage Humidity:
    • Range of 25% to 85% non-condensing
• Internal Memory:
  • Storage Capacity:
    • 8 GB
• Display and Interface:
  • Display Type:
    • 7-inch LCD touchscreen

COMPATIBILITY:

• Surgical Instruments:
  • The FT10 is compatible with both monopolar and bipolar surgical instruments, allowing it to be used for a wide variety of procedures. This includes cutting, coagulation, and tissue fusion applications.
• LigaSure Devices:
  • The FT10 significantly enhances the performance of LigaSure vessel-sealing devices, reducing sealing times by up to 50%Mcompared to previous platforms. This makes it particularly effective for procedures that require rapid sealing to minimize blood loss and improve patient outcomes.
• Automatic Detection:
  • The FT10 platform can automatically detect coded handsets, configuring itself accordingly to optimize performance with connected devices. This feature ensures that the generator delivers precise energy tailored to the specific instrument being used.
• Footswitches and Accessories:
  • It supports various footswitches, including the Valleylab Bipolar Standard Footswitch (REF E6009) and other compatible footswitch models. Additionally, it can be paired with a universal generator cart (REF VLFTCRT) for easy mobility in surgical environments.
• Supported Modes:
  • The Valleylab FT10 offers multiple operational modes to cater to different surgical needs:
    • Monopolar Modes:
      • These include Pure Cut, Blend Cut, Valleylab Mode, and various coagulation modes (Soft, Fulgurate, Spray).
    • Bipolar Modes:
      • It features low, medium, and high settings for coagulation, allowing for precise control depending on the tissue type and surgical requirements.
    • Specialized Modes:
      • Unique modes like Soft Coagulation and Shared Coagulation allow for more controlled energy delivery and simultaneous use by multiple surgeons.

ACCESSORIES:

• Valleylab FT10 Generator:
  • The main unit that provides electrosurgical capabilities, featuring advanced technology for precise energy delivery.
• Power Cord:
  • A hospital-grade power supply cord essential for operating the generator.
• Adaptor:
  • Allows the use of various Covidien instruments multiple times, enhancing versatility.
• Valleylab FT10 Universal Generator Cart (REF VLFTCRT):
  • A mobile cart designed to hold the generator and manage cords, featuring multiple shelves and storage options.
• Footswitches:
  • Valleylab Bipolar Standard Footswitch (REF E6009):
    • Compatible with the FT10 for bipolar applications.
  • Valleylab Monopolar Footswitch (REF E6008):
    • Used for monopolar procedures.
  • LigaSure Single Pedal Footswitch (LS0300):
    • Specifically designed for LigaSure applications, allowing quick activation.
• Bipolar Resection Accessories:
  • FT6009 Bipolar Resection Footswitch:
    • For controlling bipolar resections.
  • FT0022W Bipolar Resection Cord:
    • Connects to bipolar resection instruments.
• Mounting Options:
  • Universal Mounting Cart (UC8009):
    • Designed to hold electrosurgical generators and other devices securely.
  • Universal Mounting Cart Overshelf (UC8010):
    • Provides additional storage space above the mounting cart.
