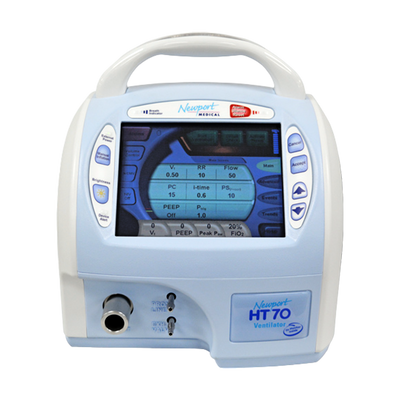

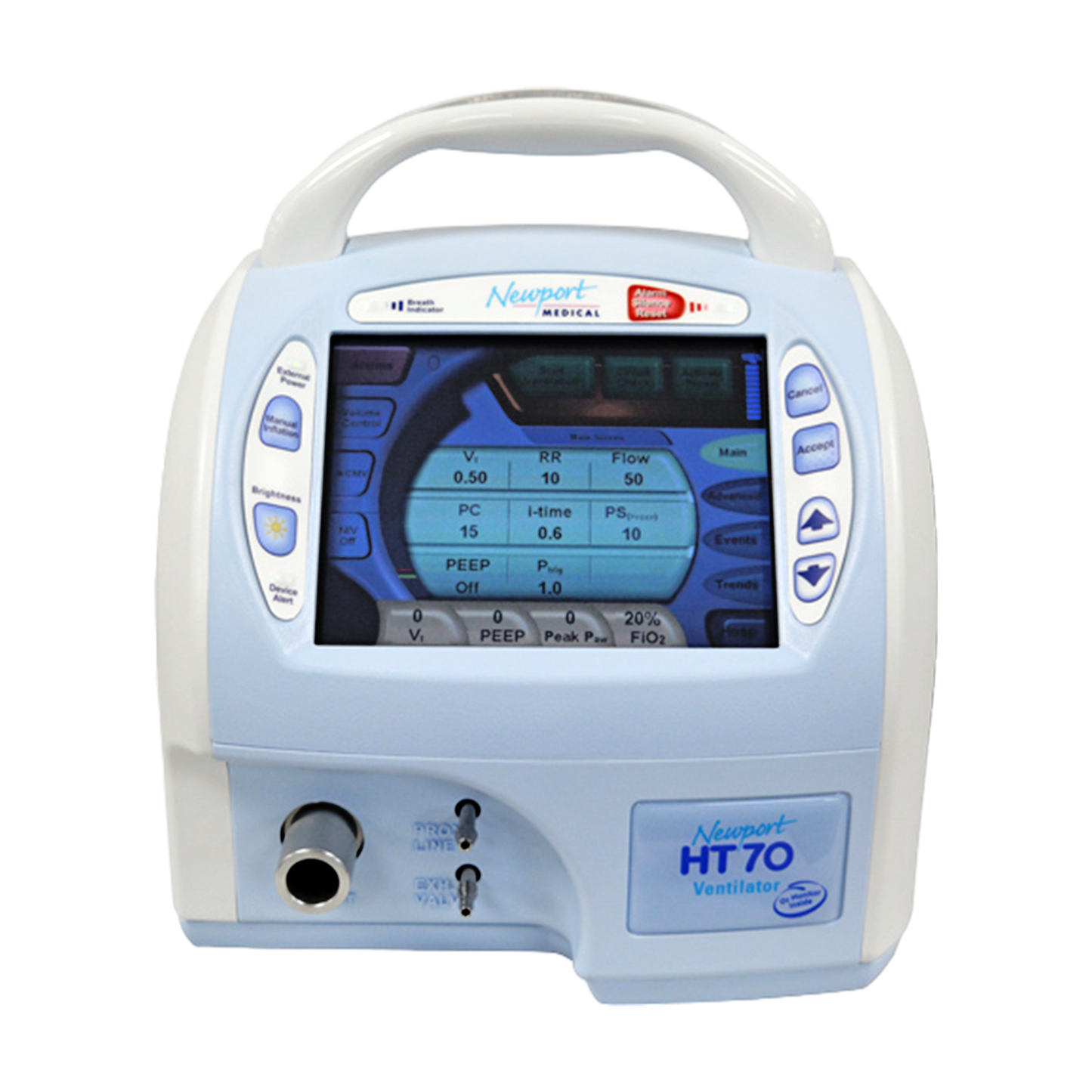

Covidien/Medtronic/Newport HT70 Respiratory Ventilator

The Newport HT70 ventilator is a versatile medical device suitable for patient ventilation in transport, emergency, and hospital settings. Offering both invasive and non-invasive ventilation options, the HT70 is designed to provide comprehensive respiratory support. One notable feature is its utilization of micro-piston technology, eliminating the requirement for external compressed gas sources.

The ventilator is equipped with a robust battery system comprising two batteries, capable of providing up to 10 hours of continuous use. Notably, these batteries can be fully recharged within a swift 3-hour timeframe, ensuring minimal downtime. The exterior of the Newport HT70 is constructed from durable polycarbonate material, rendering it virtually indestructible and well-suited for the rigors of medical environments.

FEATURES:

• On-Airway Flow Sensor:
  • Provides more ventilation options, including inspiratory or expiratory monitoring and alarms, and flow or pressure trigger.
• Hot-Swappable Battery:
  • Allows for continuous operation by replacing the battery without disrupting ventilation. The battery lasts up to 10 hours and can be fully recharged in 3 hours.
• Easy-to-Use Interface:
  • Features a full-color touch screen with specific screens for various applications, including home care, transport, and hospital settings. It also includes default or customizable presets, Alarm Quickset, and Help functions.
• Patented Micro-Piston Technology:
  • Eliminates the need for external compressed gas, making the ventilator truly portable.
• Advanced Monitoring:
  • Includes waveform graphics for flow, pressure, and tidal volume, as well as an oxygen cylinder usage calculator and internal battery use time estimator.
• Customizable Settings:
  • Offers specific screens for different applications and allows for customized patient presets.
• Alarm System:
  • Includes a variety of alarms, such as high airway pressure, low airway pressure, high respiratory rate, and low minute volume, among others.
• Specialty Screens:
  • Provides event logs, trend screens, and waveform graphics to aid in patient monitoring and management.
• Portability and Ruggedness:
  • Designed to be compact, lightweight, and durable for use in various settings, including home care, transport, hospital, long-term care, and emergency preparedness.

SPECIFICATIONS:

• Manufacturer: Covidien/Medtronic/Newport
• Part Number (OEM): Newport HT70
• Category: Anesthesia Machine
• Accessories: None
• Functional Condition: Refurbished
• Cosmetic Condition: Good
  • Paint Wear
  • Scratches
• Warranty: 30 Days
• Dimensions:
  • Width: 9.75" (24.74 cm)
  • Depth: 11" (27.94 cm)
  • Height (includes handle): 10.25" (26.04 cm)
• Weight:
  • 15.4 lbs (6.9 kg)
• Controls/Settings:
  • Modes:
    • A/CMV, SIMV, SPONT, NIV (available in all modes)
  • Tidal Volume (VT):
    • 50 to 2,200 mL
  • Respiratory Rate (RR):
    • 1 to 99 breaths/min
  • Inspiratory Time (i Time):
    • 0.1 to 3.0 sec
  • PEEP/CPAP:
    • 0 to 30 cmH2O/0 to 30 mbar
  • Pressure Support (PS):
    • 0 to 60 cmH2O/0 to 60 mbar
  • Flow:
    • 6 to 100 L/min
  • I:E Ratio:
    • 1:99 to 3:1
  • Pressure Control (PC):
    • 5 to 60 cmH2O/5 to 60 mbar
  • Trigger Sensitivity (Ptrig):
    • -9.9 to 0 cmH2O/-9.9 to 0 mbar
  • Manual Inflation:
    • 3 sec maximum
  • FIO2 (Optional):
    • +.21 to 1.00
  • Bias Flow:
    • 7 L/min with PEEP, 3 to 30 L/min (when NIV is On)
  • PS Max i time:
    • 0.1 to 3.0 sec
  • PS % Exp. Threshold:
    • 5 to 55%
  • Slope Rise:
    • 1 to 10
  • Flow Wave Pattern:
    • square or descending
• Monitored Parameters:
  • Paw (Peak, Mean, Base)
  • VT I (insp. tidal volume)
  • MV I (insp. minute volume)
  • Peak Insp. Flow
  • RR tot (total respiratory rate)
  • I:E Ratio
  • FIO2 (with optional O2 sensor)
• Alarms:
  • High/Low Airway Pressure
  • High/Low Baseline Pressure
  • High Resp. Rate
  • High/Low Insp. Minute Volume
  • Apnea
  • High/Low FIO2 (with optional O2 sensor)
  • Device Alert
  • Low Battery
