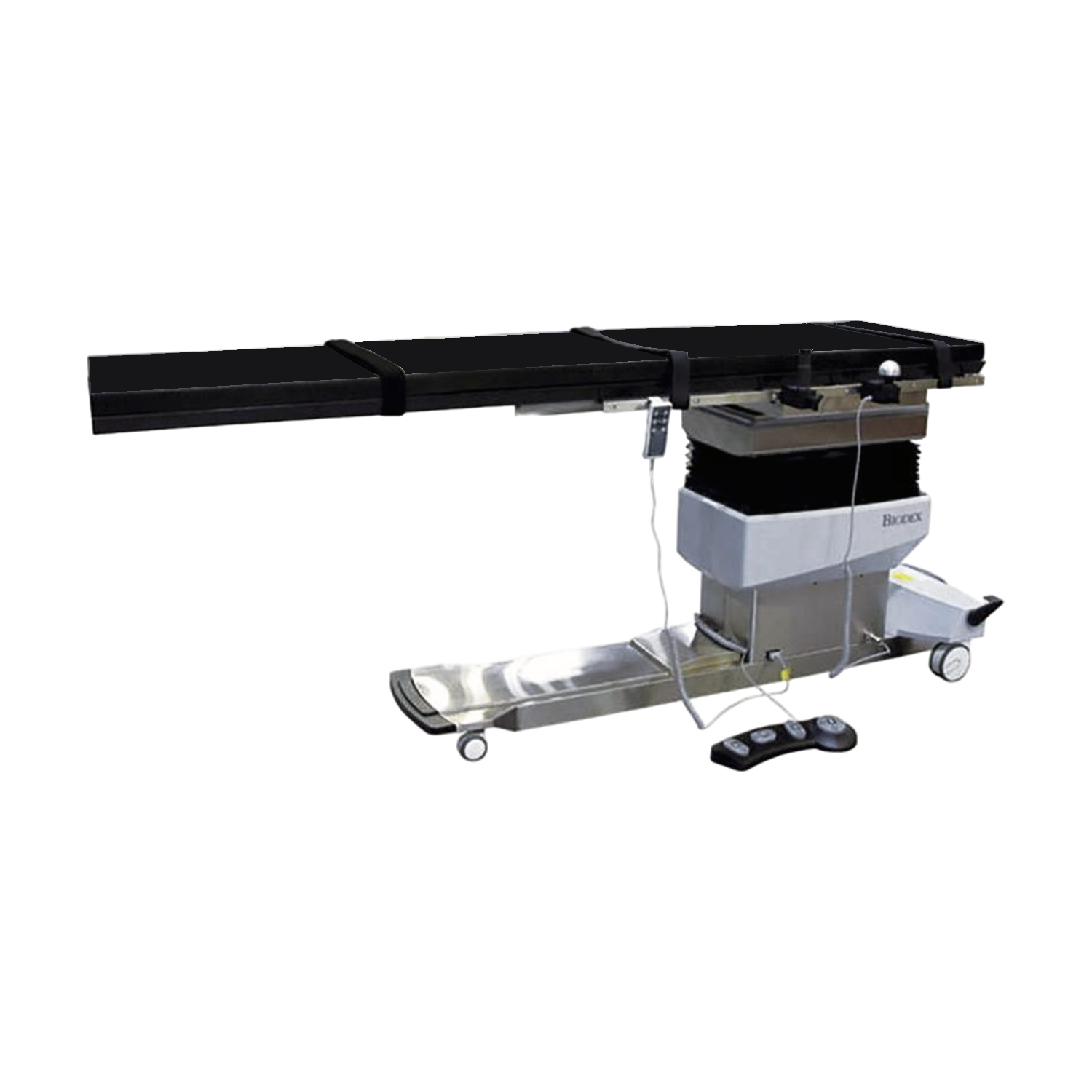

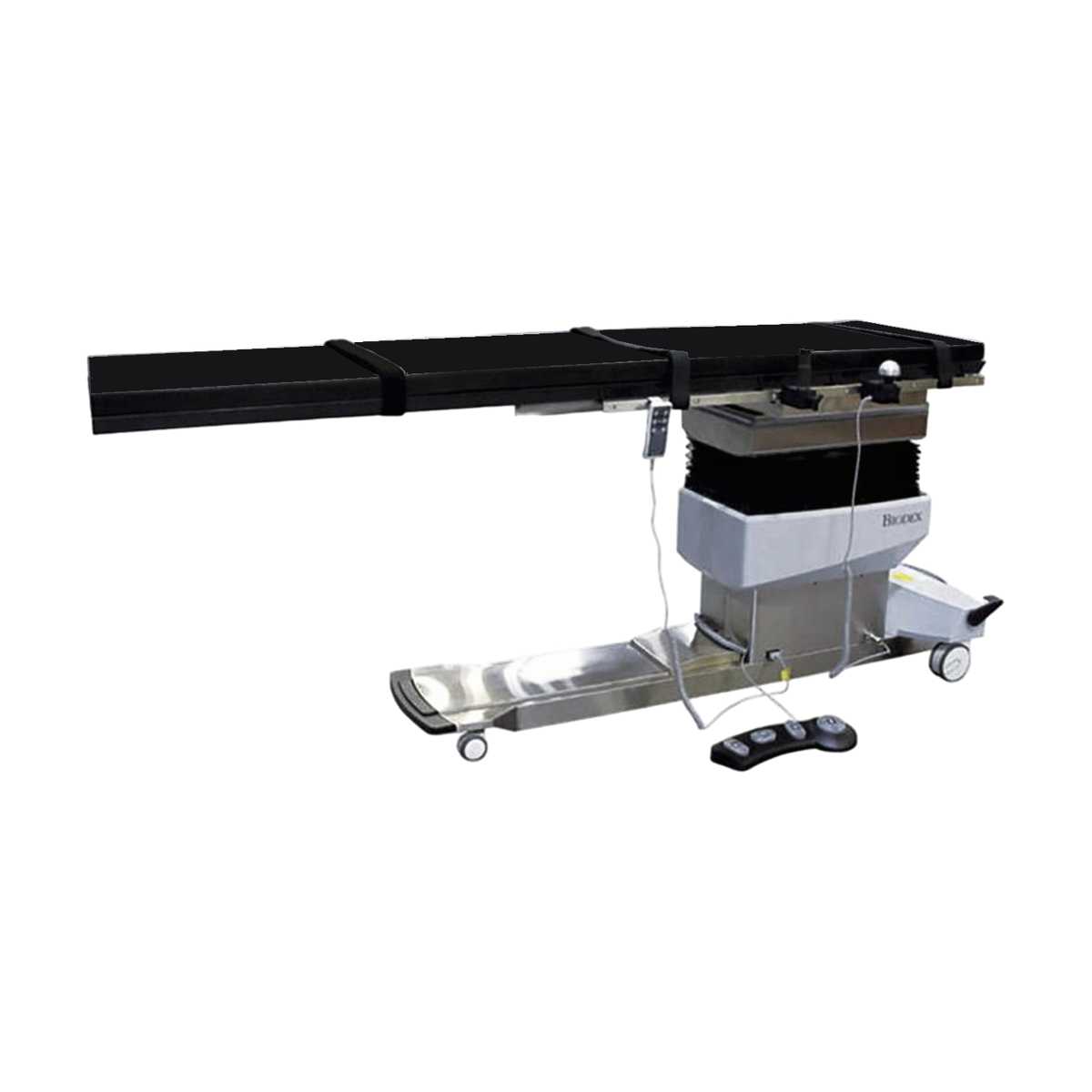

Biodex Surgical C-Arm Pain Management Table w/ Rectangular Top - 058-840-10

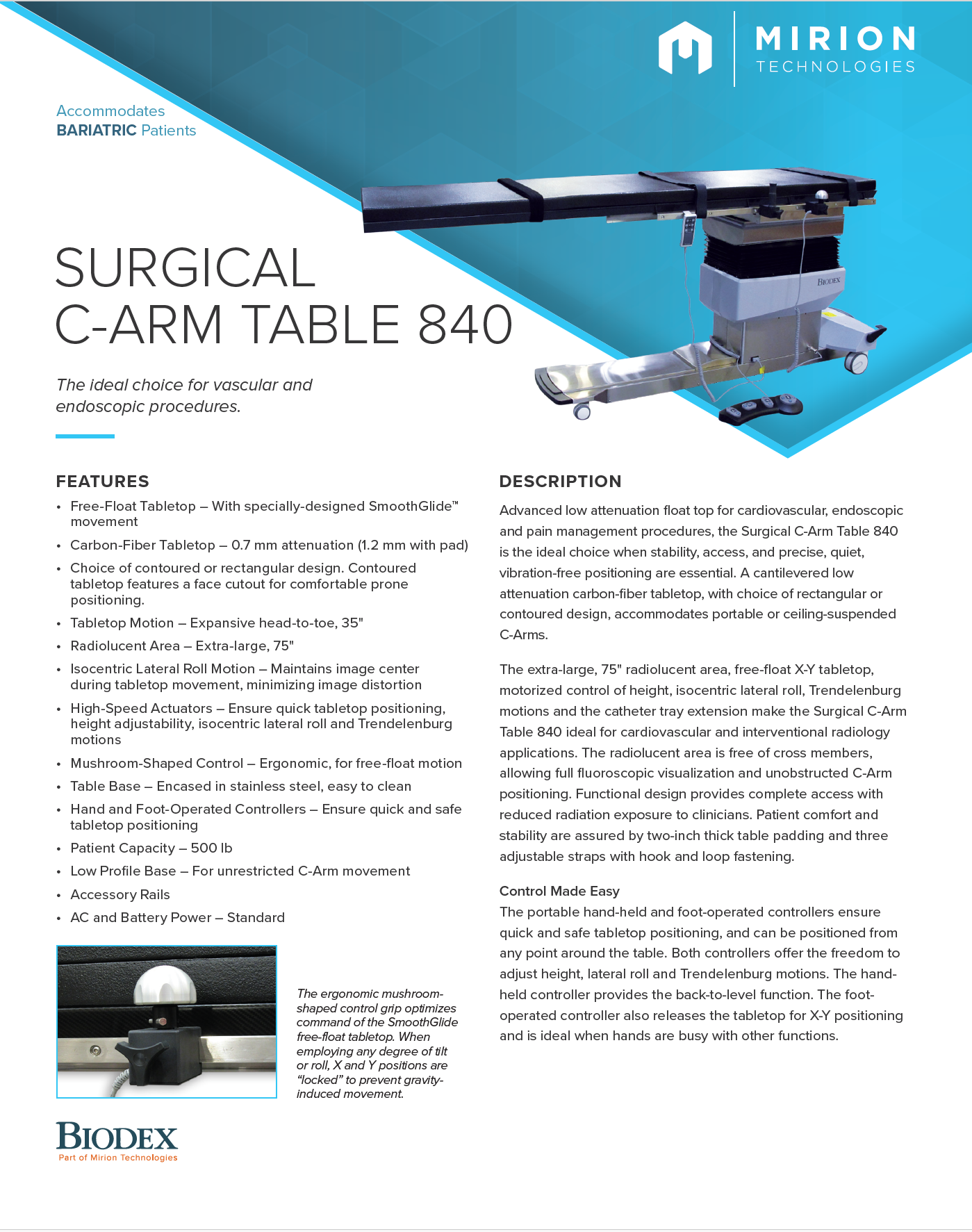

The Biodex Surgical C-Arm Table with Rectangular Tabletop - 840, 115 VAC is designed for image-guided fluoroscopic procedures, providing stability, access, and precise, quiet, vibration-free positioning. It features a cantilevered low-attenuation carbon fiber tabletop with a choice of rectangular or contoured design, accommodating portable or ceiling-suspended C-Arms. The table offers a large radiolucent area free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. It also provides patient comfort and stability with two-inch thick table padding and three adjustable features. The rectangular tabletop design offers additional space for superior image quality, making it suitable for long-leg runoff procedures.

• Low attenuation carbon fiber tabletop, with rectangular design
• Free-Float Tabletop – With specially-designed SmoothGlide™ movement
• Carbon-Fiber Tabletop – 0.7 mm attenuation (1.2 mm with pad) design
• Tabletop Motion – Expansive head-to-toe, 35"
• Radiolucent Area – Extra-large, 75"
• Isocentric Lateral Roll Motion – Maintains image center during tabletop movement, minimizing image distortion
• High-Speed Actuators – Assure quick tabletop positioning, height adjustability, isocentric lateral roll and Trendelenburg motions
• Mushroom-Shaped Control – Ergonomic, for free-float motion
• Table Base – Encased in stainless steel, easy to clean
• Hand and Foot-Operated Controllers – Ensure quick and safe tabletop positioning
• Patient Capacity – 500 lb
• Low Profile Base – For unrestricted C-arm movement
• Accessory Rails
• AC and Battery Power – Standard

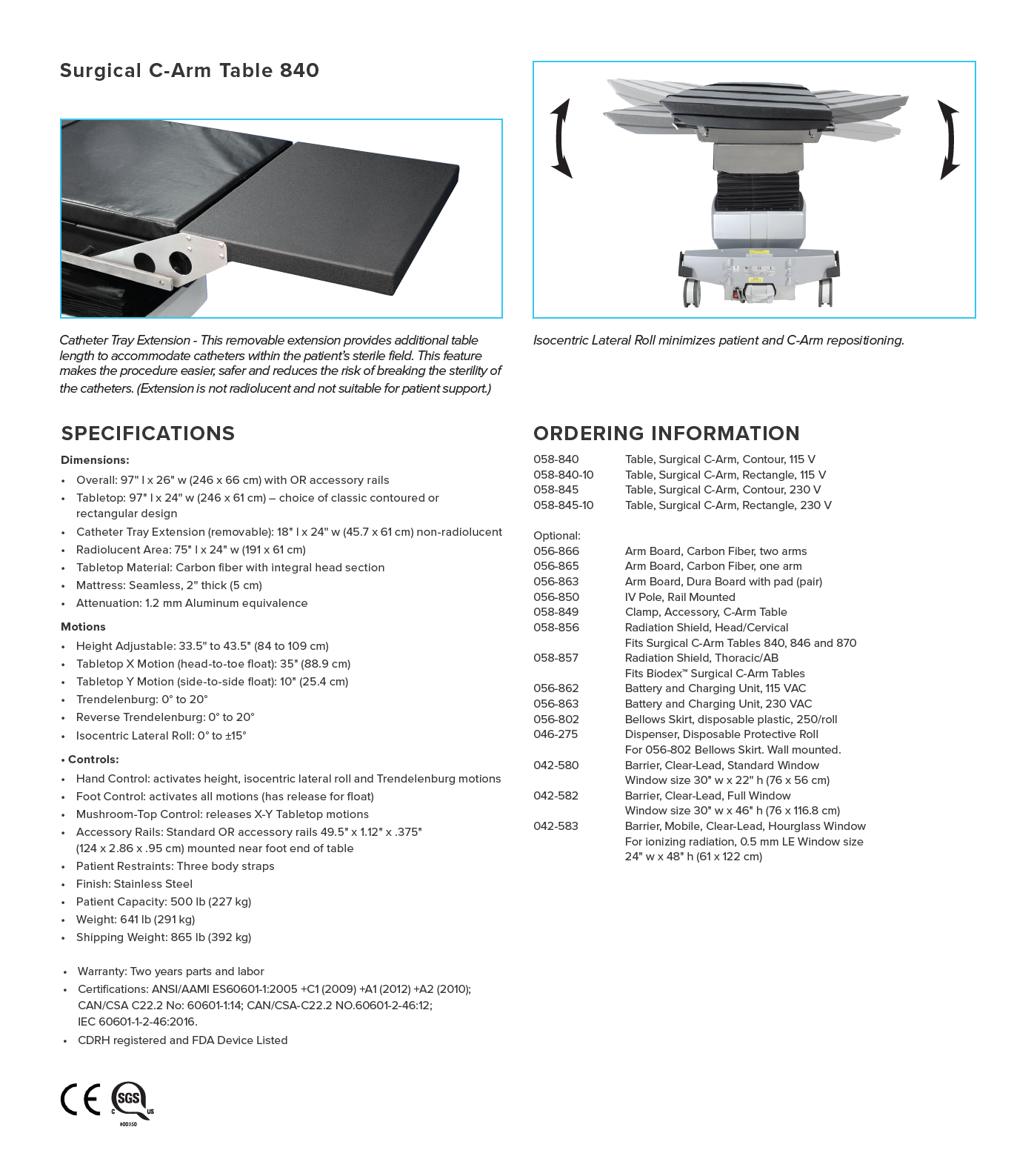

SPECIFICATIONS:

• Dimensions:
• Overall: 97" L x 26" W with OR accessory rails
• Tabletop: 97" L x 24" W
• Catheter Tray Extension (removable): 18" L x 24" W non-radiolucent


• Radiolucent Area:
• 75" L x 24" W
• Tabletop Material: Carbon fiber with integral head section
• Mattress: Seamless, 2" thick
• Attenuation: 1.2 mm Aluminum equivalence
• Motions:
  • Height Adjustable: 33.5" to 43.5"
  • Tabletop X Motion (head-to-toe float): 35"
  • Tabletop Y Motion (side-to-side float): 10"
  • Trendelenburg: 0° to 20°
  • Reverse Trendelenburg: 0° to 20°
  • Isocentric Lateral Roll: 0° to ±15°


• Controls:
• Hand Control: activates height, isocentric lateral roll and Trendelenburg motions
• Foot Control: activates all motions (has release for float)
• Mushroom-Top Control: releases X-Y Tabletop motions


• Foot End: 5" swivel casters with central locking
• Accessory Rails: Standard OR accessory rails 49.5" x 1.12" x .375" mounted near foot end of table
• Patient Restraints: Three body straps
• Finish: Stainless Steel
• Patient Capacity: 500 lbs.
• Weight: 641 lbs.
• Power: 115 VAC and battery. Battery automatically charges when table is plugged in. An optional battery with separate charging unit provides continuous, cordless operation.
• Certifications: ANSI/AAMI ES60601-1:2005 +C1 (2009) +A1 (2012) +A2 (2010); CAN/CSA C22.2 No: 60601-1:14; CAN/CSA-C22.2 NO. 60601-2-46:12; IEC 60601-1-2-46:2016
• CDRH registered and FDA Device Listed
• Standard Accessory: Catheter Tray Extension - this removable extension provides additional table length to accommodate catheters within the patient's sterile field. This feature makes the procedure easier, safer and reduces the risk of breaking the sterility of the catheters. Catheter Tray Extension is not radiolucent and not suitable for patient support. Should not be used for bariatric patients who weigh more than 500 lbs.
